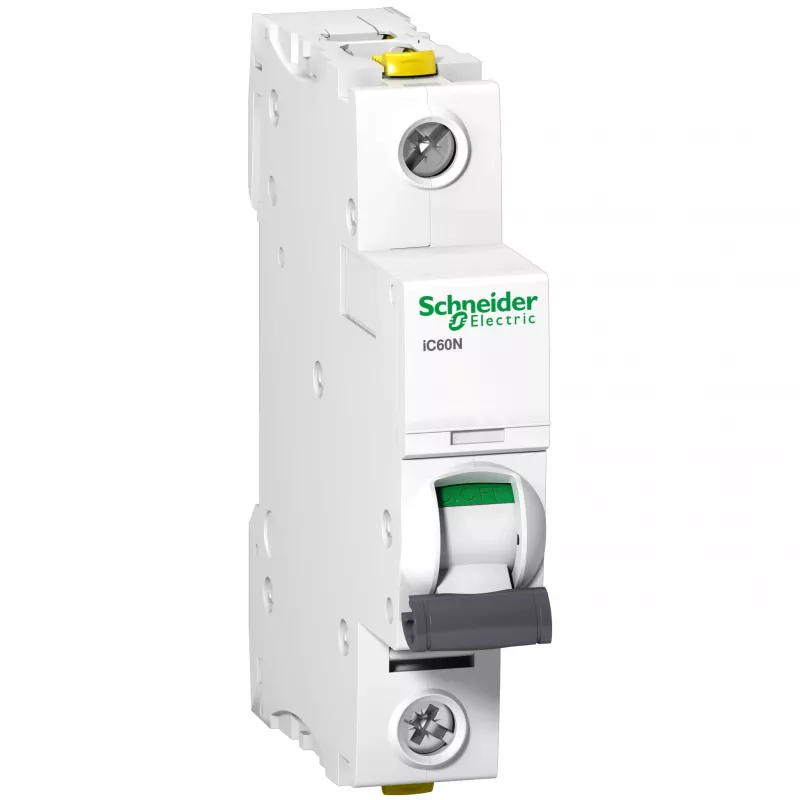

Schneider Electric A9F04116 Acti9 iC60N disjuntor 16A curva C 10kA 1P

The Schneider Electric A9F04116 is a high-performance miniature circuit breaker (MCB) from the Acti9 iC60N series, designed for reliable protection of electrical circuits against overloads and short circuits. With a rated current of 16 A and a C tripping curve, it is ideal for general-purpose applications in residential, commercial, and industrial installations. This 1-pole breaker offers a breaking capacity of 10 kA at 230 V AC, ensuring robust performance under fault conditions.

Advantages

Compact design for DIN rail mounting, easy installation with tunnel type terminals, high electrical and mechanical durability (10,000/20,000 cycles), and compliance with international standards EN/IEC 60898-1 and EN/IEC 60947-2.

Suitable for

• Protection of lighting circuits, socket outlets, and small appliances
• Distribution boards in residential and commercial buildings
• Industrial control panels requiring reliable overcurrent protection

Key specifications

• Product Type: Miniature Circuit Breaker (MCB)
• Range: Acti9
• Model Series: iC60N
• Number of Poles: 1P (1 Protected Pole)
• Rated Current (In): 16 A
• Tripping Curve: C
• Breaking Capacity (Icu): 10 kA at 220-240 V AC
• Rated Operational Voltage (Ue): 220-240 V AC, 380-415 V AC, 440 V AC, 12-72 V DC
• Network Type: AC, DC
• Mounting Type: DIN Rail
• IP Protection Rating: IP20
• Electrical Durability: 10000 cycles
• Mechanical Durability: 20000 cycles
• Terminal Type: Tunnel type terminal
• Terminal Capacity: 1...25 mm² (rigid), 1...16 mm² (flexible)
• Standards: EN/IEC 60898-1, EN/IEC 60947-2
• Operating Temperature: -35...70 °C
• Pollution Degree: 3

Recommendations

For optimal protection, ensure the breaker is installed by a qualified electrician and that the system's short-circuit capacity does not exceed the breaker's rating. Pair with compatible Schneider Electric distribution boards and accessories.
