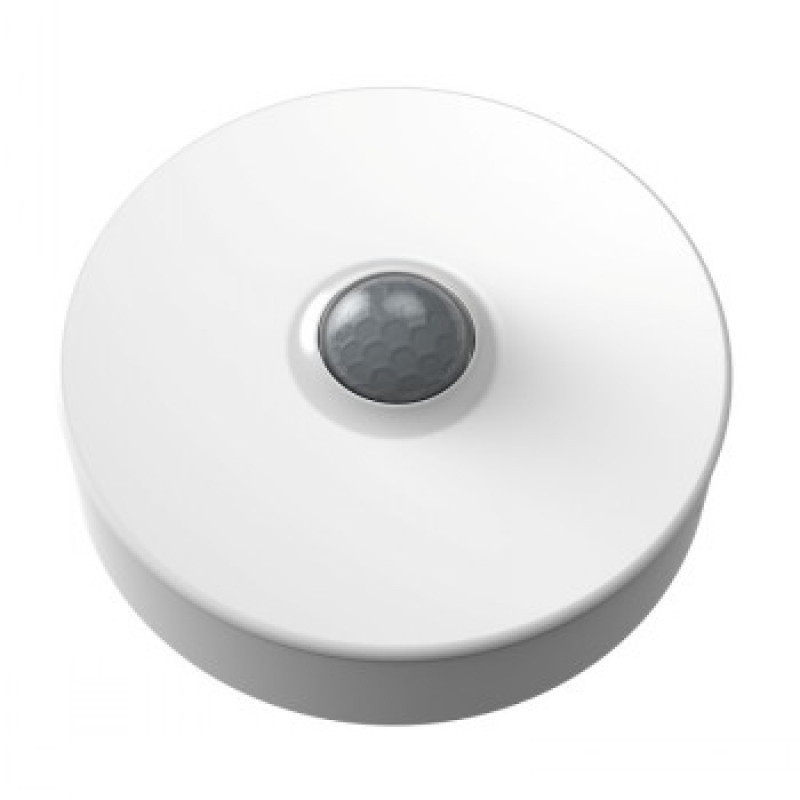

SCHNEIDER ELECTRIC detetor de movimento WISER, montagem no teto

Unlike conventional motion sensors that only watch a narrow corridor, the Wiser Motion Detector CCT595011 watches the whole room from above. Mounted on the ceiling, its 360° lens sees movement in every direction, so a single device can cover an open living area, hallway, or office without blind spots. It pairs natively with the Wiser Home System over Zigbee 3.0, bringing reliable, low‑power presence detection to your smart home.

Highlights

• Full 360° detection angle with up to 8 m diameter coverage at 2.5 m mounting height
• Passive infrared (PIR) sensing with integrated light‑level measurement for smarter automation
• Zigbee 3.0 wireless connectivity on 2.4 GHz for stable, energy‑efficient communication
• Battery‑powered with one CR123A cell, lasting up to 3 years in typical use
• Discreet white polycarbonate housing blends into any ceiling; IP20 for indoor use
• Tamper protection and status LED for easy commissioning and security

In daily use

Installation is straightforward with screws or the included adhesive tape. Once paired with a Wiser Hub, the detector reports motion and ambient light to the Wiser app, enabling automations such as turning on lights when someone enters and off when the room is empty. The light sensor adds context—for example, keeping lights off during daylight even if motion is detected. Because it runs on battery, you can place it exactly where coverage is needed without worrying about wiring.

Full specifications

• Detection technology: Passive Infrared (PIR)
• Connectivity: Zigbee 3.0, 2.4 GHz
• Power source: 1x CR123A battery (included)
• Battery life: up to 3 years (typical)
• Detection angle: 360°
• Detection range: up to 8 m diameter at 2.5 m mounting height
• Mounting: ceiling surface mount (screws or adhesive tape)
• Operating temperature: -5 to 45 °C
• Operating relative humidity: 0–95 % non‑condensing
• IP rating: IP20
• Colour: white
• Housing material: polycarbonate (PC)
• Integrated sensors: motion, light level
• Tamper protection: yes
• Status LED: yes
• Certifications: CE, RCM, Zigbee Certified
• Compatibility: Schneider Electric Wiser Home System (requires Wiser Hub)

Final note

For whole‑room coverage that disappears into the ceiling, the Wiser Motion Detector CCT595011 delivers dependable Zigbee presence sensing with the added intelligence of light measurement—all in a battery‑powered, easy‑to‑install package.
