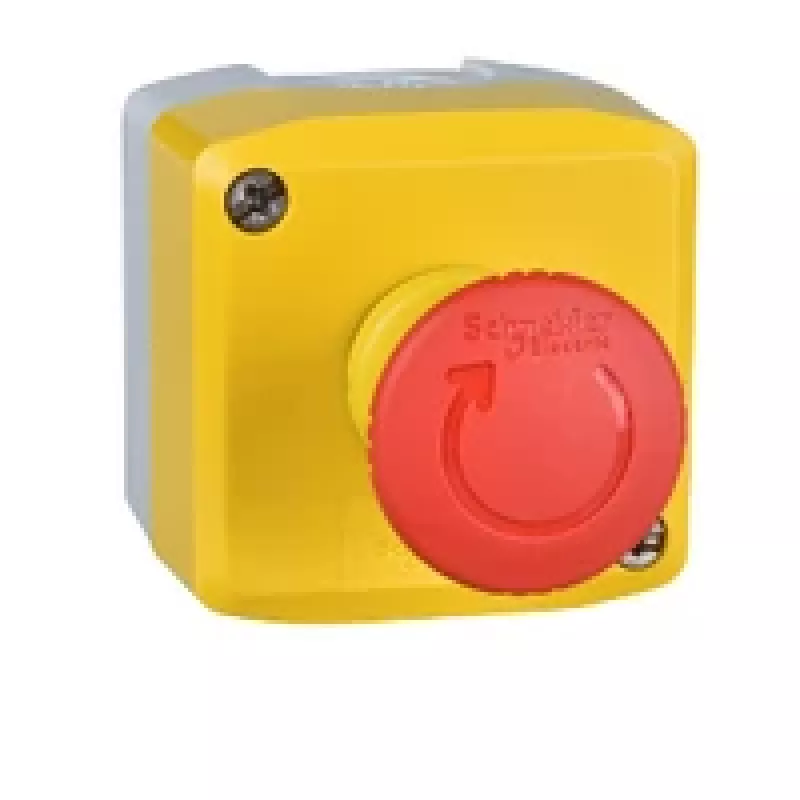

Schneider Electric Harmony XALK Estação de comando completa com botão de cogumelo vermelho

The Schneider Electric Harmony XALK is a robust and reliable complete control station designed for industrial environments. This model features a red mushroom head push button with a 40 mm diameter, providing a clear and intuitive emergency stop function. The enclosure is made of durable polycarbonate with a yellow base and grey cover, offering high visibility and resistance to harsh conditions.

Advantages

With an IP65, IP67, IP69, and IP69K ingress protection rating, the XALK178 is protected against dust, water jets, and high-pressure cleaning, making it suitable for demanding applications such as food processing, chemical plants, and outdoor installations. The 1 NC contact configuration ensures fail-safe operation, and the electrical and mechanical durability of 1,000,000 cycles guarantees long service life.

Suitable for

• Emergency stop applications in industrial machinery
• Control panels in harsh environments
• Food and beverage industry
• Chemical and pharmaceutical plants
• Outdoor and washdown areas

Key specifications

• Product Series: Harmony XALK
• Control Station Type: Complete Control Station
• Number of Push Buttons: 1
• Push Button Type: Mushroom Head
• Push Button Color: Red
• Push Button Diameter: 40 mm
• Contact Configuration: 1 NC (Normally Closed)
• Enclosure Material: Polycarbonate
• Enclosure Color: Yellow (Base), Grey (Cover)
• Ingress Protection: IP65, IP67, IP69, IP69K
• NEMA Rating: NEMA 4X, NEMA 13
• Operating Temperature: -40 to 70 °C
• Rated Insulation Voltage (Ui): 600 V (IEC 60947-1)
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Electrical Durability: 1,000,000 cycles
• Mechanical Durability: 1,000,000 cycles
• Mounting Type: Surface Mounting
• Cable Entry: 2 x Pg 13, 2 x Pg 16 knock-outs
• Standards: IEC 60947-5-1, UL 508, CSA C22.2 No 14
• Shock Resistance: 100 gn (IEC 60068-2-27)

Recommendations

For optimal safety and reliability, pair the XALK178 with compatible Schneider Electric contact blocks and accessories. Ensure proper installation according to the manufacturer's guidelines to maintain the IP rating and performance.
