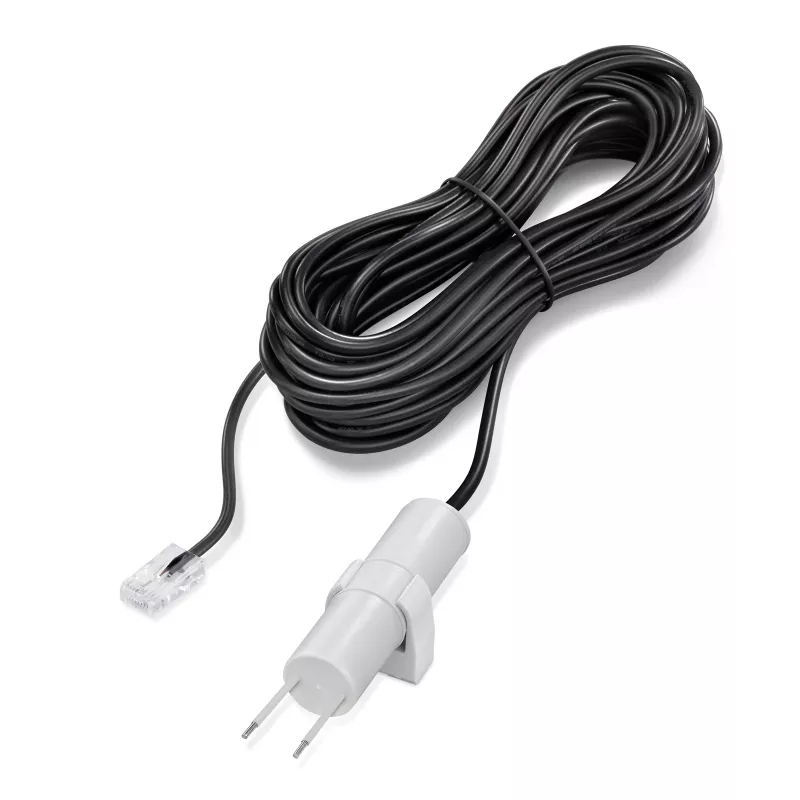

Sensor de água H-Tronic 1114590 WS5030-10, cabo de 10 m, ficha jack de 3,5 mm

The H-Tronic 1114590 WS5030-10 extends water leak detection to hard-to-reach spots with a 10-metre cable, while its IP67 sensor head withstands damp and dusty environments. The conductive sensor reacts immediately to water or other conductive liquids, triggering early warning on compatible H-Tronic detectors.

Highlights

• 10 m connection cable for flexible placement
• Conductive sensor with two electrodes for instant detection
• IP67-rated sensor head resists moisture and dirt
• 3.5 mm jack plug for simple connection to H-Tronic water detectors

In daily use

Place the sensor on the floor or fix it in position near potential leak sources such as washing machines, water heaters, or aquariums. The passive sensor draws power from the connected detector, so no separate supply is needed. Its compact head (40 × 20 × 10 mm) fits into tight spaces, and the cable allows monitoring of distant areas.

Full specifications

• Product Type: Water Sensor
• Sensor Principle: Conductive
• Cable Length: 10 m
• Connector Type: 3.5 mm Jack Plug
• Compatibility: H-Tronic Water Detectors (e.g., WPS 3000, WPS 5000 series)
• Detection Medium: Water and other conductive liquids
• Operating Temperature Range: -15 to +50 °C
• Sensor Head Dimensions (L x W x H): 40 x 20 x 10 mm
• Protection Class (Sensor Head): IP67
• Housing Material (Sensor Head): Plastic
• Application Areas: Basements, laundry rooms, server rooms, heating systems, aquariums, terrariums
• Detection Method: Electrical conductivity measurement between electrodes
• Number of Electrodes: 2
• Installation Type: Floor placement or fixed mounting
• Cable Type: 2-core connection cable
• Power Supply: Passive sensor, powered by connected detection unit
• Response Time: Immediate upon contact with water
• Environmental Resistance: Resistant to dirt and minor impurities
• Function: Early warning system for water leaks
• Usage: Extension or replacement sensor for H-Tronic water detectors

Final note

The WS5030-10 is a reliable extension sensor for H-Tronic water detection systems, offering long reach and robust construction for continuous monitoring.
