Sensor de humidade autónomo Brennenstuhl TFS CZ 01 interior sem fios

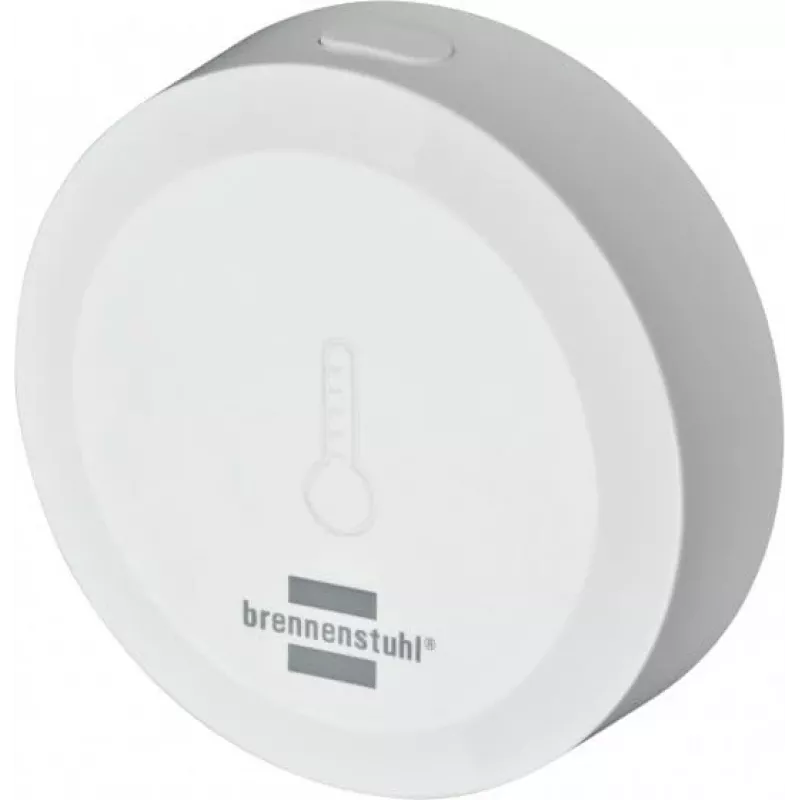

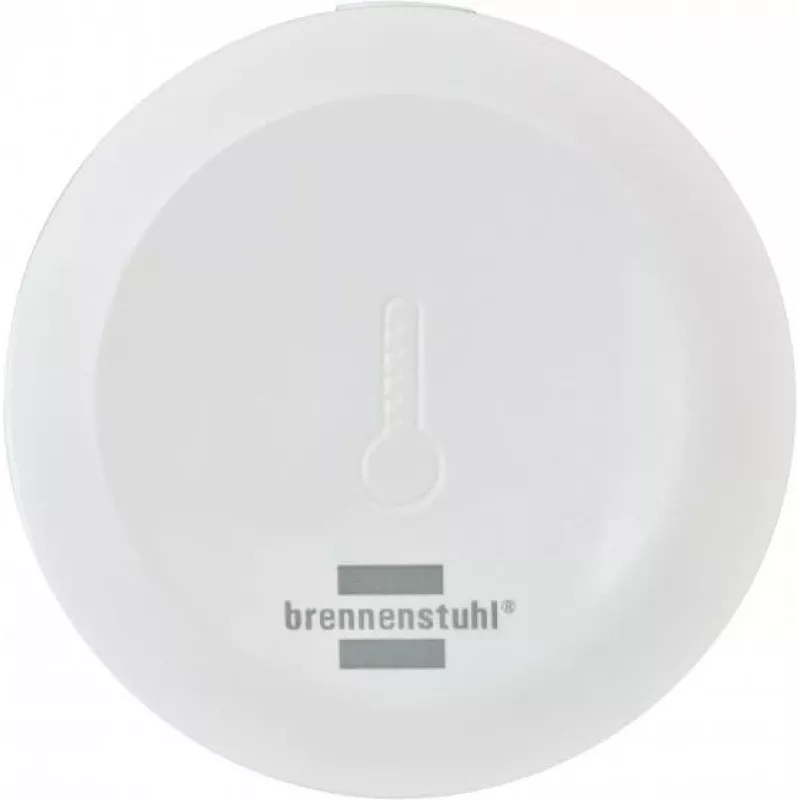

The brennenstuhl®Connect Zigbee temperature and humidity sensor TFS CZ 01 is a compact freestanding indoor sensor for continuous monitoring of temperature and relative humidity. It connects via Zigbee to the brennenstuhl®Connect ecosystem and transmits measurement data to the free brennenstuhl®Connect app for worldwide access. The sensor can be linked with other brennenstuhl®Connect devices (for example smart WiFi power strips) to trigger actions such as switching on a dehumidifier at predefined threshold values. A CR2450 battery and an adhesive pad are included.

Advantages

Accurate indoor temperature and humidity monitoring combined with Zigbee connectivity enables remote access through the brennenstuhl®Connect app and the possibility to automate other connected devices. The sensor is designed for indoor use, offers a history function for long-term observation of environmental changes, and has an estimated battery life of about one year. Setup requires the brennenstuhl Zigbee Gateway (Art. No. 1294060) and a 2.4 GHz network band selection when pairing.

Suitable for

• Monitoring humidity and temperature in living rooms and bedrooms
• Use in cellars, storage rooms and utility rooms to avoid dampness
• Integration with brennenstuhl®Connect smart power strips to control dehumidifiers or fans
• Long-term indoor climate tracking and data history analysis

Key specifications

• Model: TFS CZ 01
• Connectivity: Zigbee (requires brennenstuhl Zigbee Gateway Art. No. 1294060)
• Radio frequency: 2.4 GHz
• Power supply: CR2450 battery (included)
• Protection: for indoor use
• Dimensions (approx.): 45 mm x 12 mm x 45 mm
• Battery life: approx. 1 year

How to use

Install the CR2450 battery and place the sensor on a flat indoor surface or fix it using the supplied adhesive pad. Add the device to your brennenstuhl®Connect system using the brennenstuhl Zigbee Gateway (Art. No. 1294060) and ensure your gateway is operating on the 2.4 GHz band during pairing. After successful pairing, monitor real-time temperature and humidity values and view historical data via the brennenstuhl®Connect app. To automate other devices, create rules in the app that trigger connected brennenstuhl®Connect power strips or other compatible devices at defined measurement thresholds.

Recommendations

Place the sensor away from direct sunlight, heating sources and open windows or doors to ensure representative indoor measurements. For reliable Zigbee connection, keep the sensor within the recommended range of the brennenstuhl Zigbee Gateway and use the 2.4 GHz WiFi band when pairing.
