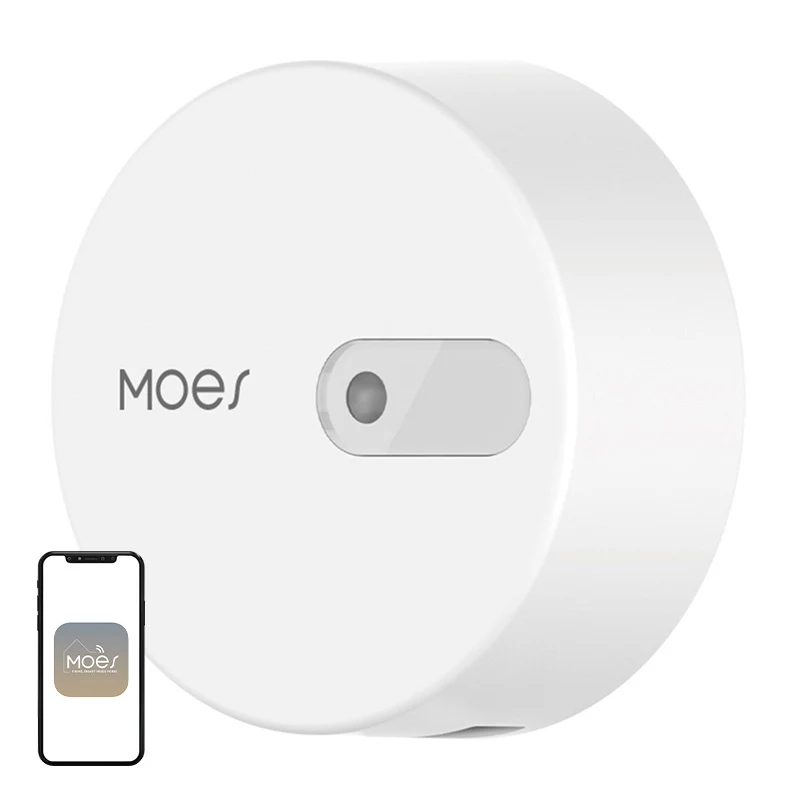

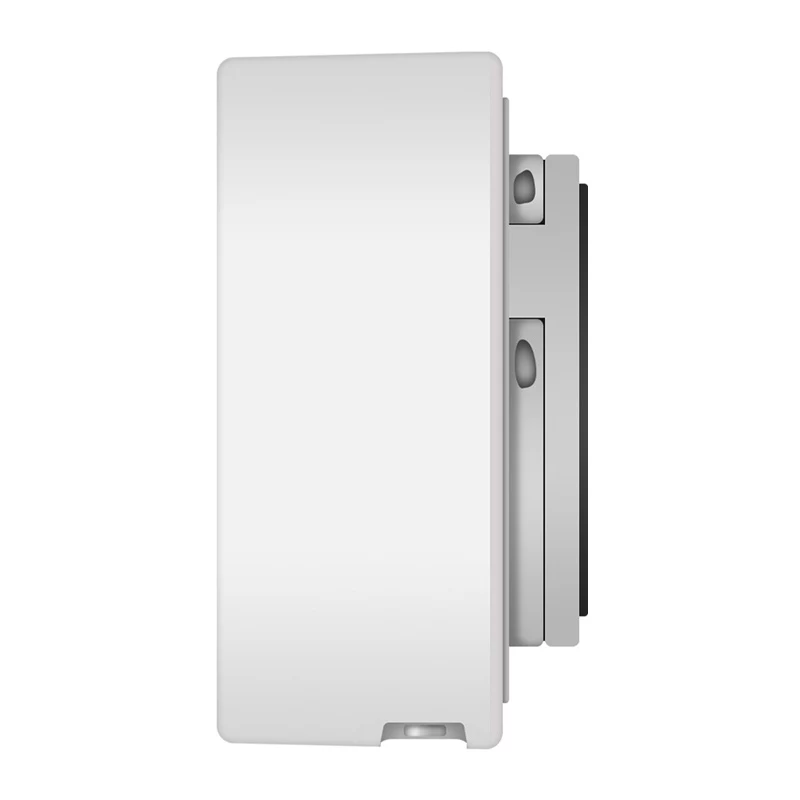

Sensor de presença mmWave ZigBee MOES HP02

The MOES HP02 stands out by using 24GHz mmWave radar instead of a typical PIR sensor, so it detects stationary human presence—not just movement. A person sitting still at a desk or on a sofa is still registered, which makes automations far more reliable.

Highlights

• mmWave radar detects static and dynamic human presence
• ZigBee 3.0 connectivity for low-power, stable smart home integration
• Adjustable detection range from 0.3 to 9 meters
• Wide 120° detection angle
• Built-in light sensor for illuminance-based automations
• Ceiling or wall mountable, ideal at 2.5–3 m height

In daily use

Pair the HP02 with a ZigBee hub and the Tuya Smart or Smart Life app to create presence-based scenes. Use it to keep lights on while someone is in the room, trigger HVAC when occupancy is detected, or combine the light sensor to automate only when it’s dark. Sensitivity is adjustable from levels 1 to 9, so you can fine-tune it for pets or small movements.

Full specifications

• Sensor technology: 24GHz mmWave radar
• Connectivity: ZigBee 3.0
• Detection type: human presence (static and dynamic), motion
• Detection range: 0.3–9 m (adjustable)
• Detection angle: 120°

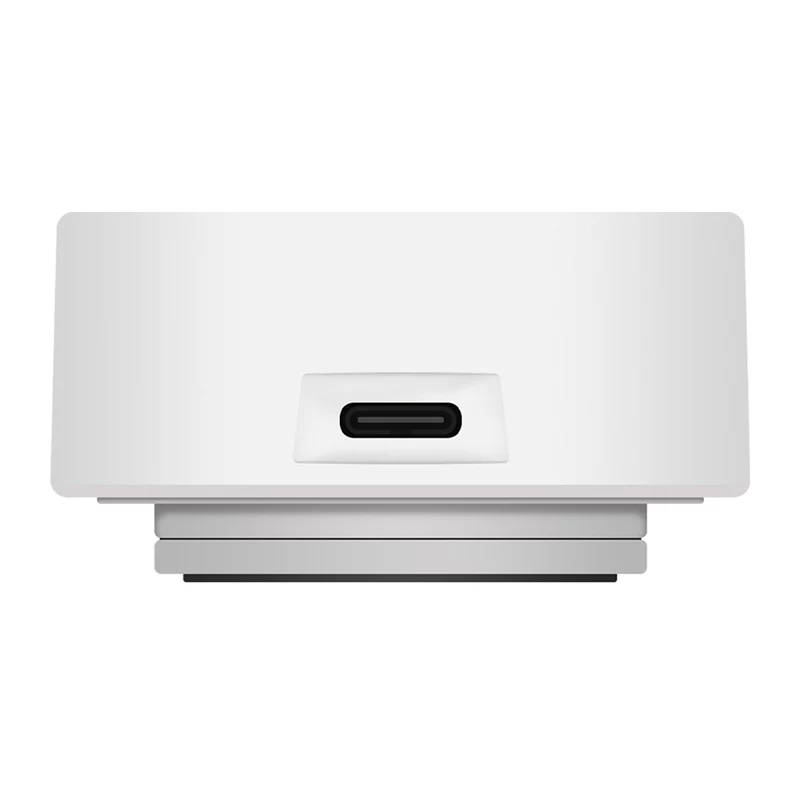

• Power supply: DC 5V/1A (USB-C)
• Additional sensor: light (illuminance)
• Installation: ceiling or wall mount
• Optimal installation height: 2.5–3 m
• Operating temperature: -10°C to 50°C
• Operating humidity: 0%–95% RH (non-condensing)
• Adjustable sensitivity: levels 1–9
• Radar frequency: 24GHz–24.25GHz
• Housing material: ABS
• Colour: white

Final note

A ZigBee hub is required; the HP02 is not a standalone Wi-Fi device.
