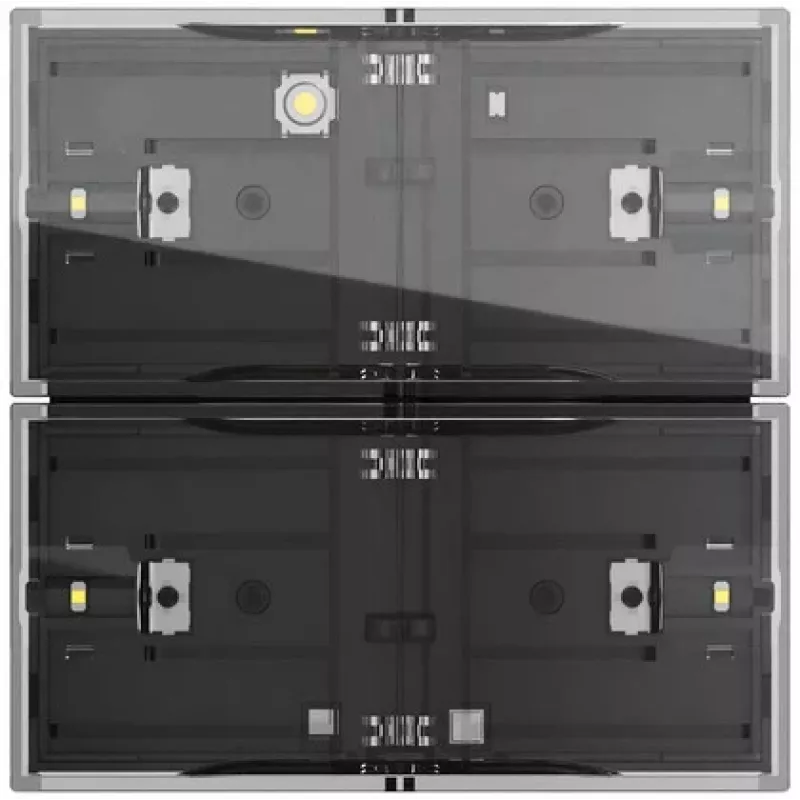

Sensor de toque Gira 4.70 Comfort 2 tomadas One KNX 534200

The Gira Pushbutton Sensor 4.70 Comfort 2-gang One integrates temperature and humidity sensing directly into a flush-mounted KNX device, eliminating the need for separate room sensors. Its two operating surfaces can be assigned to switching, dimming, blind control, value transmission, scene recall, or logic functions, with multi-color status LEDs and haptic feedback for clear operation.

Highlights

• Two configurable operating surfaces with multi-color status LEDs (red/green/blue)
• Integrated temperature and humidity sensors for room climate monitoring
• Supports switching, dimming, blind control, value transmitter, scene recall, and logic functions
• Haptic feedback confirms every button press
• Integrated orientation light for easy location in the dark
• Compatible with Gira System 55, E2, E3, Event, Esprit, and F100 design lines (rocker and frame sold separately)

In daily use

Configured with ETS version 5.7 or higher, the sensor adapts to a wide range of building automation tasks. Its flush-mounted design fits standard boxes, and the neutral module colour blends with any chosen rocker and frame. Blocking functions, alarm functions, and fan control extend its utility beyond simple pushbutton operation.

Full specifications

• System: KNX
• Type: Push-button Sensor
• Number of operating surfaces: 2
• Integrated sensors: Temperature, Humidity
• Functions: Switching, Dimming, Blind Control, Value Transmitter, Scene Recall, Logic Functions
• Feedback: Multi-color status LEDs (red/green/blue) per operating surface, Haptic feedback
• Mounting type: Flush-mounted (requires standard flush-mounted box)
• Power supply: KNX Bus Voltage (21-30V DC)
• Configuration: ETS (Engineering Tool Software) version 5.7 or higher
• Operating temperature: 0 °C to +45 °C
• Protection class: IP20
• Material: Thermoplastic (PC)
• Design line compatibility: Gira System 55, E2, E3, Event, Esprit, F100 (requires separate rocker and frame)
• Additional features: Integrated orientation light, Blocking functions, Alarm functions, Fan control
• Colour (module): Neutral

Final note

For a complete installation, pair this module with a compatible Gira rocker and frame from your chosen design line.
