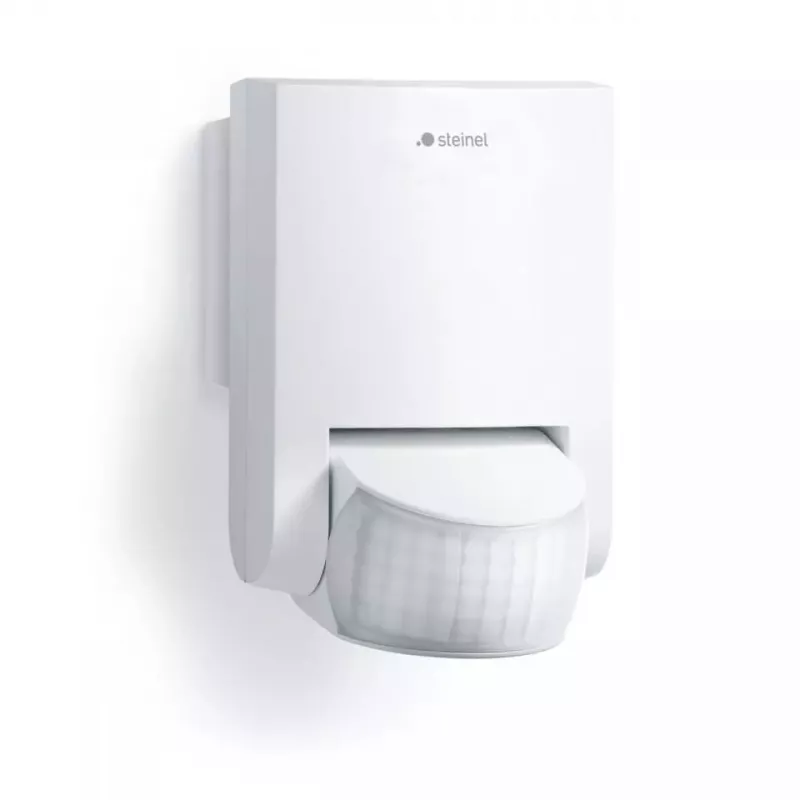

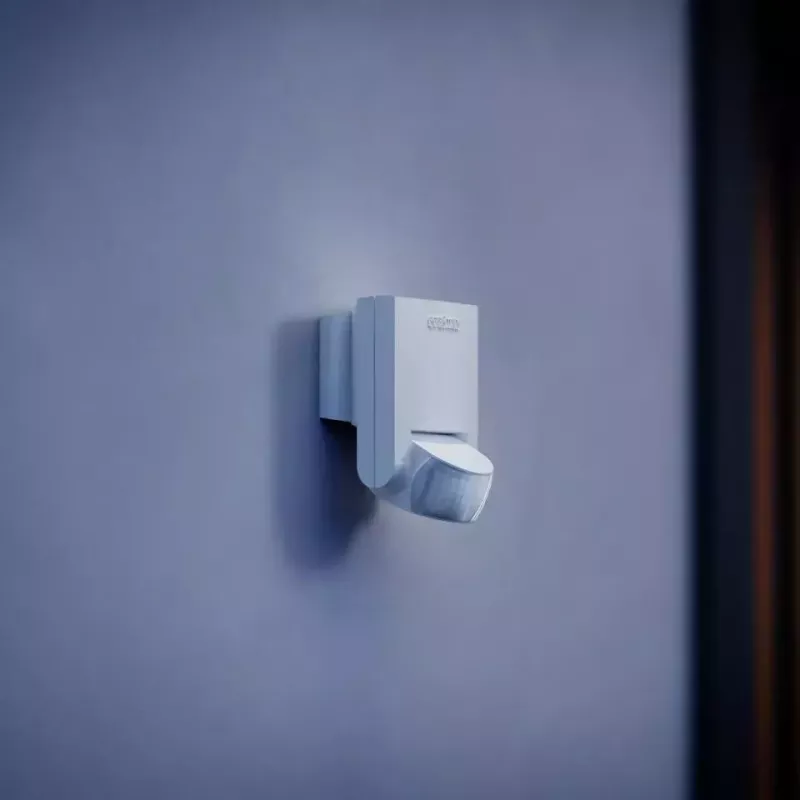

Sensor infravermelho passivo STEINEL IS 130-2 com fios parede branco

The STEINEL IS 130-2 Wired Wall White is a compact passive infrared motion sensor for indoor and outdoor wall mounting. It offers precise detection up to 12 metres and runs on 230–240 V AC power. The low-profile design (78 mm × 87 mm × 110 mm) is suitable for monitoring approaches, driveways and entrance areas where targeted detection and reliable operation are required.

Advantages

The IS 130-2 combines a refined, compact housing with optimised detection electronics to deliver reliable presence and motion detection. It provides precise, adjustable detection patterns for targeted monitoring, quick and straightforward wired installation, and robust operation suitable for exterior conditions. The sensor has been continuously improved in design and technology while remaining easy to configure for site-specific requirements.

Suitable for

• Monitoring building approaches and driveways
• Detecting motion at entrances and passageways
• Outdoor and indoor wall-mounted security and automation tasks

Key specifications

• Detection principle: Passive infrared (PIR)
• Detection range: up to 12 m
• Power supply: 230–240 V AC
• Mounting: wall-mounted
• Dimensions (W × D × H): 78 × 87 × 110 mm
• Manufacturer: Steinel, MPN 660314, EAN 4007841660314

How to use

Mount the wired sensor on a suitable exterior or interior wall at the recommended height and angle so the detection zone covers the area to be monitored. Connect the device to the 230–240 V AC supply following local wiring regulations and the manufacturer's installation instructions. Adjust the sensor orientation and any available sensitivity or range settings to match site conditions for precise detection. Test the sensor after installation to verify coverage and correct operation.

Recommendations

Position the sensor to avoid direct exposure to heat sources or reflective surfaces that may cause false triggers, and configure detection sensitivity to balance coverage and immunity to small animals or traffic outside the monitored area.
