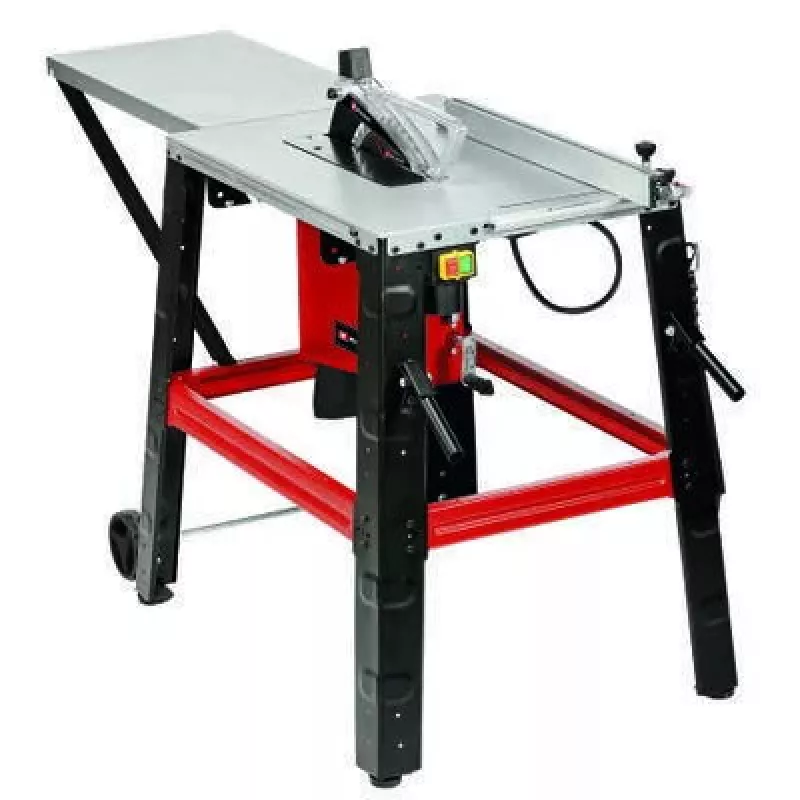

Serra de bancada Einhell TC-TS 315 U

The Einhell TC-TS 315 U stands out from typical compact table saws by pairing a robust 1800 W induction motor with a full-size 315 mm blade, delivering up to 85 mm cutting depth at 90° — enough for thick beams and laminated panels. Its extended table and long aluminium guide rail enable miter cuts from -60° to +60°, while the integrated wheels and handles make it surprisingly mobile for a stationary machine.

Highlights

• Powerful 1800 W motor with overload protection for continuous workshop use
• Large 315 mm blade with 30 mm bore and 48 teeth for clean cuts
• Max cutting height: 85 mm at 90°, 65 mm at 45° bevel
• Table extensions on both sides increase support for long workpieces

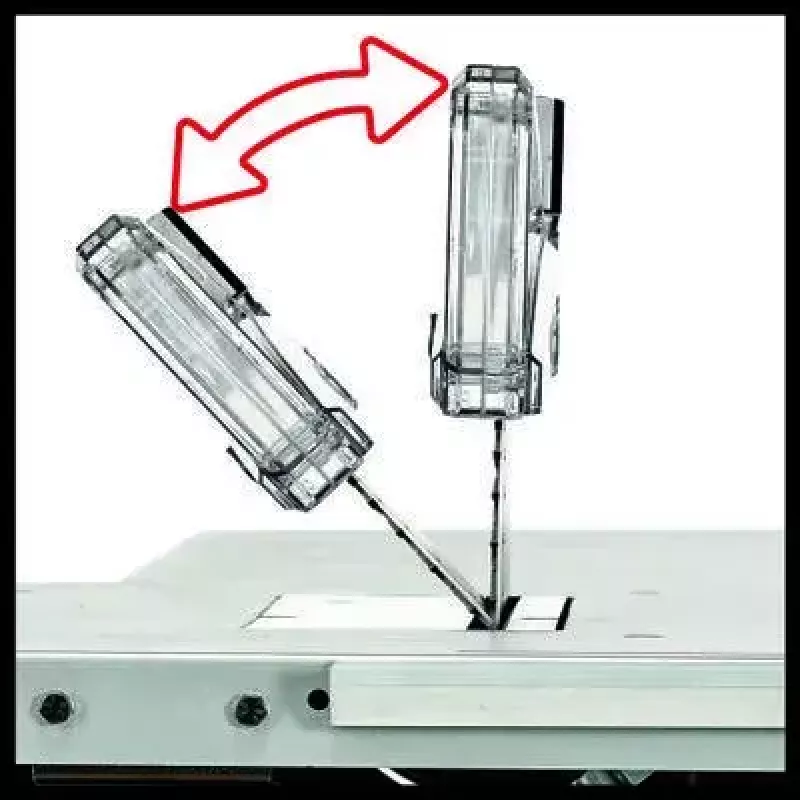

• Transparent blade guard for clear view of the cutting line
• Dust extraction port (100 mm) for a cleaner work environment

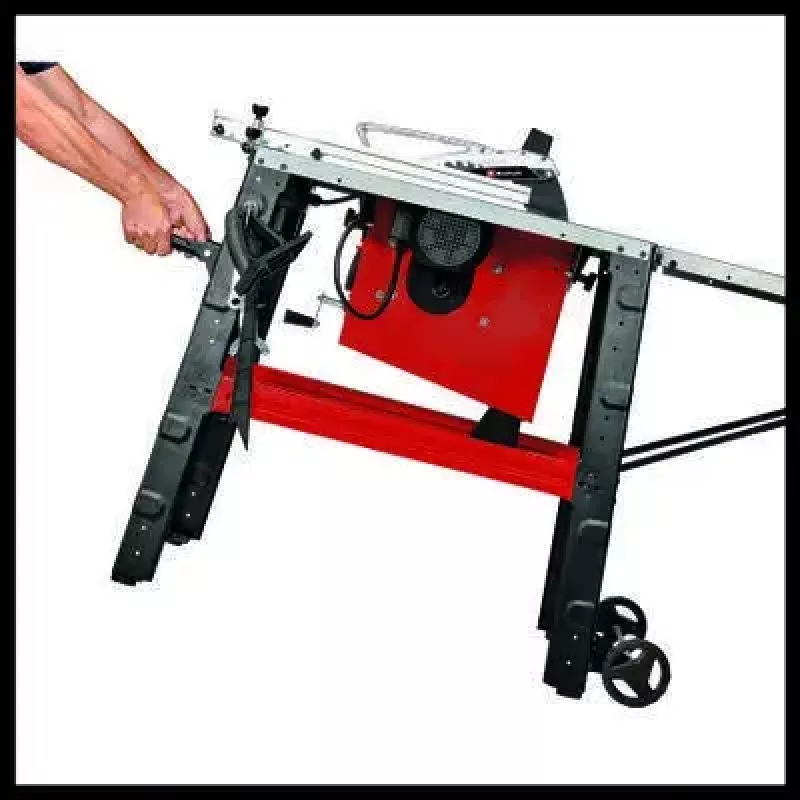

• Integrated wheels and transport handles for easy relocation

In daily use

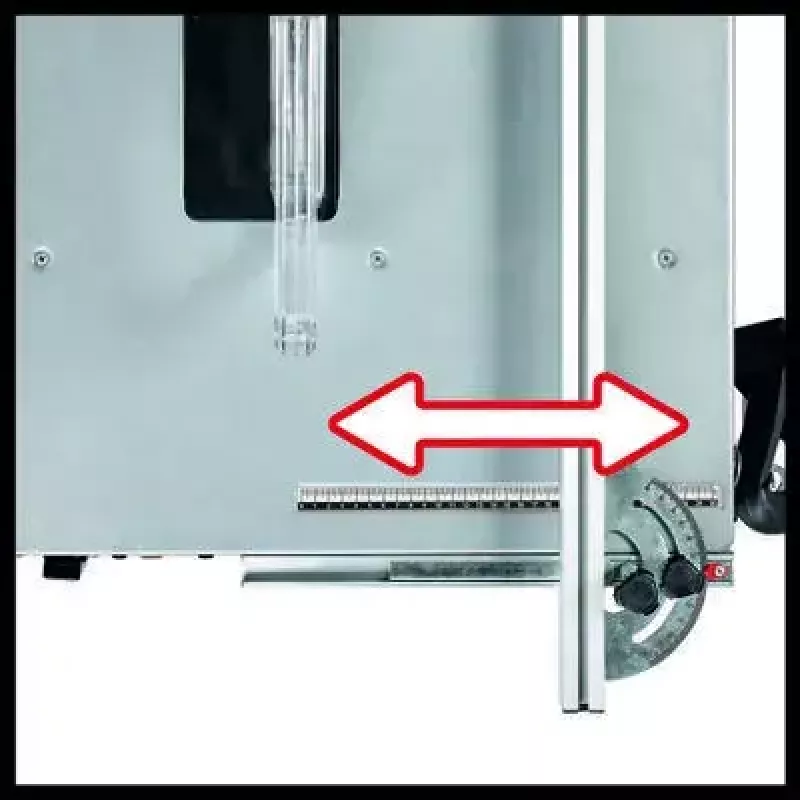

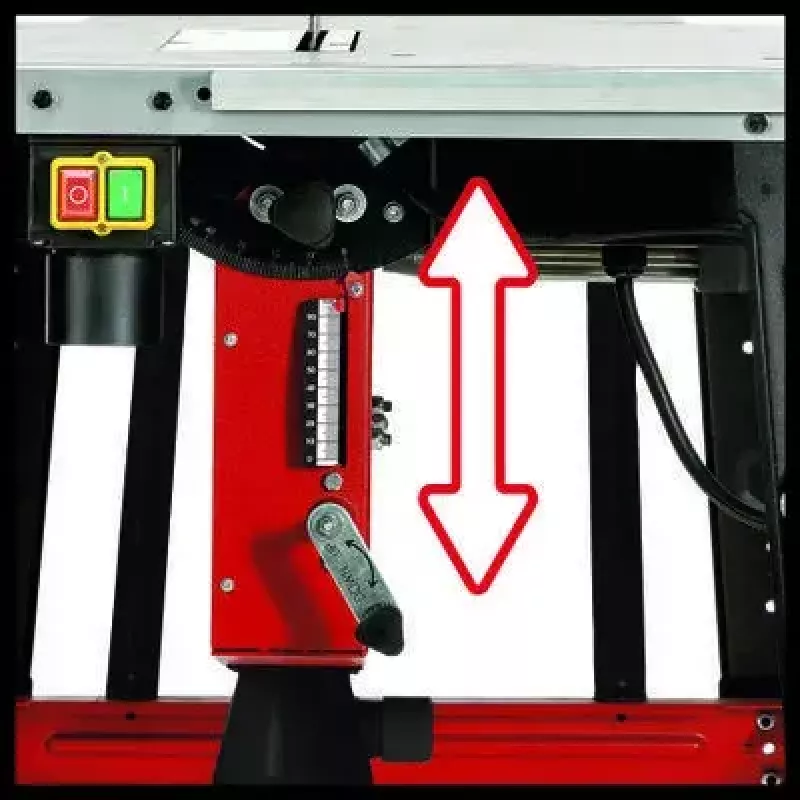

Set up on a stable bench or use the optional base frame. The saw's induction motor runs quietly and smoothly, with a no-load speed of 2800 min⁻¹. Adjust blade height and tilt up to 45° using the front handwheels. The parallel rip fence slides precisely on the rail, and the mitre gauge handles angles from -60° to +60°. A push stick is included for safe handling of narrow stock. The overload switch protects the motor during heavy ripping, and the dust port connects to standard 100 mm extraction hoses.

Full specifications

• Rated power: 1800 W (S1), 2200 W (S6 40%)
• Voltage: 220-240 V, 50 Hz
• No-load speed: 2800 min⁻¹
• Blade diameter: 315 mm, bore 30 mm, 48 teeth
• Max cutting height at 90°: 85 mm
• Max cutting height at 45°: 65 mm
• Table size: 800 x 550 mm (with extensions)
• Table height: 800 mm
• Swivel range: 0-45°
• Dust extraction port: 100 mm
• Weight: 28.5 kg
• Dimensions (W x D x H): 603 x 740 x 400 mm (compact)

Final note

The Einhell TC-TS 315 U is a versatile and durable table saw that bridges the gap between hobby and professional use, offering precision, power, and portability in one package.
