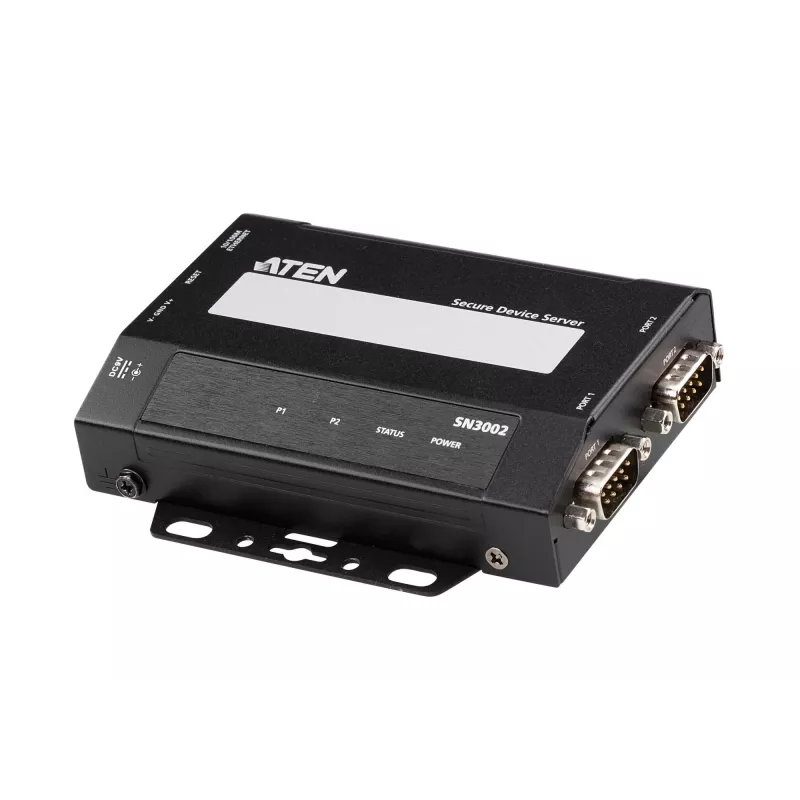

Servidor de dispositivos ATEN 2 portas RS-232 SN3002-AX-G

An easy-to-use, secure, and reliable solution makes it easier to connect a wide range of serial devices to an IP-based Ethernet LAN in an instant. The ATEN SN3002 series Secure Device Servers provide simple, fast serial-to-Ethernet connectivity, allowing your PC to remotely access serial RS-232 devices from a computer located anywhere. With various reliable features, the SN3002 solution is ideal for commercial and industrial process control applications.

Surge and Isolation Protection Ensuring System Stability
Surge protection is a vital aspect of any facility’s coordinated electrical protection to ensure safe and reliable operation. To this end, in addition to 1.5kV magnetic isolation protection for Ethernet signals, the SN3002 series Secure Device Servers feature surge protection for serial, Ethernet, and power that prevent an uncontrolled increase in voltage spikes or current. Furthermore, as well as industrial safety standards compliance, they are also tested to meet IEC 61000-4 surge wave form requirements to ensure system stability and reliability.

Level-up Device Security at Every Stage
Easy Setup with Web Console and Telnet/SSH Console The growing numbers of cyber attacks in the industrial IoT era have the potential to bring down systems and cause huge losses of time and money. In order to avoid potential vulnerability risks, enterprises need a multi-layered defense system to ensure secure data transmissions that include regular firmware upgrades, as well as various encrypted forms of authentication and access control. The SN3002 secure serial-to-Ethernet solutions come with security functions at every stage, including network access control and user authentication, data integrity and confidentiality. Furthermore, with an operation mode available for advanced security functions, you can acquire any field data needed and provide frontline protection.

Comprehensive Secure Operation Modes
The SN3002 series offers a broad choice of operation modes to help different types of serial devices to be seen on the network including Real COM, TCP, Serial Tunneling, Console Management and UDP. With each operation mode SN3002 models are equipped with advanced secure functions to assist users in streamlining operations and ensuring serial data is securely transmitted.

*UDP not features with secure mode.

Easy Setup with Web Console and Telnet/SSH Console
The SN3002 series offers a 3-step setup web console for fast installation. Its browser access is supported via an intuitive web console with multi-language features that facilitate a quick setup and control of the devices in just 3 configuration steps to activate the application. This makes the connection simple and fast, and users can complete the setup in an average of only 1 minute. Moreover, for bandwidth-sensitive applications, a Telnet/SSH console is also available for a low-bandwidth solution.

Easy to Troubleshoot
ATEN understands the seriousness of data loss and breaches. The SN3002 series features a 64 KB port buffering to prevent data loss in case a network is down, and event notifications will be sent automatically by SMTP email and SNMP Trap when the serial devices go offline due to power failure, or trigger a user defined error. Moreover, the system event logs are available to record and track operation history, and can be saved to internal memory or Syslog server, so you can retrieve data for monitoring and troubleshooting at any time.

Target Application
The SN3002 series enables instant networking of serial devices and can be deployed in a variety of commercial applications and industrial process automation environments that require serial-to-Ethernet connectivity. These include POS, access control, SCADA systems, environment monitoring, sensor monitoring, device management, remote site management, and more.

Versatile Mounting Options
The SN3002 series is adaptable to various installation environments and can be flexibly mounted in different ways, so you can easily configure them to your workplace. The mounting options includes on the wall, desktop, DIN rail mounting, or on a rack (with optional kit VE-RMK1U) as required.

ATEN 2-Port RS-232 Secure Device Server. Cabling technology: 10/100Base-T(X). Power source type: DC, Power consumption (max): 0.939 W, Power consumption (typical): 0.769 W. Security algorithms: 802.1x RADIUS, 2048-bit RSA, TLS. LED indicators: Power, Status. Weight: 210 g, Dimensions (WxDxH): 117 x 98 x 26 mm, Package width: 59 mm

How to use

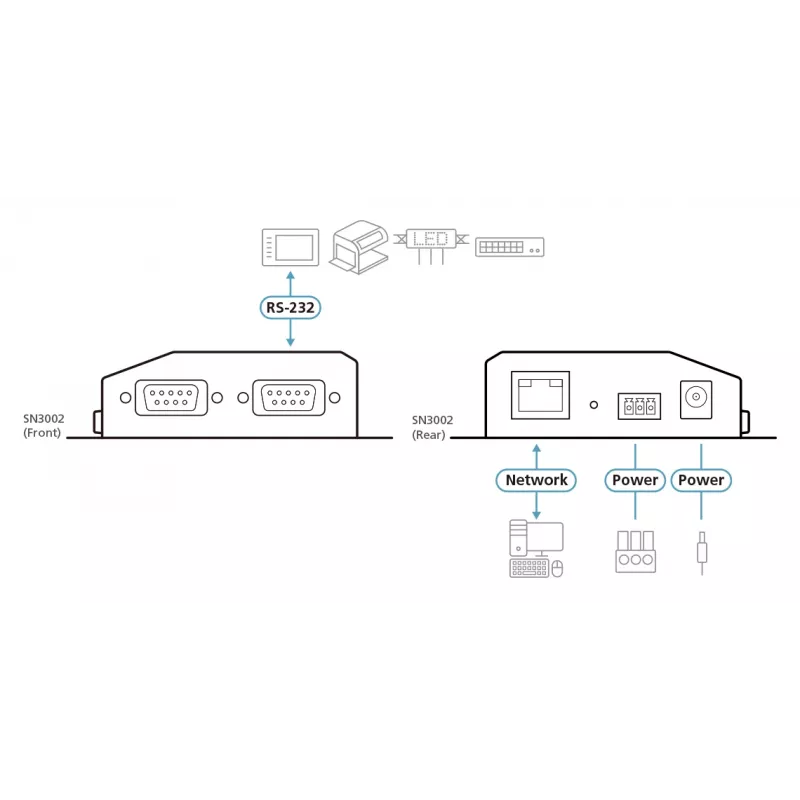

Install the SN3002-AX-G in the chosen location using wall, desktop, DIN-rail, or optional rack mounting. Connect RS-232 serial devices to the serial ports and plug the device into the Ethernet network using 10/100Base-T(X) cabling. Power the unit with the appropriate DC source. Configure the device using the 3-step web console via a browser or, for low-bandwidth environments, use the Telnet/SSH console. Select the required operation mode (Real COM, TCP, Serial Tunneling, Console Management or UDP) and set up authentication and encryption options (802.1x, RSA, TLS) according to your security policy.

Recommendations

For improved reliability, ensure the SN3002-AX-G is installed with proper grounding and follow IEC 61000-4 surge waveform guidelines. Keep firmware up to date, enable secure modes and encrypted authentication, and configure event notifications and system logging to assist with monitoring and troubleshooting.
