Shelly Plus RGBW PM luz inteligente sem fios verde amarelo

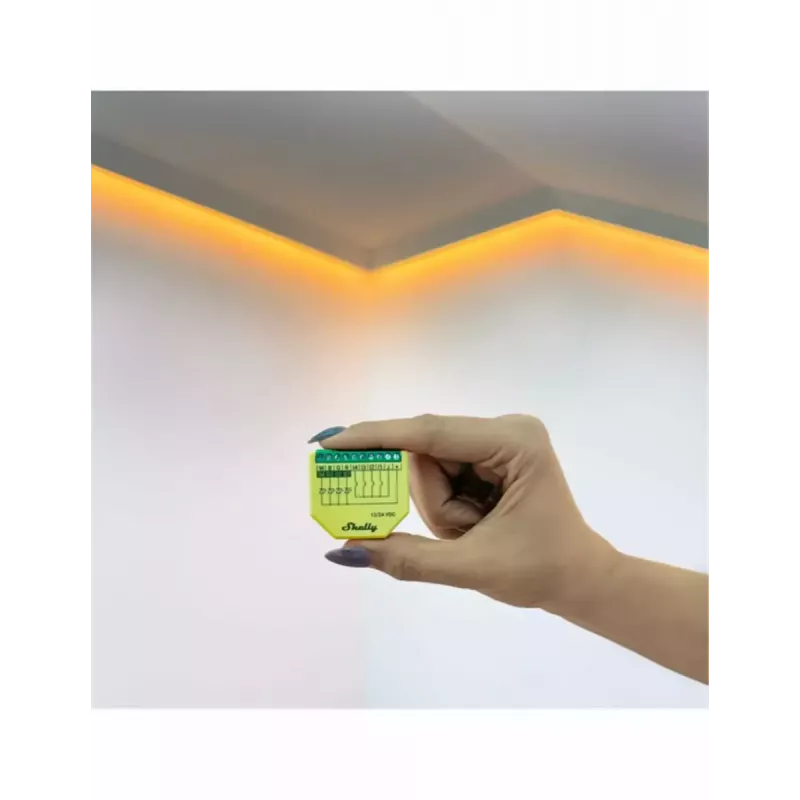

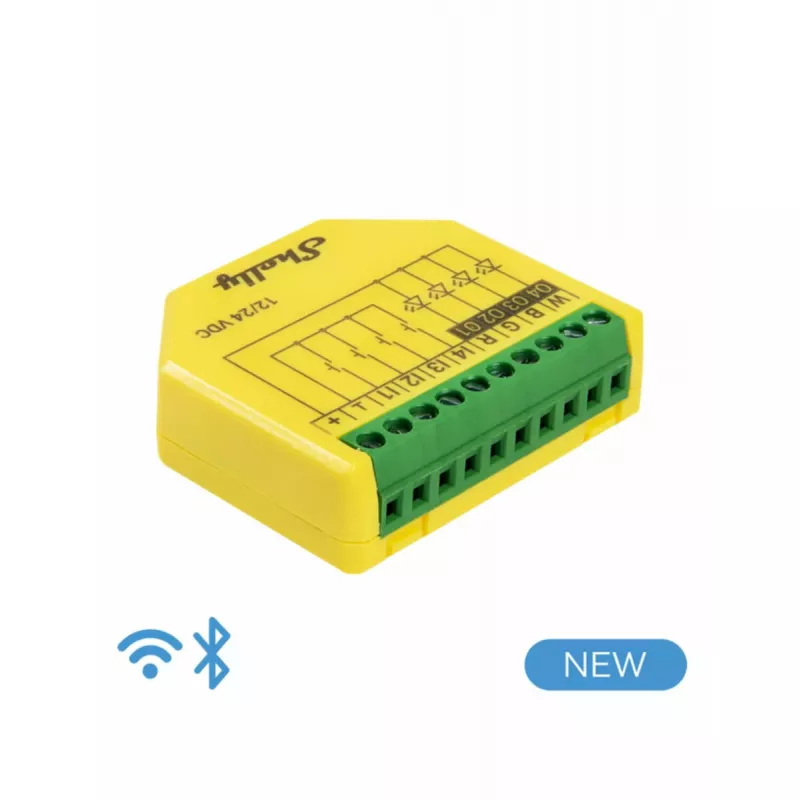

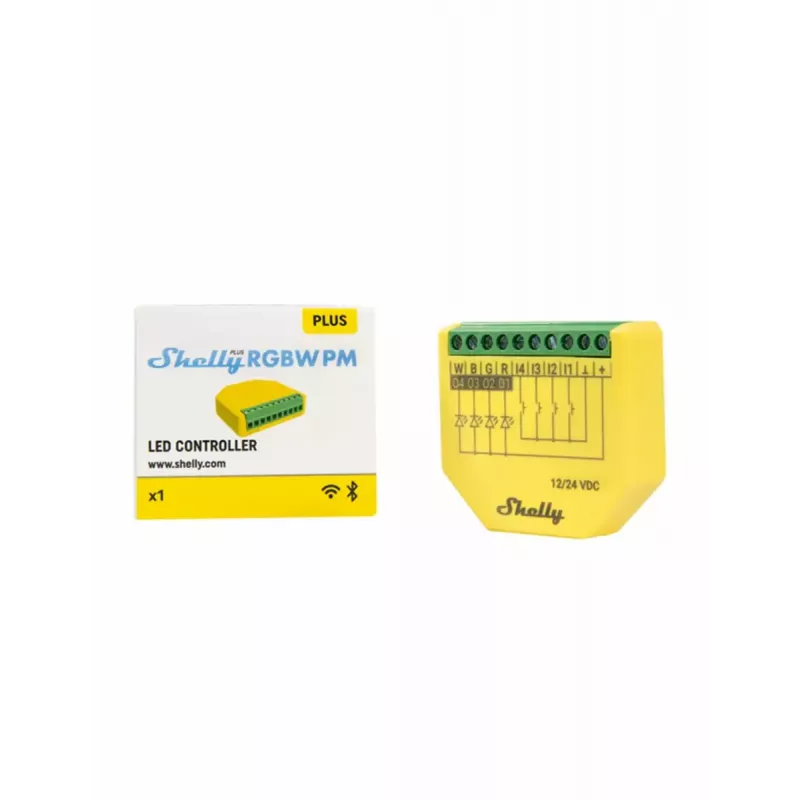

The Shelly Plus RGBW PM is a compact Wi‑Fi operated RGBW controller for LED strips that supports RGBW, RGB and Lights profiles. It accepts 12–24 V DC input and output, measures power consumption in real time, and fits into tight installation spaces thanks to its small dimensions (42 × 37 × 12 mm). This model is offered in configurations emphasizing green and yellow lighting tones and is suitable for residential and commercial ambient lighting projects.

Advantages

The device provides flexible profile-based control for different types of LED strips (Lights, RGB, RGBW), onboard power measurement for energy monitoring, and support for up to four independently controlled channels in Lights profile. It allows color selection from a wide gamut (up to 16 million colors), supports existing wall switches (single, dual or 4-button), and integrates with Shelly ecosystem features such as schedules, scenes and scripting for local custom automations. Full compatibility with Alexa, Google Home, Android and iOS enables voice control and easy smart-home integration.

Suitable for

• Accent and decorative LED strip lighting in living rooms and bedrooms
• Under-cabinet and furniture lighting in kitchens and offices
• Commercial ambient lighting in cafes, shops and reception areas
• Projects requiring energy monitoring of LED installations

Key specifications

• Model: Shelly Plus RGBW PM (MPN: Shelly_Plus_RGBW_PM)
• EAN: 3800235265635
• Input / output voltage: 12–24 V DC
• Control: Wi‑Fi (compatible with Alexa, Google Home, Android, iOS)
• Profiles: Lights, RGB, RGBW
• Channels: up to 4 independent channels (Lights profile)
• Power measurement: real‑time energy monitoring
• Dimensions: 42 × 37 × 12 mm

How to use

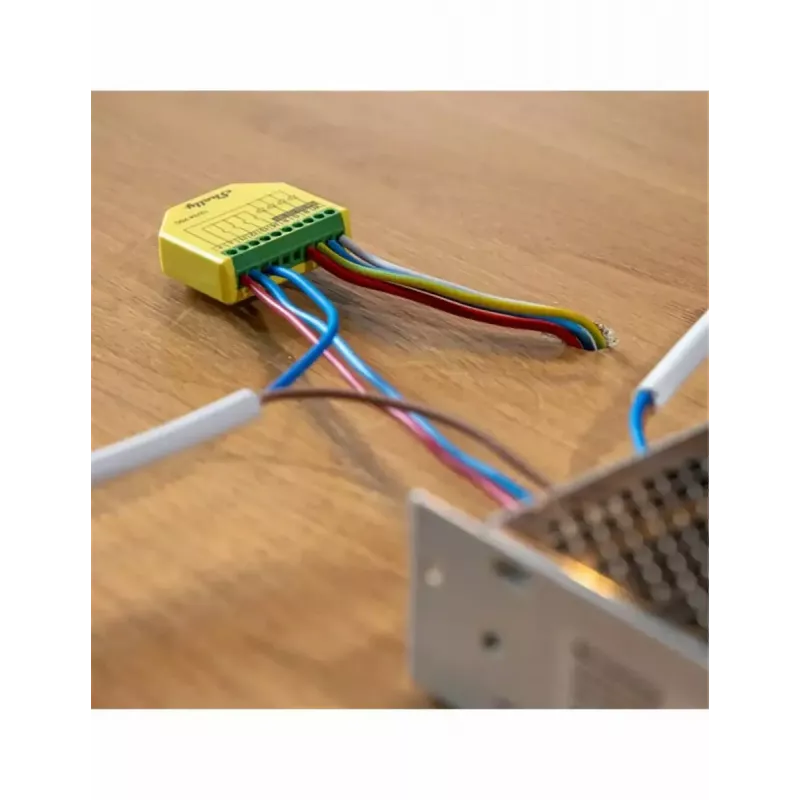

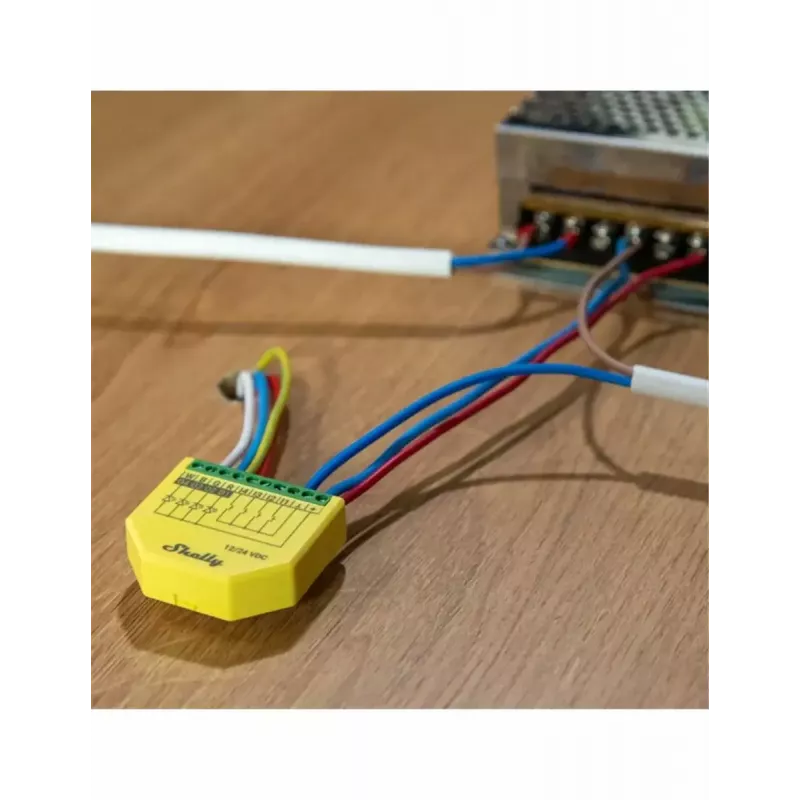

Connect the controller to a 12–24 V DC supply and wire the LED strip outputs according to the selected profile (Lights, RGB or RGBW). Configure Wi‑Fi settings via the Shelly app or local web interface, choose the appropriate profile for your LED type, and assign inputs if you plan to use existing wall switches. Use the app or voice assistant to control colors, brightness and scenes, or implement scripts for local automation and custom behaviors.

Recommendations

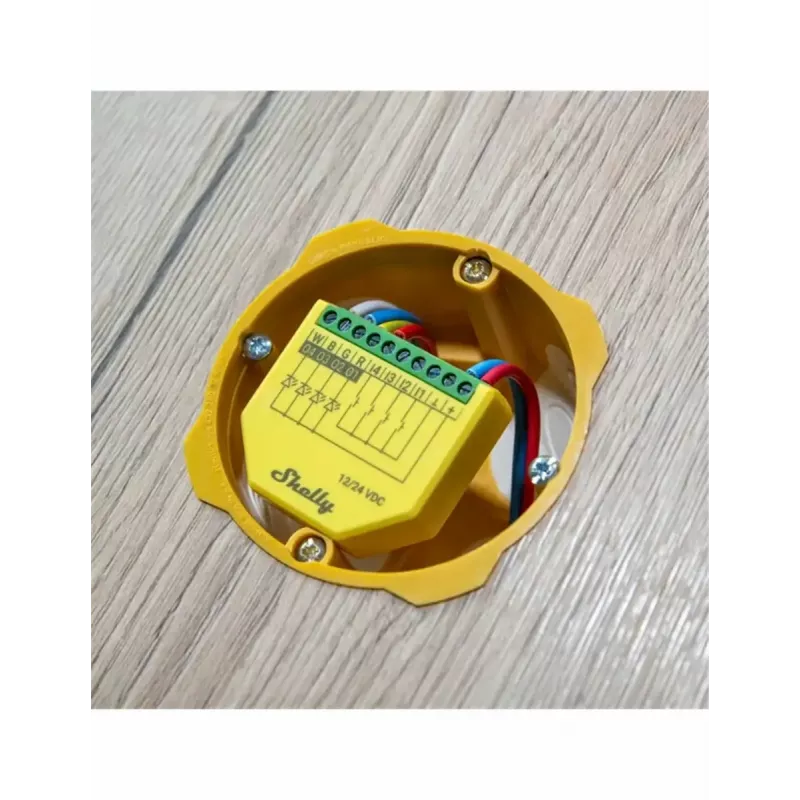

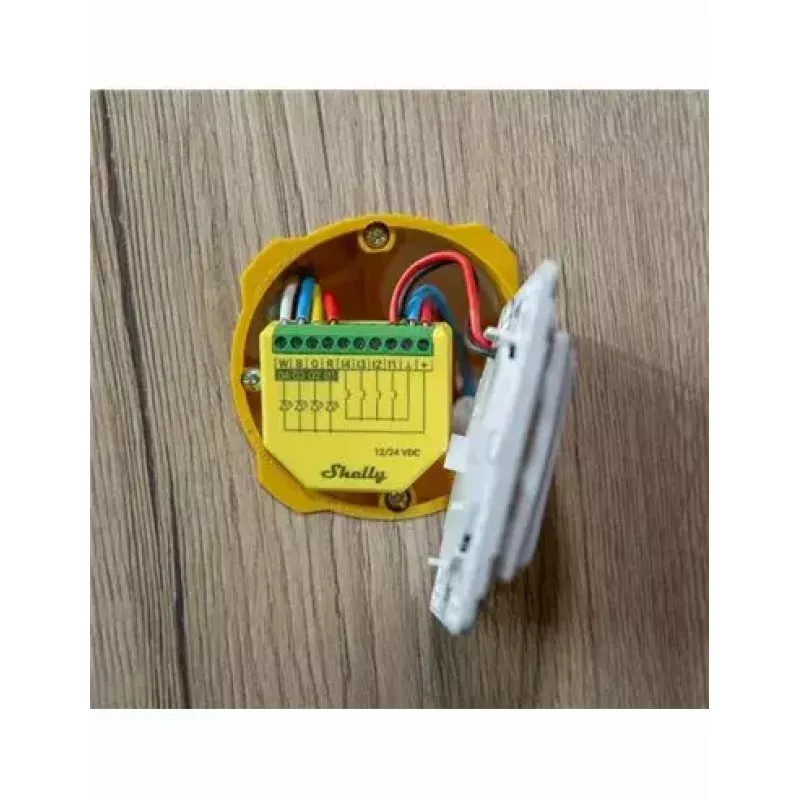

Install the Shelly Plus RGBW PM in a ventilated enclosure and avoid mounting it near heat sources. Verify that the connected LED strips are compatible with the chosen profile and that the total strip load does not exceed the controller’s rated output. For reliable operation, use stable 12–24 V DC power supplies and keep firmware updated via the Shelly app.
