Shield de prototipagem Arduino TSX00083 para Arduino Uno com área de breadboard integrada

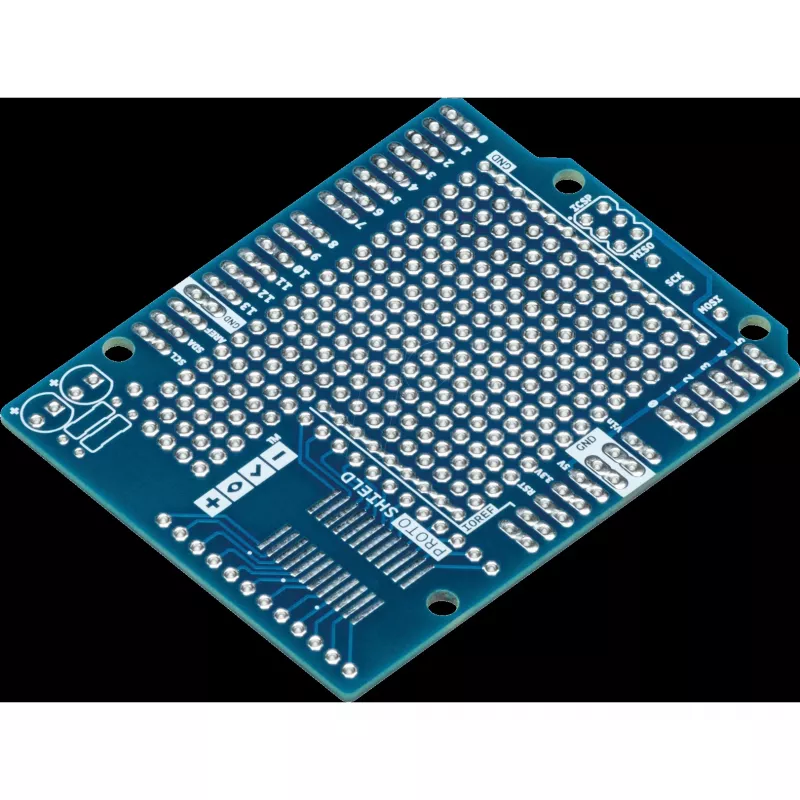

Prototyping Shield Arduino TSX00083 for Arduino Uno with Integrated Breadboard Area is an expansion board that mounts on an Arduino Uno to provide a compact, solderless prototyping surface. The shield includes a small adhesive-style breadboard area and clearly routed access to the Uno's digital and analog pins, allowing components and jumper wires to be placed directly on the shield for rapid circuit assembly and testing. The design is intended to streamline development of sketches and hardware layouts without permanent soldering.

Advantages

The shield provides an immediate, on-board breadboard area that reduces the need for separate breadboards and messy wiring across a workbench. Pin headers are aligned for simple access to Arduino Uno signals, and the compact footprint maintains the Uno's form factor while adding a tidy prototyping surface. This setup enables faster iteration of circuits and easier debugging of sketches by keeping components close to the microcontroller and preserving clear connections.

Suitable for

• Rapid prototyping of sensor and actuator circuits with Arduino Uno
• Educational exercises and classroom demonstrations involving simple electronic builds
• Testing and debugging Arduino sketches with temporary component layouts
• Small-scale breadboarding where desk space is limited

Key specifications

• Form factor compatible with Arduino Uno headers and footprint
• Integrated adhesive-style solderless breadboard area for component placement
• Breakout of digital and analog pins to pin headers for direct wiring
• Compact, low-profile design that stacks on top of the Arduino Uno
• Suitable for through-hole components and jumper wires

How to use

To use the shield, align and press it onto the Arduino Uno header pins so the headers mate securely. Place components and jumper wires into the integrated breadboard area and connect them to the appropriate pin headers corresponding to the Uno's digital and analog pins. Power the Arduino Uno via USB or external supply and upload sketches as usual; the solderless layout allows quick changes to wiring and component placement for iterative testing.

Recommendations

For reliable connections, avoid placing heavy components directly on the adhesive breadboard area and use short jumper wires for signal lines. When testing power-hungry modules, verify the Arduino's power limits and, if necessary, use an external power supply. Keep wiring tidy to reduce noise and make debugging easier.
