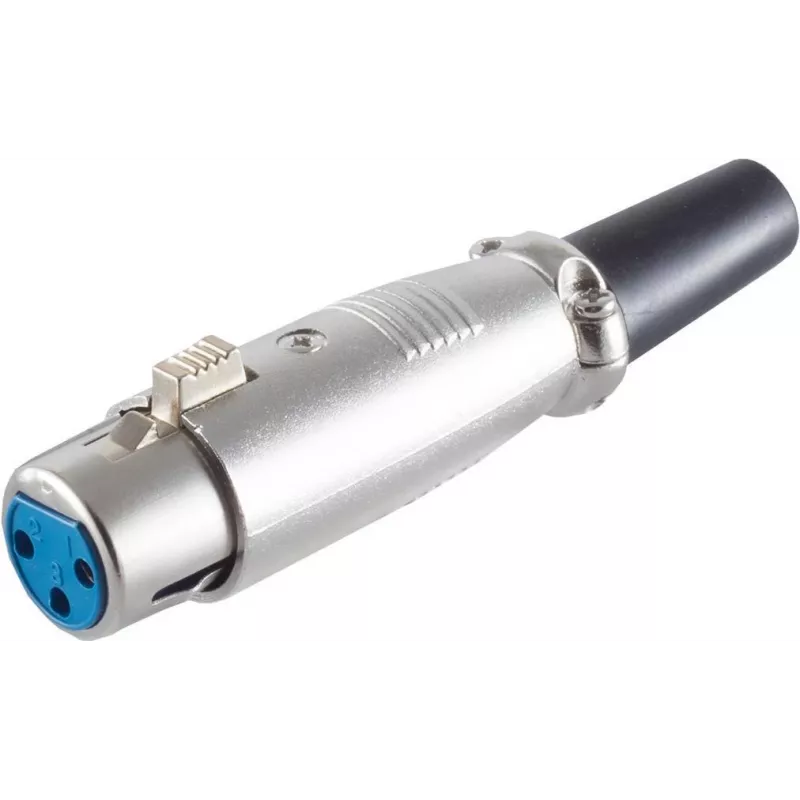

SHIVERPEAKS BASIC-S Conector fêmea XLR, fêmea, com alívio de tensão, 3 pinos, zinco fundido niquelado, ligação por soldadura, BS55020

With a dielectric strength of 1.5 kVDC and insulation resistance exceeding 1 GΩ, this XLR female coupler is built for reliable signal integrity in professional audio setups. The SHIVERPEAKS BASIC-S BS55020 combines a rugged zinc diecast housing with nickel-plated brass contacts to deliver consistent performance over more than 1000 mating cycles.

Overview

The SHIVERPEAKS BASIC-S XLR female coupler is a 3-pin cable-mount connector engineered for secure, low-noise audio connections. Its integrated strain relief protects solder joints from cable pull and flex, accommodating cable diameters from 4 mm to 7 mm. The nickel-plated zinc diecast shell provides excellent shielding and durability, while the nickel-plated brass contacts ensure low contact resistance and corrosion resistance. Suitable for microphones, mixers, and stage equipment, this coupler operates reliably across a wide temperature range from -30°C to +80°C.

What stands out

• Integrated strain relief for enhanced cable retention and longevity
• Nickel-plated zinc diecast housing for superior shielding and mechanical strength
• Nickel-plated brass contacts with >1000 mating cycles durability
• Wide operating temperature range: -30°C to +80°C
• High insulation resistance (>1 GΩ) and dielectric strength (1.5 kVDC)
• Compatible with cable diameters 4 mm to 7 mm

Technical details

• Connector type: XLR, 3-pin, female
• Mounting type: Cable mount
• Termination method: Solder
• Housing material: Zinc diecast, nickel-plated
• Contact material: Brass, nickel-plated
• Rated current per contact: 5 A
• Rated voltage: < 50 V
• Insulation resistance: > 1 GΩ
• Dielectric strength: 1.5 kVDC
• Mating cycles: > 1000
• Operating temperature: -30°C to +80°C
• Series: BASIC-S
• Colour: Silver

Our verdict

For installers and audio professionals who demand dependable XLR connections, the SHIVERPEAKS BASIC-S BS55020 delivers robust build quality and consistent electrical performance. Its integrated strain relief and high mating cycle rating make it a smart choice for both fixed installations and portable rigs.
