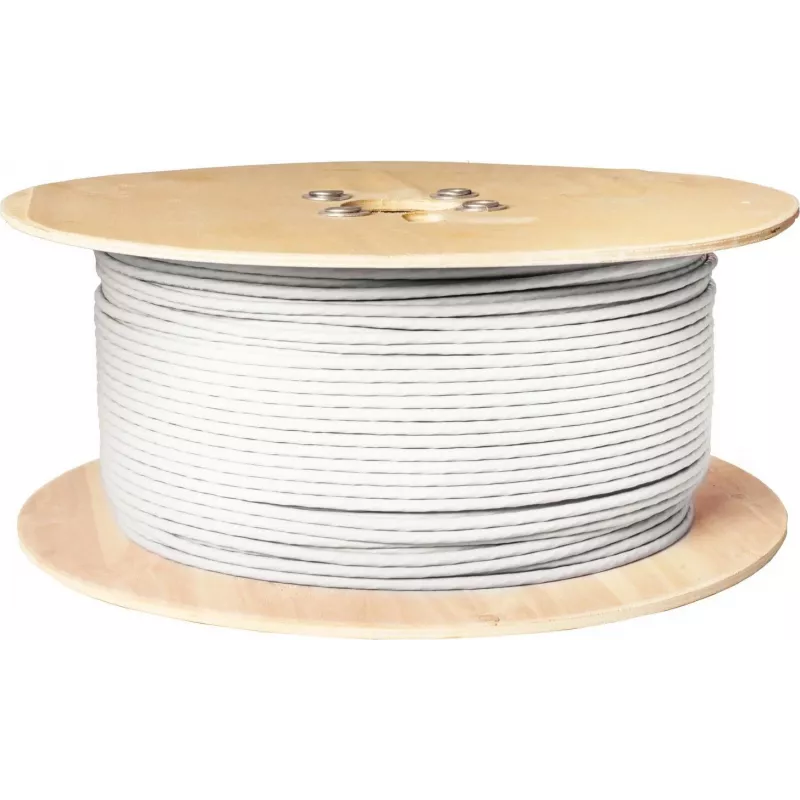

SHIVERPEAKS Cabo coaxial SAT 1,0/4,6, blindagem quádrupla, CCS, >110 dB, 500 m, branco BS15-40005006

For installers who refuse to compromise on signal integrity, this SHIVERPEAKS SAT coaxial cable delivers a quad-shielded design with screening efficiency exceeding 110 dB. The 1.0/4.6 construction pairs a copper-clad steel inner conductor with foamed polyethylene dielectric, ensuring stable 75 Ohm impedance across the entire 500-metre spool. Unlike thinner alternatives, the robust 7.0 mm PVC jacket withstands demanding installation environments while maintaining flexibility for routing through conduits and cable trays.

Highlights

• Quad-shielded (4-fold) for superior noise rejection
• Copper-clad steel (CCS) inner conductor, 1.0 mm diameter
• Foamed PE dielectric, 4.6 mm diameter
• High screening efficiency: > 110 dB
• Low attenuation: 6.0 dB/100 m @ 100 MHz, 13.0 dB/100 m @ 500 MHz, 18.0 dB/100 m @ 860 MHz, 32.0 dB/100 m @ 2150 MHz
• 75 Ohm impedance for SAT, DVB-T, and CATV
• 500 m continuous length on spool
• White PVC jacket, outer diameter approx. 7.0 mm

In daily use

This cable is engineered for professional satellite TV, cable TV, and terrestrial digital broadcasting installations. The quad-shielding effectively blocks electromagnetic interference, preserving signal quality over long runs. The CCS conductor provides a good balance between performance and cost, while the foamed polyethylene dielectric ensures low attenuation and consistent impedance. The white jacket is UV-stable and suitable for both indoor and outdoor use when properly protected. With 500 metres on a single spool, you can complete large projects without splicing, reducing potential points of failure.

Full specifications

• Brand: SHIVERPEAKS
• Model: BS15-40005006
• MPN: BS15-40005006
• EAN: 4017538152947
• Cable type: SAT Coaxial Cable
• Cable length: 500 m
• Impedance: 75 Ω
• Inner conductor material: Copper Clad Steel (CCS)
• Inner conductor diameter: 1.0 mm
• Dielectric material: Foamed Polyethylene (PE)
• Dielectric diameter: 4.6 mm
• Shielding type: 4-fold (Quad-shielded)
• Shielding attenuation: > 110 dB
• Outer jacket material: PVC
• Outer diameter: approx. 7.0 mm
• Attenuation @ 100 MHz: 6.0 dB/100 m
• Attenuation @ 500 MHz: 13.0 dB/100 m
• Attenuation @ 860 MHz: 18.0 dB/100 m
• Attenuation @ 2150 MHz: 32.0 dB/100 m
• Product colour: White
• Connector 1: No Connector
• Connector 2: No Connector

Final note

Trusted by professionals for its reliable performance and high shielding, this SHIVERPEAKS coaxial cable is the backbone of any serious satellite or cable installation.
