SHIVERPEAKS PV4 Conjunto adaptador em T, derivação 2 para 1, IP68, 1500V DC, 30A, Preto (BS02-21012)

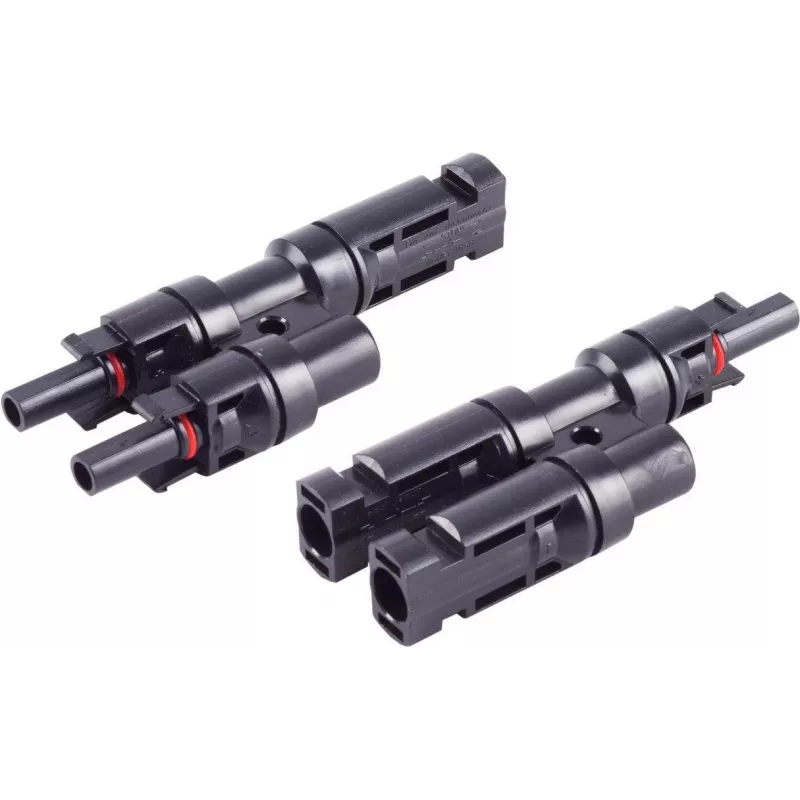

For solar installations demanding a reliable branch connection without bulky junction boxes, the SHIVERPEAKS BS02-21012 PV4 T-Adapter Set delivers a compact 2-to-1 split with an IP68 protection rating. This pair of adapters — one male-to-two-female and one female-to-two-male — enables parallel connections directly in the cable run, saving space and simplifying wiring on rooftops or in solar farms. Rated for 1500 V DC and 30 A, it handles modern high-voltage PV strings with ease, while the snap-in locking system ensures a secure, tool-free mate that resists accidental disconnection.

Highlights

• 2-to-1 branch configuration: one male to two female, one female to two male
• IP68 waterproof and dustproof for outdoor use
• Rated voltage 1500 V DC, current 30 A
• Compatible with 2.5–6 mm² (14–10 AWG) solar cables
• Snap-in locking, tinned copper contacts, PPO insulation
• Certified TÜV and CE, flame retardant UL94-V0

In daily use

Installers benefit from the adapter set's straightforward plug-and-play design. No special tools are required — simply push the connectors together until they click. The black PPO housing withstands UV exposure and extreme temperatures from -40°C to +90°C, maintaining performance in harsh climates. The tinned copper contacts provide low contact resistance (≤ 0.5 mΩ) and high insulation resistance (> 500 MΩ), minimizing power losses. As a Class II device, it offers double insulation for added safety. The set includes two adapters, giving you both gender configurations for complete branch wiring.

Full specifications

• Brand: SHIVERPEAKS
• Model: BS02-21012
• MPN: BS02-21012
• EAN: 4017538147622
• Product type: PV branch connector set
• Connector standard: PV4 (MC4 compatible)
• Configuration: 2-to-1 (1x male to 2x female, 1x female to 2x male)
• Protection rating: IP68
• Rated voltage: 1500 V DC
• Rated current: 30 A
• Cable cross section: 2.5–6 mm² (14–10 AWG)
• Contact material: Tinned copper
• Insulation material: PPO (polyphenylene oxide)
• Operating temperature: -40°C to +90°C
• Flame retardant rating: UL94-V0
• Contact resistance: ≤ 0.5 mΩ
• Insulation resistance: > 500 MΩ
• Safety class: Class II
• Colour: Black
• Certifications: TÜV, CE
• Locking system: Snap-in
• Number of pieces: 2

Final note

With its dual-adapter set, high voltage rating, and robust IP68 sealing, the SHIVERPEAKS BS02-21012 is a dependable choice for branching PV circuits without compromising on safety or efficiency.
