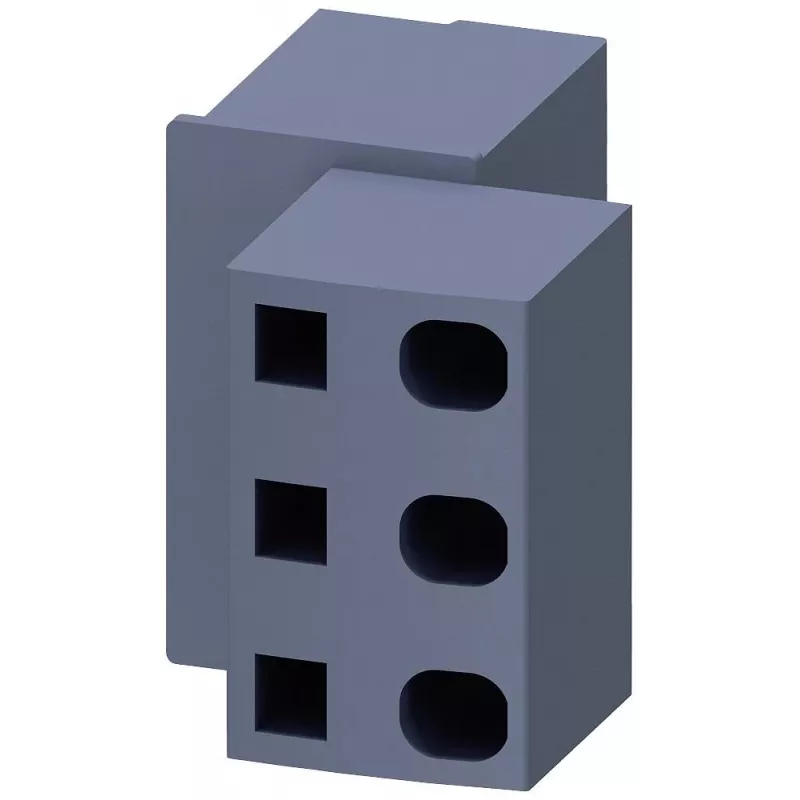

Siemens 3RV2917-5D bloco de terminais de alimentação para disjuntores SIRIUS 3RV2.2/3RV2.3, 6 mm², terminal de parafuso, cinzento

Infeed terminal block for SIRIUS 3RV2.2 and 3RV2.3 circuit breakers, providing a secure screw connection for conductors up to 6 mm². It mounts directly on the circuit breaker for a compact and reliable power feed.

Advantages

Direct mounting on the circuit breaker saves space and simplifies wiring. Screw terminals ensure a vibration-resistant connection. The block is made of durable polyamide and is rated for 32 A, making it suitable for a wide range of industrial applications.

Suitable for

• SIRIUS 3RV2.2 circuit breakers
• SIRIUS 3RV2.3 circuit breakers

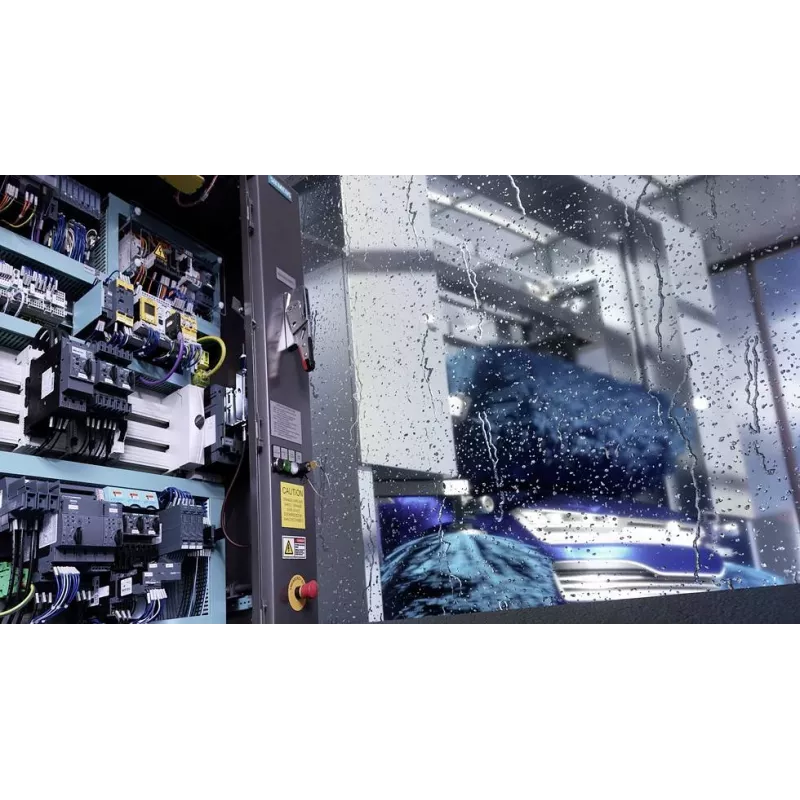

• Industrial control panels and motor starters

Key specifications

• Connection type: screw terminal
• Max conductor cross-section: 6 mm² (solid/stranded), 4 mm² (fine-stranded with ferrule)
• Rated operational current: 32 A
• Rated insulation voltage: 690 V
• Number of poles: 1
• Tightening torque: 0.8 - 1.2 Nm
• Degree of protection: IP20
• Operating temperature: -25 to +60 °C
• Material: polyamide (PA)
• Colour: grey
• Standards: IEC 60947, UL, CSA

Recommendations

Use with SIRIUS 3RV2.2 or 3RV2.3 circuit breakers for a reliable infeed solution. Ensure proper tightening torque for secure connections.
