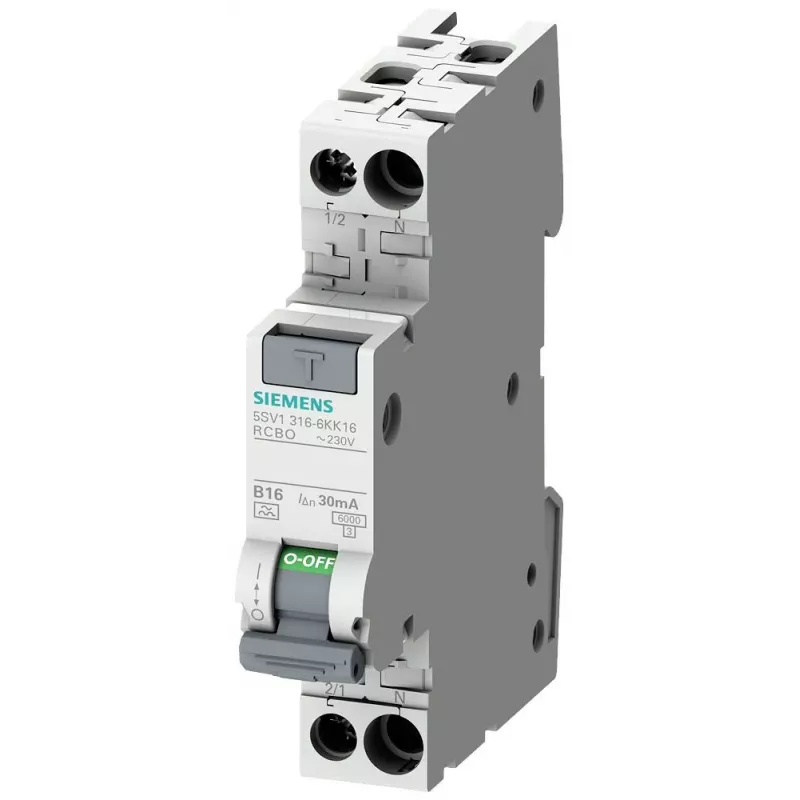

Siemens 5SV16166KK16 RCBO, 1P+N, 16 A, 30 mA, Tipo A, curva C, 6 kA

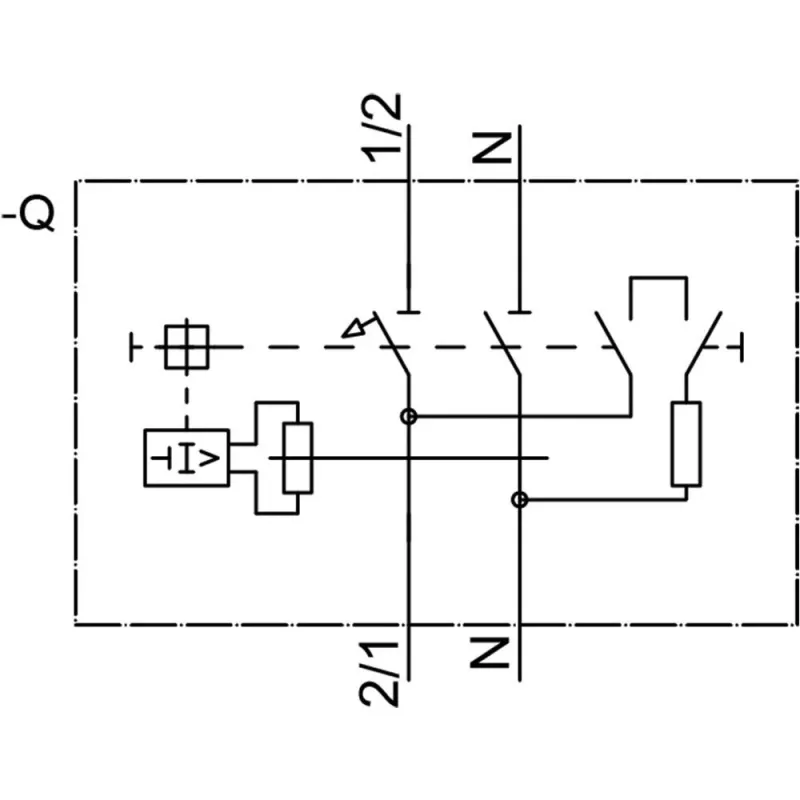

Residual current operated circuit-breaker with integral overcurrent protection (RCBO) in 1P+N configuration, rated 16 A with a 30 mA residual current sensitivity and C tripping characteristic. Combines fault current and overcurrent protection in a single 2-module-wide DIN rail device.

Overview

The Siemens 5SV16166KK16 is a combined residual current operated circuit-breaker with overcurrent protection (RCBO). It protects against both residual currents (earth faults) and overcurrents (overload and short-circuit) in a single device. The unit is designed for DIN rail mounting and occupies a width of 2 TE (36 mm). It has a rated current of 16 A, a rated residual current of 30 mA, and a tripping characteristic of type C. The residual current type is A, which detects alternating and pulsating direct residual currents. The rated switching capacity is 6 kA, and the rated voltage is 230 V AC at 50 Hz.

What stands out

• Combined protection: RCBO function in one compact unit
• 1P+N design with 2 TE width for efficient use of distribution board space
• Type A residual current detection for AC and pulsating DC fault currents
• C tripping characteristic for circuits with moderate inrush currents
• 6 kA switching capacity for reliable short-circuit interruption
• DIN rail mounting for standard installation

Technical details

• Device type: Residual current operated circuit-breaker with integral overcurrent protection (RCBO)
• Number of poles: 1P+N
• Rated current (In): 16 A
• Rated residual current (IΔn): 30 mA
• Overcurrent tripping characteristic: C
• Residual current type: A
• Rated switching capacity (Icn): 6 kA
• Rated voltage (Un): 230 V AC
• Frequency: 50 Hz
• Mounting type: DIN rail

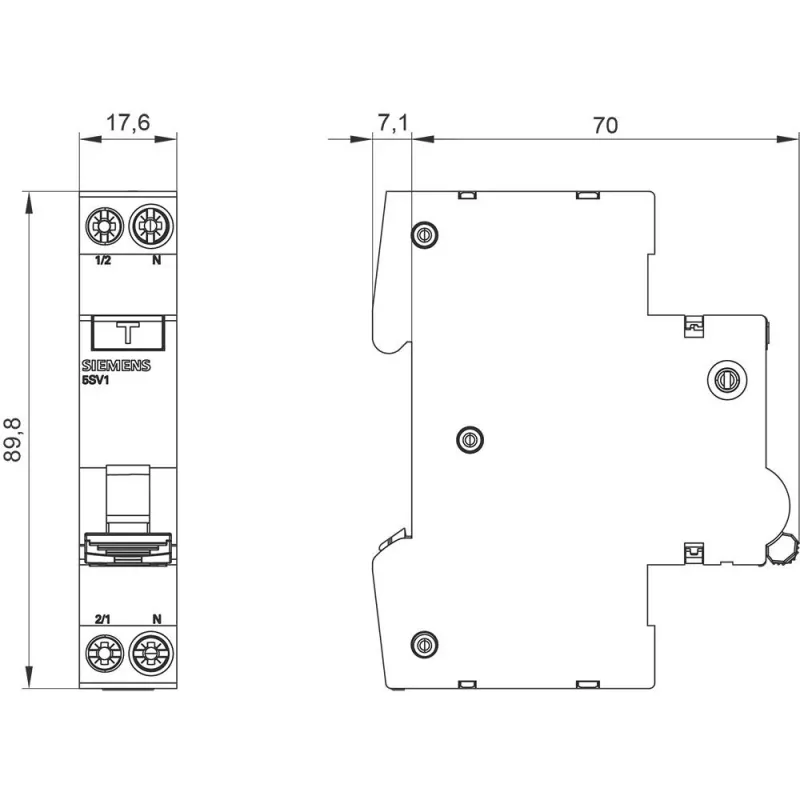

• Module width: 2 TE (36 mm)
• Degree of protection: IP20 (terminals), IP40 (with enclosure)
• Operating temperature range: -25 to +45 °C
• Electrical endurance: 10,000 switching cycles
• Mechanical endurance: 20,000 switching cycles
• Surge current withstand: 1 kA (8/20 µs)

Our verdict

A reliable RCBO for residential and commercial installations, offering combined fault and overcurrent protection in a space-saving design. Its Type A residual current detection and C characteristic make it suitable for a wide range of circuits.
