Siemens cabeça de atuador 3SE5000-0AH00 alavanca oscilante

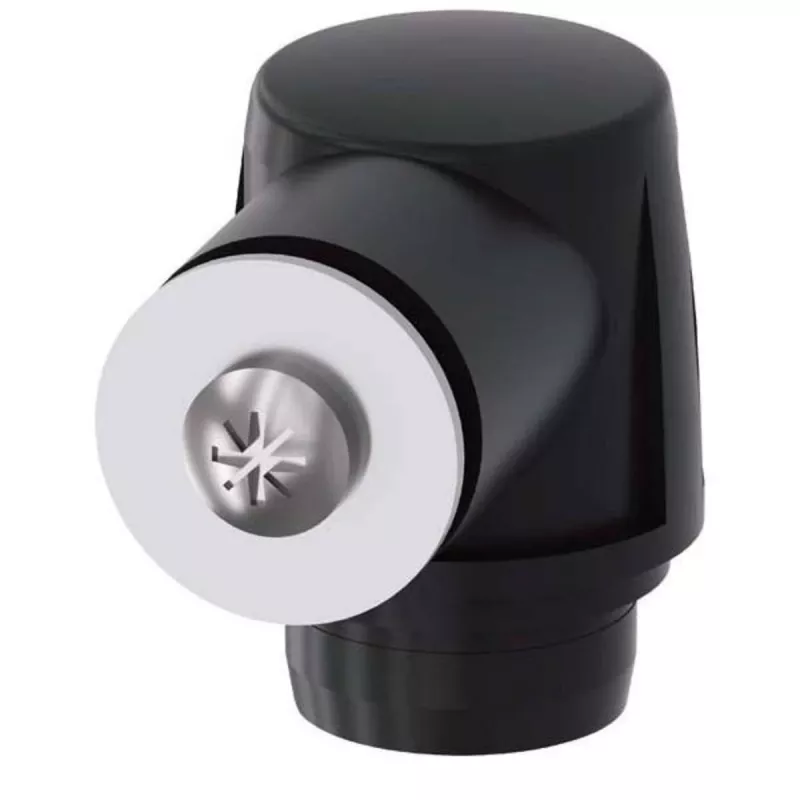

In automated production lines and material handling systems, position switches are critical for detecting the presence or position of machine parts. The Siemens 3SE5000-0AH00 actuator head is the front-end component that converts mechanical movement into an electrical signal when paired with a compatible SIRIUS 3SE5 position switch body. This swivel lever actuator head is designed for industrial limit switching applications where a rotary motion needs to be detected.

Key specifications

• Product type: Actuator head for position switches
• Actuator principle: Rotary
• Actuator type: Swivel lever (without roller)
• Series compatibility: Siemens SIRIUS 3SE5 position switches
• Housing material: Thermoplastic
• Lever material: Metal
• Mounting type: Front mounting
• Operating temperature: -25 to +80 °C
• Storage temperature: -40 to +90 °C
• Protection class (with switch): IP66 / IP67
• Mechanical service life: > 15 million operating cycles
• Colour: Black

Why choose it

The swivel lever design provides a reliable rotary actuation mechanism for position detection. Its robust thermoplastic housing and metal lever ensure durability in industrial environments. The actuator head is easy to install on the front of a compatible switch body, and its high mechanical service life reduces maintenance needs.

Ideal use cases

• Limit switching on conveyor systems
• Position detection on machine tools
• End-of-travel sensing on linear actuators
• Rotary cam monitoring in packaging machines

Good to know

This actuator head is a component and requires a separate Siemens SIRIUS 3SE5 position switch body to function. It is not a complete switch. The swivel lever is without a roller, suitable for applications where a simple lever contact is sufficient.
