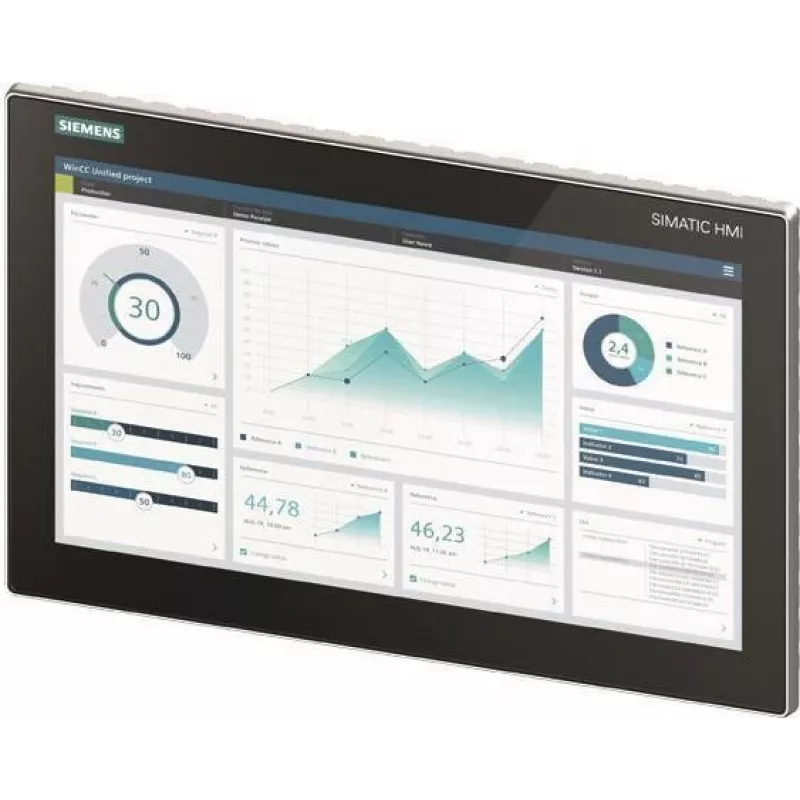

Siemens SIMATIC HMI MTP1500 Unified Comfort Panel 15,6" Full HD Multi-Touch 6AV21283QB060AX1

Experience industrial visualization at its finest with a 15.6-inch Full HD widescreen display and capacitive multi-touch technology, delivering crisp 1920 x 1080 resolution and 16 million colors for exceptional clarity. The Siemens SIMATIC HMI MTP1500 Unified Comfort Panel is engineered for demanding automation environments, combining a powerful ARM Cortex-A53 processor, 4 GB RAM, and 16 GB eMMC storage to ensure smooth operation of complex HMI applications.

Overview

This panel is part of the Unified Comfort series, designed for seamless integration with TIA Portal V16 or higher and WinCC Unified configuration software. It features dual PROFINET/Ethernet ports, two USB 3.0 ports, and a USB-C interface for flexible connectivity. With an IP65-rated front panel, it withstands harsh industrial conditions, while the rear is rated IP20. The device operates on 24 V DC and is suitable for panel mounting.

What stands out

• Brilliant 15.6" Full HD display with 16:9 aspect ratio and 50,000-hour backlight lifetime
• Capacitive multi-touch for intuitive, responsive operation
• Robust connectivity: 2x Ethernet, 2x USB 3.0, 1x USB-C
• High-performance ARM Cortex-A53 processor with 4 GB RAM
• Front IP65 protection for use in demanding environments
• Certified to CE, UL, and cUL standards

Technical details

• Display: 15.6" TFT LED-backlit, 1920 x 1080 pixels, 16 million colors
• Touch: Capacitive multi-touch
• Processor: ARM Cortex-A53
• Memory: 4 GB RAM, 16 GB eMMC (approx. 12 GB user memory)
• Operating System: Siemens Unified Comfort OS
• Interfaces: 2x RJ45 Ethernet (PROFINET), 2x USB 3.0, 1x USB-C
• Power Supply: 24 V DC
• Protection: Front IP65, Rear IP20
• Mounting: Panel mount
• Configuration: TIA Portal V16 or higher (WinCC Unified)
• Operating Temperature: 0 to 50 °C
• Backlight Lifetime: 50,000 hours at 25°C
• Certifications: CE, UL, cUL

Our verdict

The Siemens SIMATIC HMI MTP1500 Unified Comfort Panel is a top-tier choice for advanced machine and process visualization, offering exceptional display quality, robust performance, and versatile connectivity in a compact, durable design.
