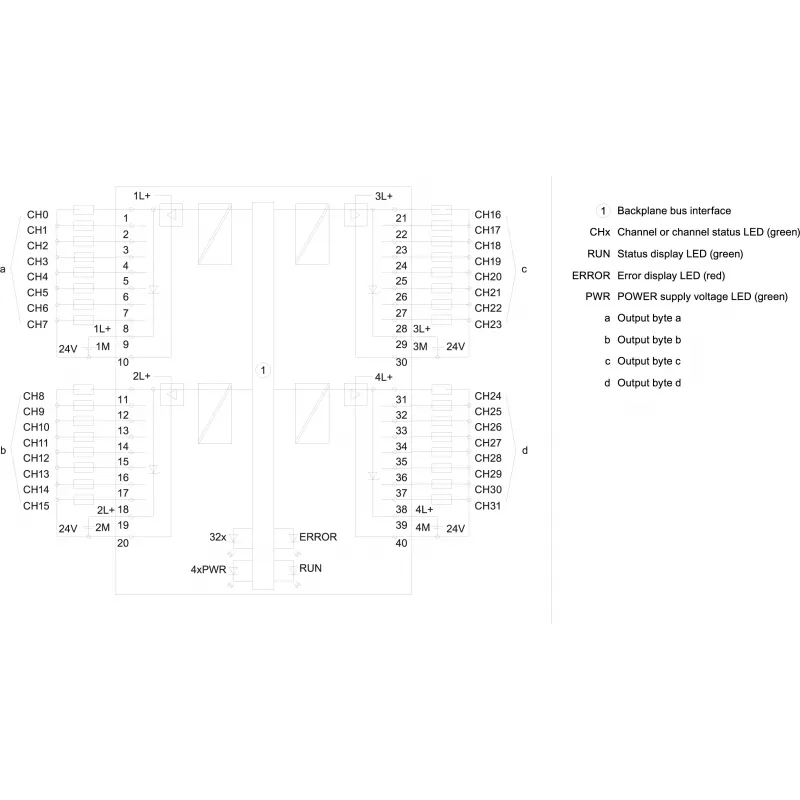

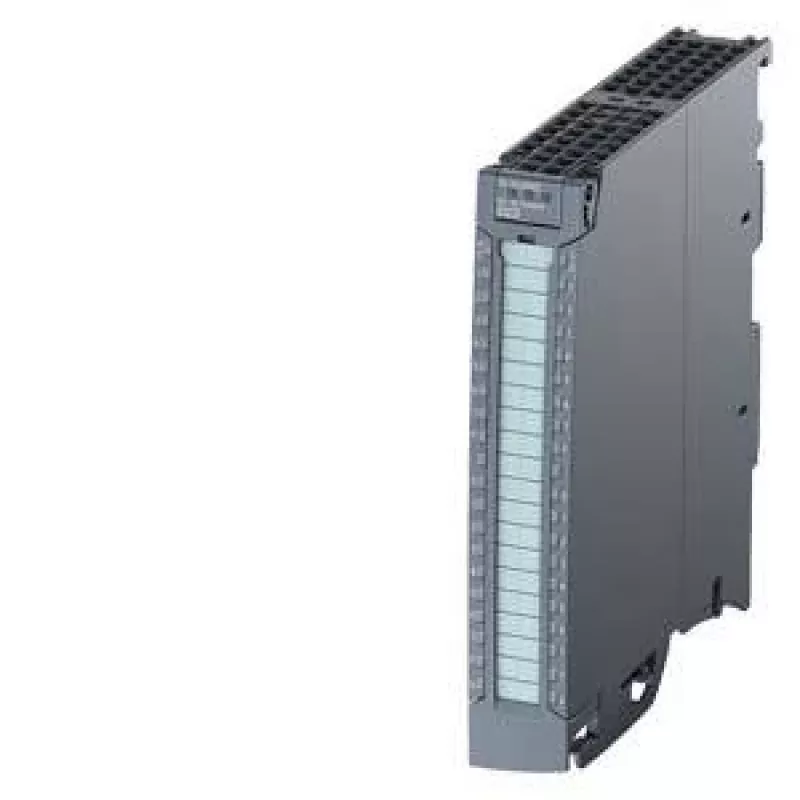

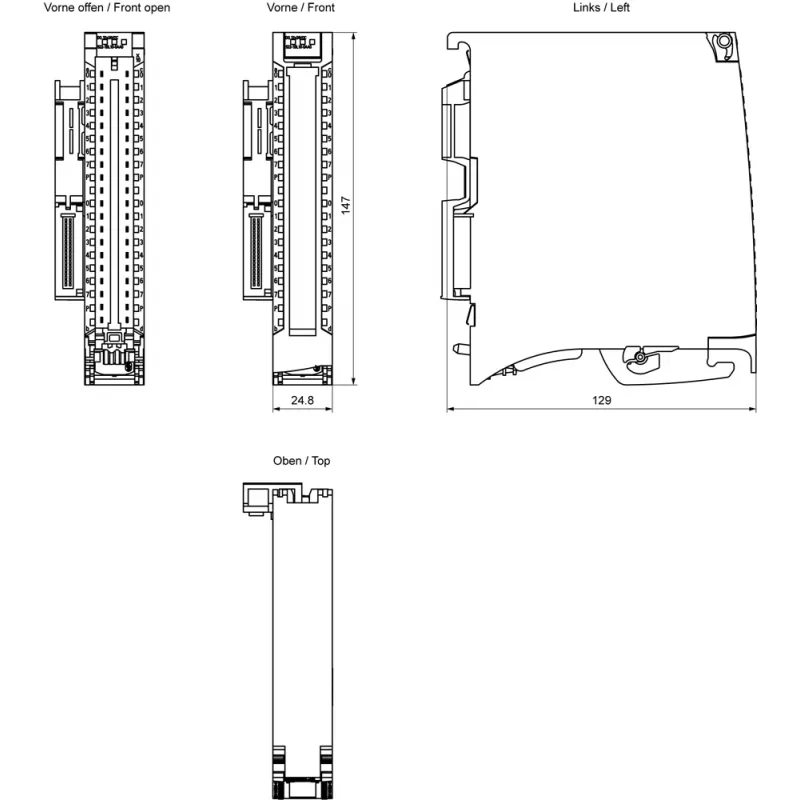

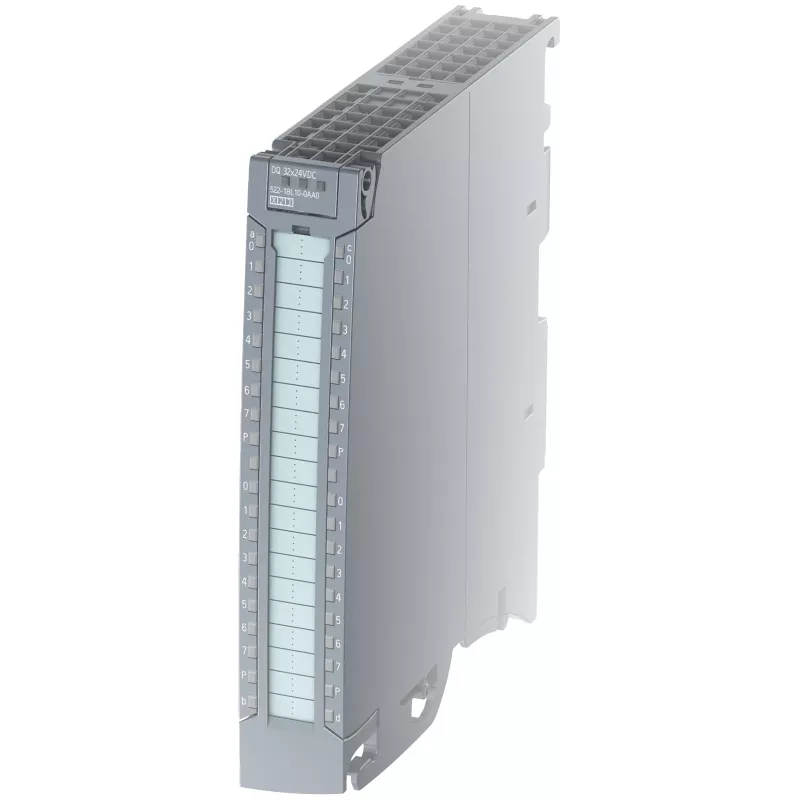

Siemens SIMATIC S7-1500 Módulo de saídas digitais DQ 32x24VDC/0,5A, 32 canais, sourcing (PNP), ficha frontal push-in, diagnóstico | 6ES75221BL100AA0

This digital output module stands out with its 32 sourcing (PNP) channels, each rated for 0.5 A, making it ideal for high-density 24 V DC control tasks in SIMATIC S7-1500 systems. Unlike basic output modules, it provides single-channel diagnostics for wire-break, short-circuit, and supply voltage issues, enabling rapid fault localization.

Highlights

• 32 digital outputs, 24 V DC, sourcing (PNP)
• 0.5 A per channel, 4 A per group (8 channels per group)
• Single-channel diagnostics: wire-break, short-circuit, supply voltage
• Configurable substitute output values for safe state behavior
• Push-in front connector (40-pin) for tool-free wiring
• LED status indicators for each channel, plus module status and error

In daily use

The module integrates seamlessly into S7-1500 stations via the backplane bus, with isolation between channels and the bus for reliable operation. Short-circuit and overload protection safeguard both the module and connected actuators. Firmware updates can be applied in the field, ensuring future compatibility. The compact design and DIN rail mounting simplify installation in control cabinets.

Full specifications

• Module type: Digital output module
• Series: SIMATIC S7-1500
• Number of outputs: 32
• Output voltage: 24 V DC
• Output current per channel: 0.5 A
• Output current per group: 4 A (8 channels per group)
• Output type: Sourcing (PNP)
• Short-circuit protection: Yes
• Overload protection: Yes
• Diagnostics: Single-channel (wire-break, short-circuit, supply voltage)
• Substitute output values: Configurable
• Connection type: Push-in front connector (40-pin)
• Isolation: Between channels and backplane bus
• Power loss: Max. 2.5 W
• Operating temperature: 0 to 60 °C
• Mounting type: DIN rail
• Firmware update: Yes
• Status indicators: LEDs for status, error, and channel status

Final note

With its high channel density and advanced diagnostics, this module is a dependable choice for demanding automation applications requiring precise control and quick troubleshooting.
