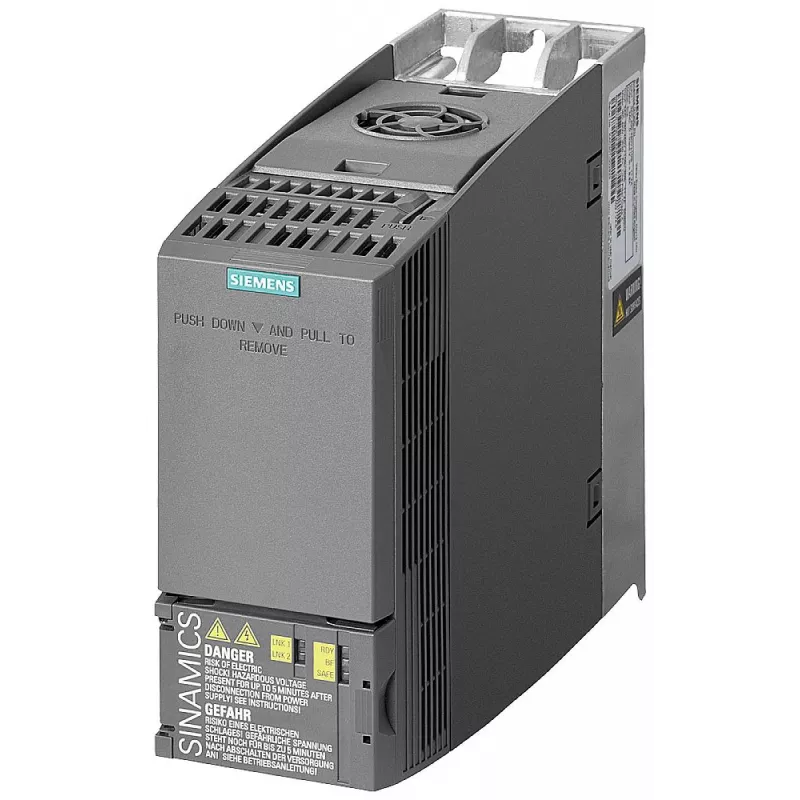

Siemens SINAMICS G120 PM240-2 módulo de potência 7,5 kW 380-480 V 3AC 6SL32101KE175AF1

In automated production lines and machine tools, the SINAMICS G120 PM240-2 power module delivers reliable motor control. This 7.5 kW heavy-duty unit operates on a 380-480 V three-phase supply and is designed for wall mounting in control cabinets.

Key specifications

• Product type: Power Module
• Series: SINAMICS G120
• Module type: PM240-2
• Input voltage: 380-480 V 3AC
• Input frequency: 47-63 Hz
• Output voltage: 3AC 400 V
• Rated power (heavy duty): 7.5 kW
• Rated power (light duty): 11 kW
• Overload capability (HD): 150% for 60 s, 100% for 240 s
• Integrated filter: Class A
• Ambient operating temperature: -10 to +50 °C
• Protection class: IP20
• Cooling method: Internal air cooling
• Frame size: FSD
• Mounting type: Wall mounting
• Relative humidity: < 95% (non-condensing)
• Altitude: Up to 1000 m without derating

Why choose it

This power module offers flexible integration with compatible control units (CU230P-2, CU240E-2, CU250S-2) and meets international standards for industrial use.

Ideal use cases

• Conveyor systems
• Pumps and fans
• Machine tools

Good to know

Requires a separate control unit for operation. Certified to CE, UL, cUL, RCM, and KC.
