Siemens SIRIUS 3RV2 Disjuntor 3RV2411-1FA10, 0,7-1,1 A, tripolar, terminais de parafuso

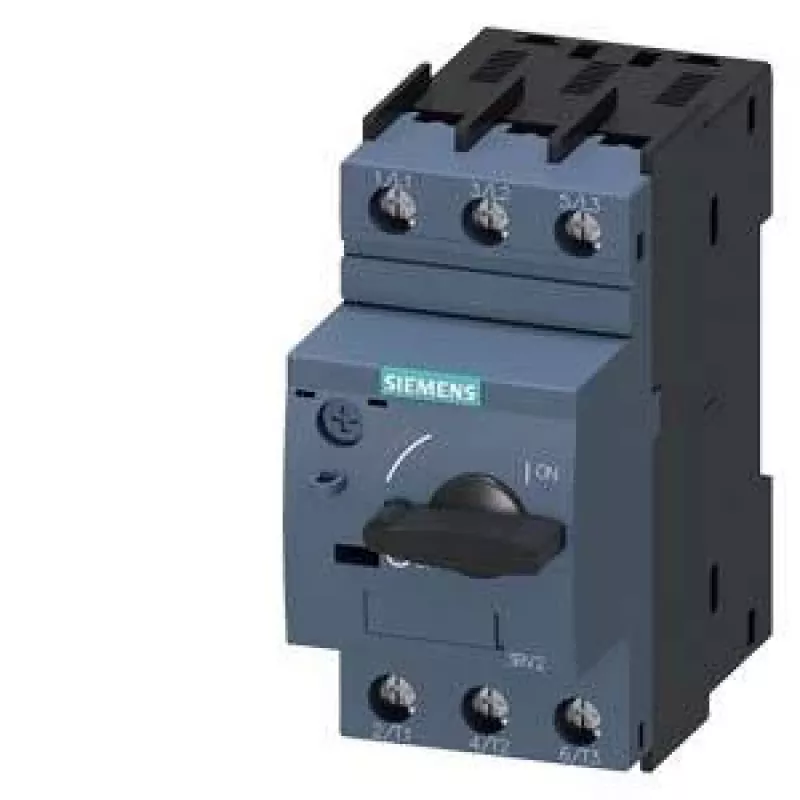

In industrial control panels, the Siemens 3RV2411-1FA10 circuit breaker protects motors and systems from overloads and short circuits. It belongs to the SIRIUS 3RV2 series, frame size S00, and offers a 3-pole design with screw terminals for secure wiring.

Key specifications

• Adjustable overload current range: 0.7 – 1.1 A
• Rated operational current: 1.1 A
• Short-circuit release current: 14.3 A (instantaneous N-release)
• Rated operating voltage: 690 V AC
• Rated insulation voltage: 690 V
• Tripping class: CLASS 10
• Number of poles: 3
• Connection type: screw terminal
• Mounting: DIN rail or screw mounting
• Degree of protection: IP20
• Ambient operating temperature: -20 to +60 °C
• Rated impulse withstand voltage: 6 kV
• Frequency: 50/60 Hz

Why choose it

This breaker provides reliable motor protection with adjustable overload settings, ensuring flexibility for various applications. Its compact S00 frame size saves panel space while maintaining high performance.

Ideal use cases

• Motor protection in industrial control systems
• System protection for small machines and equipment
• DIN rail installations in distribution boards

Good to know

The device is designed for standard switching capacity and is suitable for ambient temperatures from -20 °C to +60 °C. It complies with international standards for circuit breakers.
