Siemens SIRIUS ACT 3SU1001-6AA60-0AA0 sinalizador luminoso, lente branca, LED 24V, 22mm redondo, ligação por parafuso

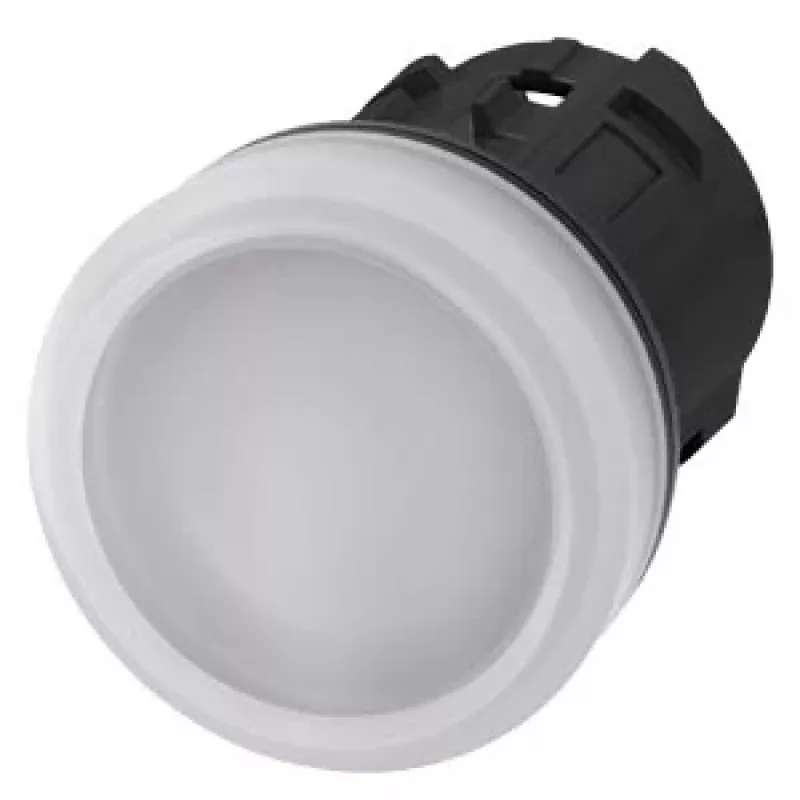

The Siemens 3SU1001-6AA60-0AA0 is a complete indicator light unit from the SIRIUS ACT series, designed for front panel mounting in industrial control applications. This robust component features a white smooth lens and a black plastic enclosure front, providing clear visual status indication. With a 24V AC/DC LED illumination source, it offers long service life and low power consumption. The screw terminal connection ensures secure and reliable wiring. Rated IP66, IP67, and IP69K on the front, it is suitable for harsh environments.

Advantages

High protection rating (IP66, IP67, IP69K) for demanding industrial conditions. LED technology with 100,000 hours service life reduces maintenance. Compact 22.3 mm mounting diameter fits standard panel cutouts. Screw terminals simplify installation and provide stable connections.

Suitable for

• Industrial control panels and machinery
• Status indication in automation systems
• Applications requiring high ingress protection
• 24V control circuits

Key specifications

• Product Type: Indicator Light
• Series: SIRIUS ACT
• Design: Complete Unit
• Mounting Type: Front Panel Mounting
• Mounting Diameter: 22.3 mm
• Shape of Enclosure Front: Round
• Color of Lens: White
• Lens Type: Smooth
• Illumination Source: LED
• Operating Voltage: 24 V AC/DC
• Connection Type: Screw Terminal
• Degree of Protection (Front): IP66, IP67, IP69K
• Degree of Protection (Rear): IP20
• Operating Temperature Range: -25 to +70 °C
• LED Service Life: 100,000 h at 25 °C
• LED Current Consumption (typical): 18 mA
• Enclosure Front Material: Plastic
• Enclosure Front Color: Black

Recommendations

For optimal performance, ensure the panel cutout is 22.3 mm and the supply voltage is 24V. Use appropriate screw terminals for wiring. This indicator light is part of the Siemens SIRIUS ACT modular system, compatible with various actuators and accessories.
