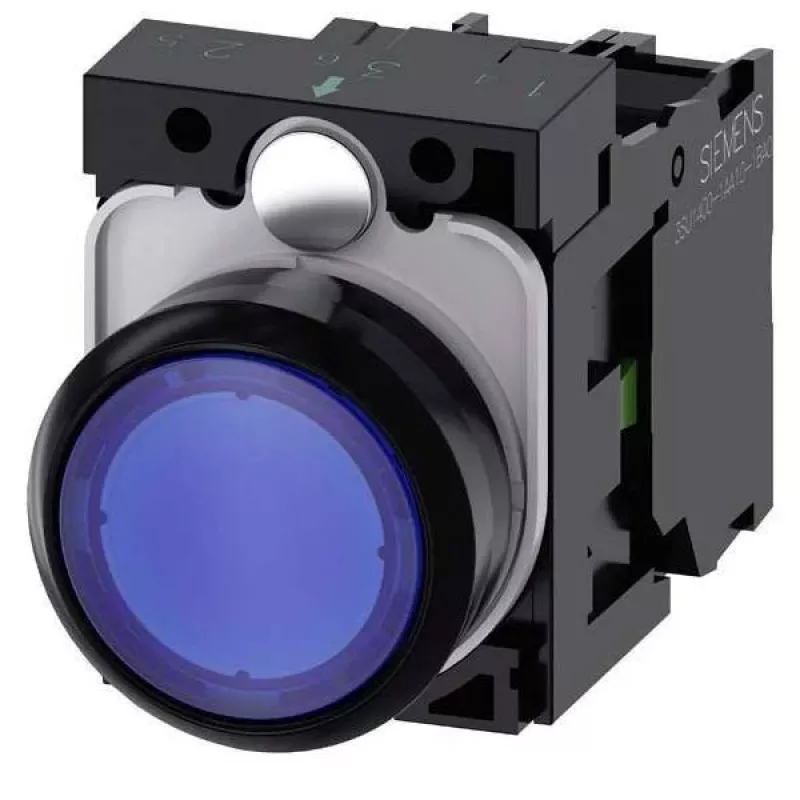

Siemens SIRIUS ACT Botão luminoso completo, plástico, azul, 1NO+1NC, 24V AC/DC LED 3SU1102-0AB50-1BA0

Illuminated pushbutton complete unit from the SIRIUS ACT series, featuring a flat blue actuator and plastic front ring for a 22.3 mm mounting diameter. The integrated LED provides clear status indication at 24 V AC/DC, while the 1 NO + 1 NC contact configuration supports versatile control tasks.

Advantages

High mechanical and electrical endurance of 10 million operating cycles ensures long service life. The front protection rating of IP66, IP67, IP69K makes it suitable for demanding environments. Screw terminals allow secure and straightforward wiring.

Suitable for

• Control panels and operator stations in industrial automation
• Machinery requiring reliable illuminated pushbutton control
• Applications with frequent switching operations

Key specifications

• Product type: Illuminated pushbutton
• Series: SIRIUS ACT
• Design: Complete unit
• Actuator type: Flat button
• Actuator colour: Blue
• Front ring material: Plastic
• Mounting diameter: 22.3 mm
• Illumination type: LED
• Illumination voltage: 24 V AC/DC
• Contact configuration: 1 NO + 1 NC
• Terminal type: Screw terminal
• Degree of protection (front): IP66, IP67, IP69K
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Mechanical endurance: 10,000,000 cycles
• Electrical endurance: 10,000,000 cycles (AC-15, 230 V, 6 A)
• Rated insulation voltage: 500 V
• Rated impulse withstand voltage: 6 kV
• Housing material: Plastic

Recommendations

For reliable and durable illuminated pushbutton control in industrial environments, this SIRIUS ACT unit offers proven performance and easy integration.
