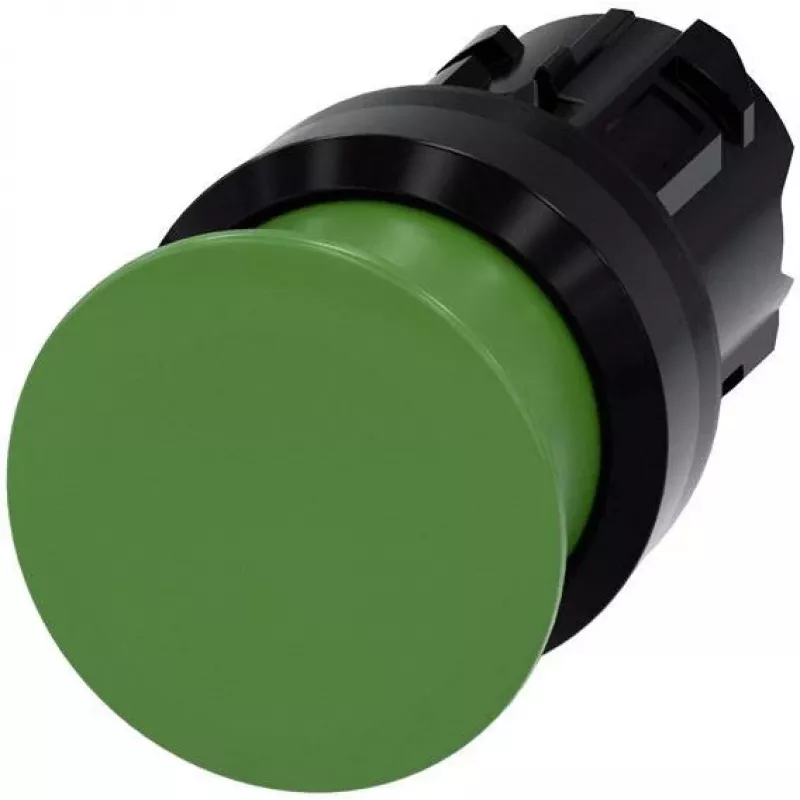

Siemens SIRIUS ACT Elemento frontal de botão de cogumelo, plástico, verde, 40 mm, momentâneo 3SU1000-1AD40-0AA0

Mushroom pushbutton front element with holder for 22 mm mounting diameter, featuring a green plastic actuator with a 40 mm mushroom head and momentary (spring-return) operation. Part of the SIRIUS ACT series, this component is designed for reliable control in industrial environments.

Advantages

High mechanical service life of 10,000,000 switching cycles. Front protection class IP66, IP67, IP69K and NEMA ratings up to 4X/13 ensure suitability for demanding conditions. Wide operating temperature range from -25 to +70 °C.

Suitable for

• Industrial control panels
• Machine tools
• Conveyor systems
• Process automation

Key specifications

• Series: SIRIUS ACT
• Mounting diameter: 22 mm
• Actuator design: Round
• Actuator material: Plastic
• Actuator colour: Green
• Mushroom head diameter: 40 mm
• Operation: Momentary (spring-return)
• Illumination: Non-illuminated
• Component type: Front element with holder
• Mechanical service life: 10,000,000 cycles
• Operating temperature: -25 to +70 °C

Recommendations

For use with compatible SIRIUS ACT contact modules and mounting bases. Ensure proper panel cut-out of 22.3 mm diameter.
