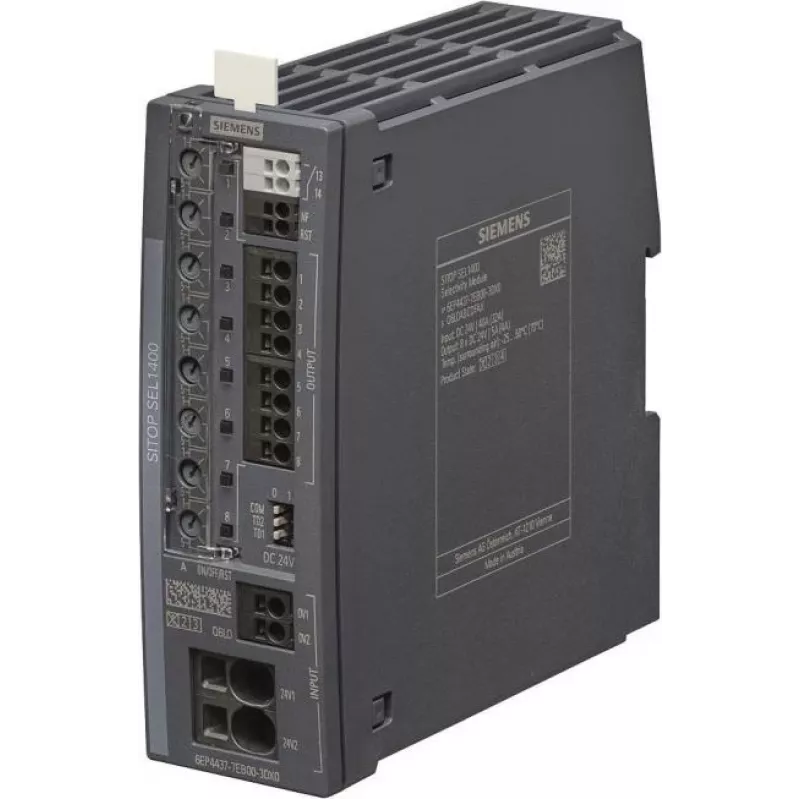

Siemens SITOP SEL1400 módulo seletivo DC 24 V 4 saídas 40 A 6EP4437-7EB00-3DX0

The Siemens SITOP SEL1400 selectivity module ensures reliable selective overload and short-circuit protection for DC 24 V power distribution systems. With four individually adjustable outputs (0.5 A to 10 A each) and a total output current of up to 40 A, it provides precise fault isolation to minimize downtime. Ideal for industrial control cabinets, it features electronic selective protection, collective signaling contacts, and LED status indicators per channel. The module supports remote reset and diagnostic interface for SITOP Manager, enabling efficient monitoring and maintenance.

Advantages

Selective fault isolation prevents total system shutdown; adjustable output currents allow flexible configuration; remote reset and diagnostics reduce manual intervention; compact DIN rail mounting saves space; comprehensive approvals ensure global applicability.

Suitable for

• Industrial automation and control systems
• Machine building and plant engineering
• Process industry and manufacturing
• Building infrastructure and safety-critical applications

Key specifications

• Product Type: Selectivity Module
• Series: SITOP SEL1400
• Input Voltage: DC 24 V
• Output Voltage: DC 24 V
• Number of Outputs: 4
• Output Current per Channel: 0.5 A to 10 A (adjustable)
• Total Output Current: Max. 40 A
• Overload Protection: Electronic, selective
• Short-Circuit Protection: Electronic, selective
• Signaling: Collective signaling contact (NO/NC), LED per output
• Mounting Type: DIN rail
• Operating Temperature: -25 to +70 °C
• Protection Class: IP20
• Diagnostic Interface: Yes (for SITOP Manager)
• Remote Reset: Yes
• Connection Type: Screw terminals
• Approvals: CE, cULus, ATEX, IECEx, GL, ABS, DNV, RINA, LR, BV

Recommendations

For optimal system reliability, pair the SEL1400 with a SITOP power supply and use SITOP Manager for centralized diagnostics. Ensure proper DIN rail mounting and adequate ventilation.
