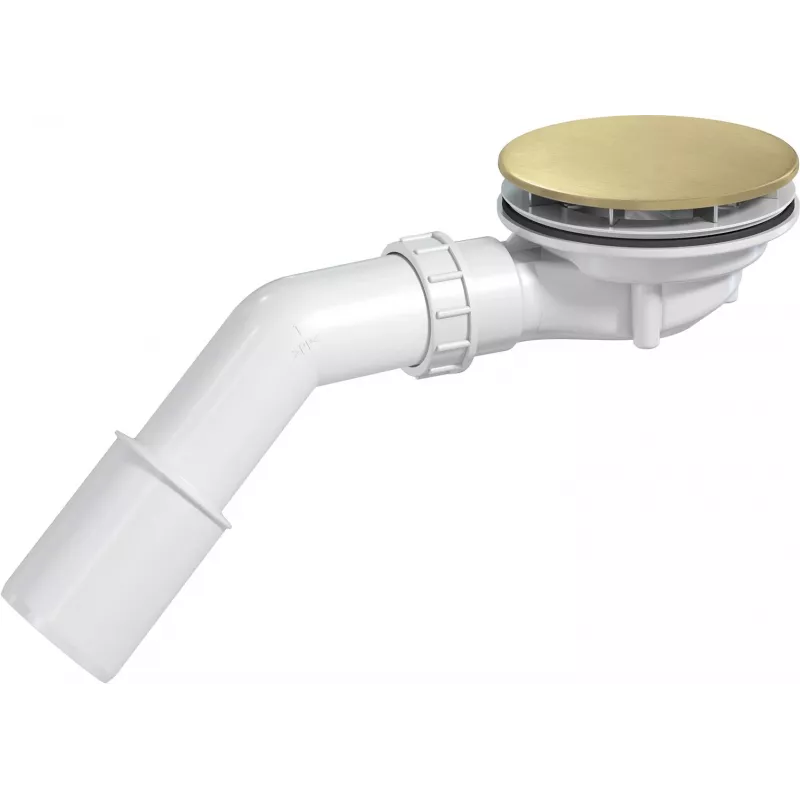

Sifão de base de duche DEANTE NHC_R29D com acesso de limpeza por cima, grelha cromada, corpo branco, orifício de escoamento Ø90mm, saída Ø50/40mm

When installing a new shower tray or replacing a worn-out waste, this DEANTE siphon offers a reliable, low-profile solution that keeps water flowing and odours locked away. The removable chrome-plated grille and internal basket make routine cleaning quick and tool-free, while the integrated 50mm water seal ensures a hygienic barrier against sewer gases. Suitable for standard shower trays with a Ø90mm waste hole, it fits neatly under the tray and connects to Ø50mm or Ø40mm outlet pipes via a compression fitting.

Key specifications

• Product type: Shower tray siphon / waste trap with top cleaning access
• Outlet diameter: Ø50mm (Ø40mm with included reducer)
• Shower tray hole diameter: Ø90mm
• Body material: Polypropylene (PP)
• Grille/cover material: Chrome-plated ABS
• Water seal height: 50mm
• Flow rate: approx. 35 L/min
• Minimum installation height: 90mm
• Connection type: Compression fitting for outlet pipe
• Odour trap: Integrated water seal
• Hair trap: Removable basket filter
• Colour: White body, chrome grille
• Certifications: CE compliant
• Mounting: Under-tray installation
• Design: Low-profile for space-saving installation

Why choose it

The top-access cleaning design means you never need to dismantle the shower tray or reach underneath to clear blockages. Simply lift the chrome grille, remove the basket, and rinse away hair and debris. The polypropylene body resists chemicals and high temperatures, while the 50mm water seal reliably prevents unpleasant odours. Its compact height makes it ideal for installations with limited space under the tray.

Ideal use cases

• New shower tray installations in residential bathrooms
• Replacement of old or faulty waste traps
• Bathrooms with limited under-tray clearance
• Homes with hard water or high hair shedding

Good to know

The siphon is CE compliant and designed for standard Ø90mm waste holes. The included reducer allows connection to both Ø50mm and Ø40mm outlet pipes, ensuring compatibility with most plumbing systems. The removable basket filter traps hair and debris, preventing clogs and maintaining optimal flow.
