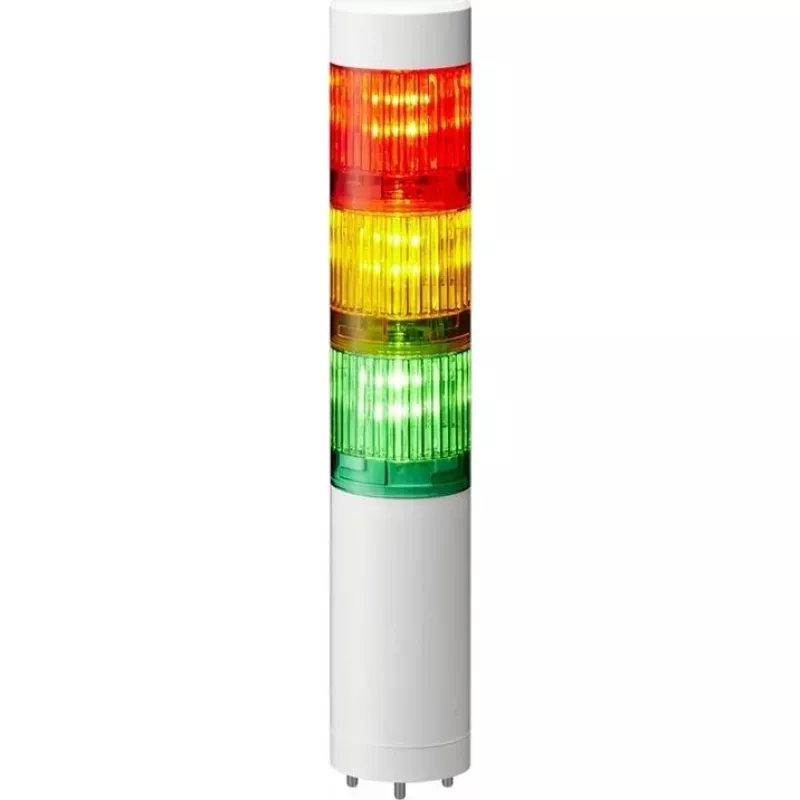

Sinalizador LED PATLITE LR4-302WJNW-RYG 3 níveis vermelho/amarelo/verde 24V DC pré-cablado cabo branco

With a bright, energy-efficient LED light source and a compact 40 mm diameter, this PATLITE LR4 signal tower delivers clear, reliable status indication for industrial environments. The three-tier red, yellow, and green configuration provides at-a-glance operational awareness, while the pre-wired 500 mm cable simplifies installation.

Overview

The LR4-302WJNW-RYG is a direct-mount signal tower built for machine status indication in manufacturing lines, process automation, and logistics. Its LED modules support steady and flashing light patterns, ensuring visibility even in bright factory conditions. The white body and polycarbonate lenses are both durable and easy to clean, making it suitable for demanding industrial use.

What stands out

• IP65-rated protection against dust and water jets, ideal for harsh environments.
• Low current consumption (0.12 A max) reduces operating costs.
• Pre-wired cable with 500 mm length for quick and secure connection.
• CE, RoHS, and UL (cULus) certifications for global compliance.
• Wide operating temperature range from -20°C to +50°C.

Technical details

• Series: LR4
• Number of tiers: 3
• Module colours: Red, Yellow, Green (RYG)
• Light source: LED
• Operating voltage: 24V DC
• Current consumption: 0.12 A (max)
• Mounting type: Direct mount
• Wiring: Pre-wired cable, 500 mm
• Body colour: White
• Light patterns: Steady, flashing
• Buzzer: No
• Ingress protection: IP65
• Operating temperature: -20°C to +50°C
• Storage temperature: -30°C to +60°C
• Housing material: ABS resin
• Lens material: Polycarbonate
• Relative humidity: 90% RH (non-condensing)
• Certifications: CE, RoHS, UL (cULus)

Our verdict

An excellent choice for compact, high-visibility status indication in industrial automation. The combination of LED efficiency, rugged construction, and easy wiring makes it a dependable addition to any control system.
