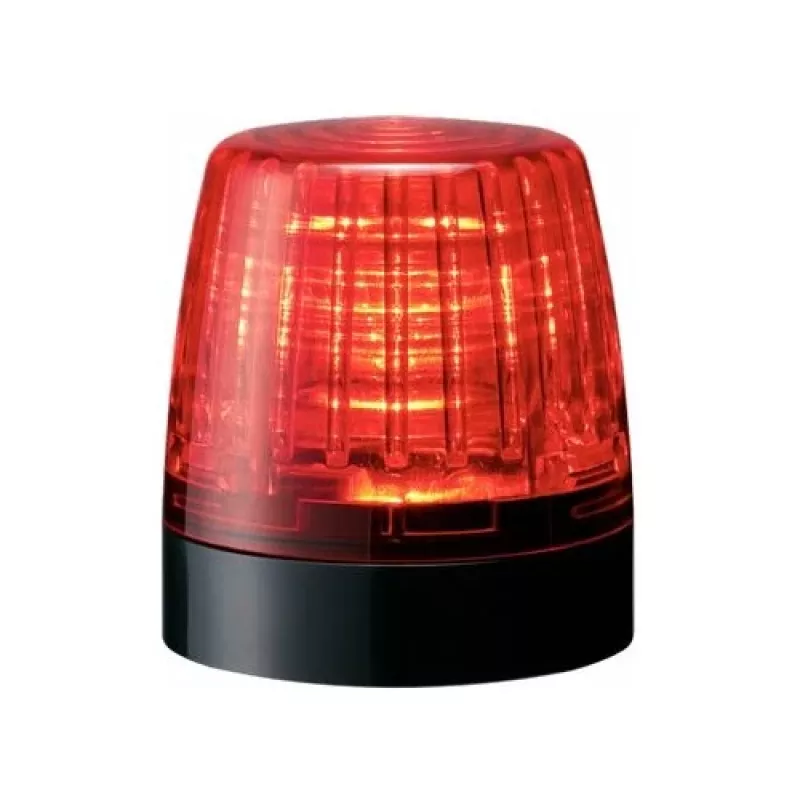

Sinalizador Luminoso PATLITE NE-24A-R 56mm IP65 Vermelho LED 24V DC

The PATLITE NE-24A-R is a compact and durable signal light designed for industrial applications. With a 56mm lens diameter and IP65 protection, it offers reliable visual indication in harsh environments. The steady red LED ensures clear visibility, while the 24V DC operation makes it easy to integrate into existing systems.

Advantages

This signal light provides long-lasting LED illumination with low power consumption (0.84W). Its robust ABS resin body and polycarbonate lens withstand vibrations and impacts, ensuring longevity. The IP65 rating allows use in dusty or wet conditions, and the direct mount simplifies installation.

Suitable for

• Industrial machinery status indication
• Automation and control panels
• Safety and warning systems
• Factory floor equipment

Key specifications

• Series: NE Series
• Light Source: LED
• Operating Voltage: 24V DC
• Current Consumption: 35 mA
• Lens Diameter: 56 mm
• Light Color: Red
• Ingress Protection: IP65
• Mounting Type: Direct Mount
• Operating Temperature: -30°C to +50°C
• Storage Temperature: -40°C to +60°C
• Housing Material: ABS Resin (Body), Polycarbonate (Lens)
• Certifications: CE, UL, RoHS
• Illumination Mode: Steady
• Connection Type: Lead Wire
• Power Consumption: 0.84 W
• Vibration Resistance: 0.7G
• Impact Resistance: 10G

Recommendations

For optimal performance, ensure the supply voltage is stable at 24V DC. This signal light is ideal for replacing older incandescent units, offering longer life and lower energy costs.
