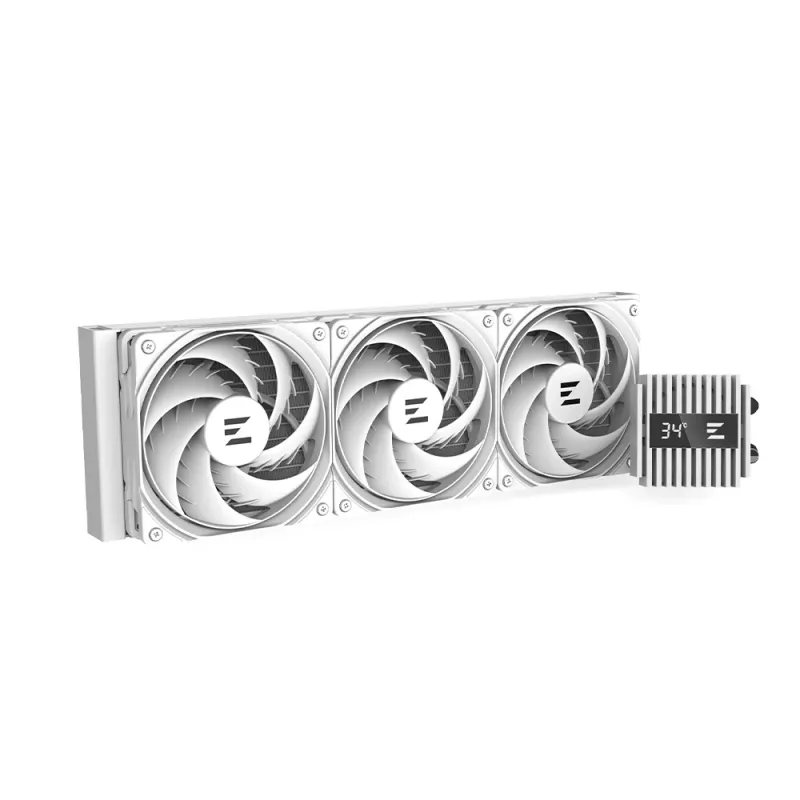

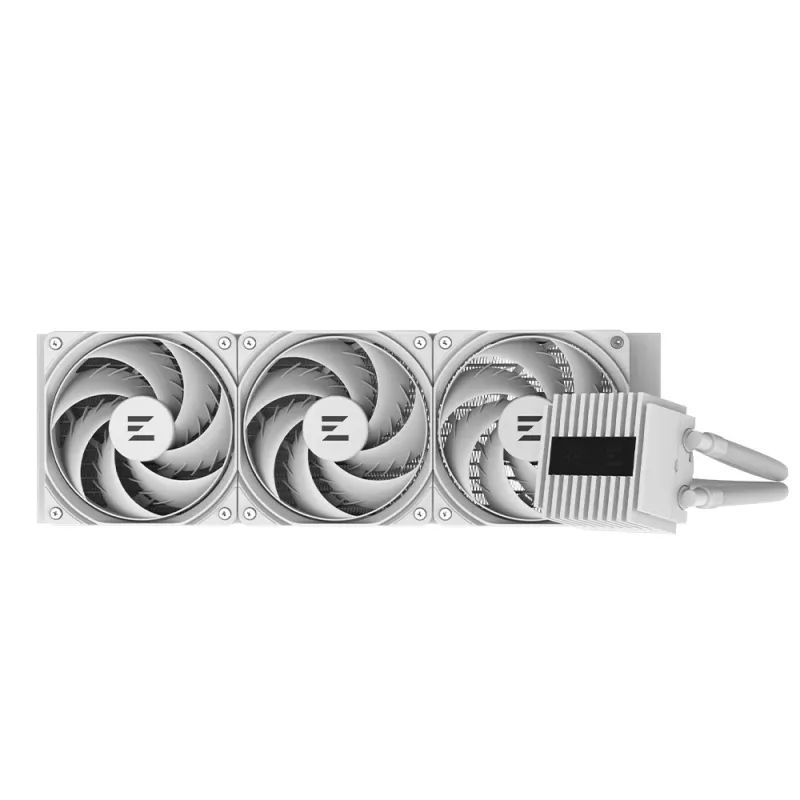

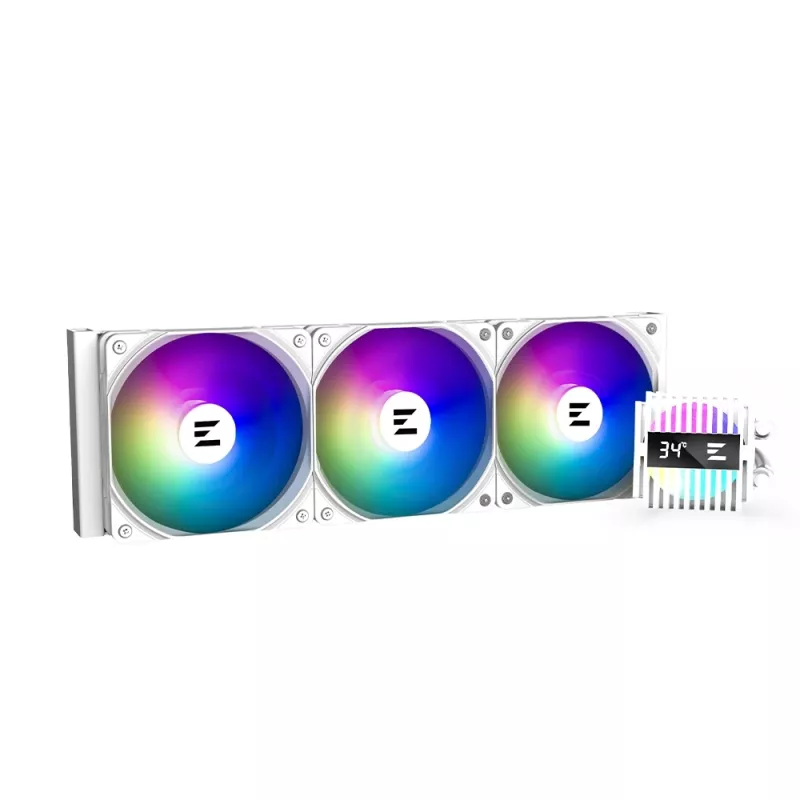

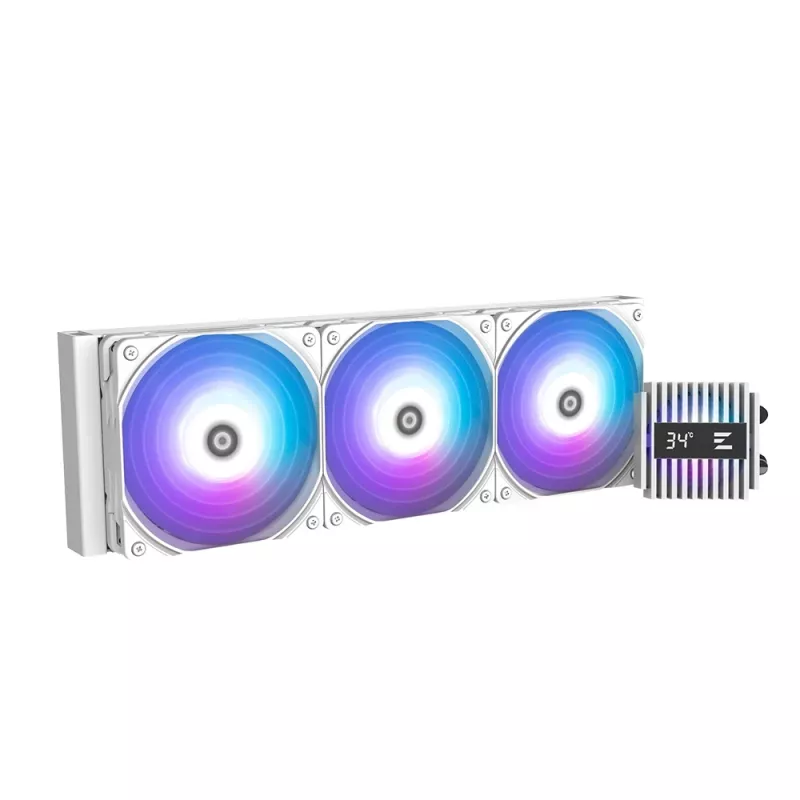

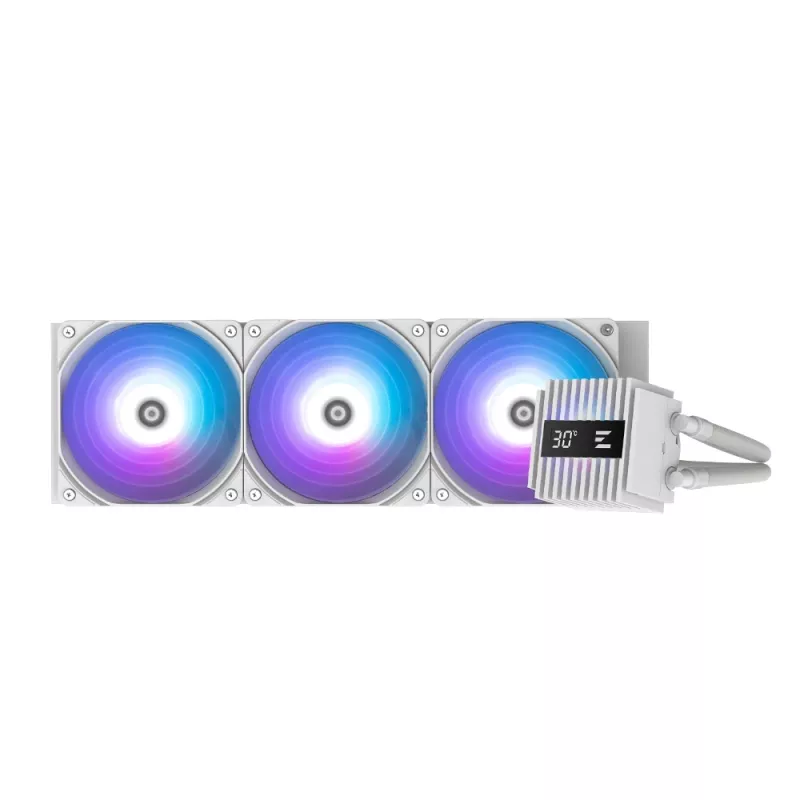

Sistema de arrefecimento de computador Zalman ALPHA2 A36 WHITE processador arrefecedor líquido tudo-em-um 12 cm

READY for Intel 14th Gen Processors & AM5
It is fully compatible with the latest intel’s processors as well as AMD Ryzen.

Power management technology for each processor is seamless with no compatibility issues.

Socket Compatibility
- Intel Socket : LGA1851/1700/1200/115X
- AMD Socket : AM5/AM4

Unique Design
- Distinctive pump head design with Addressable RGB lighting
- High-performance pump provides powerful, low-noise cooling
- The Alpha2 catches users' attention with various and esthetic effects

Live CPU Temperature Display
Alpha2 AIO features a Real-time display function that pulls the temperature from the BIOS, allowing users to monitor current temperature immediately.

Perfectly Synchronized ARGB
- Exclusive design of ARGB effect
- Sync with various motherboard RGB software

360˚ Rotatable Magnetic Pump Head
- Alpha2 pump head is designed to rotate 360º
- It can rotate freely according to direction of the tube and logo location
- The radiator can be mounted at various positions

Innovative Water Flow Pump Design
The innovative way to prevent pump overload by separating the inflow and discharge of coolant into dual flow paths.

Maximum cooling performance by minimizing residual fluid.

High-Performance Pure Copper Base
Cools down the CPU temperature more effectively

Zalman AF120 Annular Fan with Shark Fin Blades
Unlike regular cooling fan, specially designed Zalman AF120 Annular FAN with Shark fin blade provides minimum resistance to airflow allowing minimum operation noise.

Hydro Bearing, like ball bearing, does not come into contact with metal and lubricant layer replaces bearing. It causes low noise, low heat and shock-resistance that is extremely durable and long-lasting.

ZM-AF120 ARGB
1. The blade vibration is minimized by preventing the trembling of the blades during fan operation and the durability is enhanced.
2. Wind noise is minimized by suppressing the vortex phenomenon that occurs on the blades.
3. Airflow is maximized by minimizing the amount of air flow lost to the outer circumference of the rotor.

Vibrant ARGB Lighting Effect & Pre-installed Anti-vibration rubber pads
Stunning and bright ARGB colors shine through the AF120 presenting your build in the most beautiful light possible.

Optimized PWM control
PWM controls automatic adjustments to fan speed according to the user’s environmental noise level to provide optimal performance

Aluminum Radiator with Maximum Heat Dissipation Area
- Heat dissipation fins in aluminum radiator provides great airflow
- Fast cooling of coolant
- Mounting holes on both sides for easy installation
- Pull and Push set up for maximized air flow

Excellent thermal conductive thermal compound ZM-STC10
Alpha2 comes with ZM-STC10. STC10 provides ideal heat transfer to keep PC cool and ready for heavy loads. It provides excellent thermal conductivity by filling the space between the cooler base and CPU

How to use

Mount the radiator in a suitable case location using the provided screws in pull or push configuration for optimal airflow. Attach the pump head to the CPU socket and align it as needed — the magnetic head can be rotated 360° to orient the logo and tubing. Connect the ARGB and fan headers to the motherboard for lighting synchronization and PWM fan control. Apply the included ZM-STC10 thermal compound to the CPU heatspreader before securing the copper base of the pump to ensure correct thermal contact.

Recommendations

For best results, use motherboard software to synchronize ARGB effects and enable PWM control for automatic fan speed adjustment. Ensure radiator placement allows unobstructed airflow and periodically check tubing and fittings for secure attachment; replace thermal compound after several CPU remounts or every few years for maintained thermal performance.
