Sistema de refrigeração líquida Corsair Nautilus RS branco 78mm

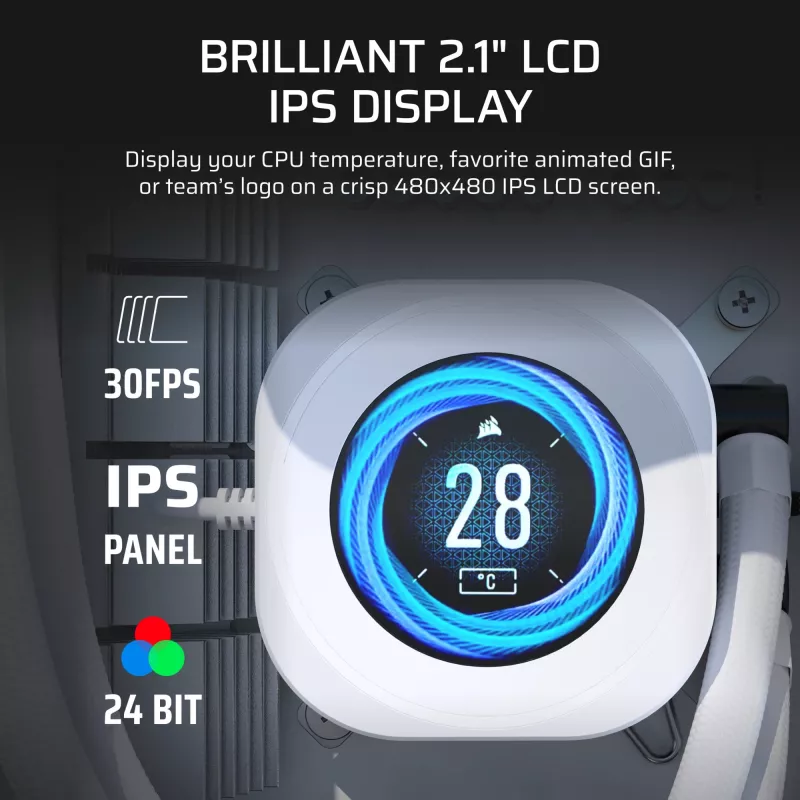

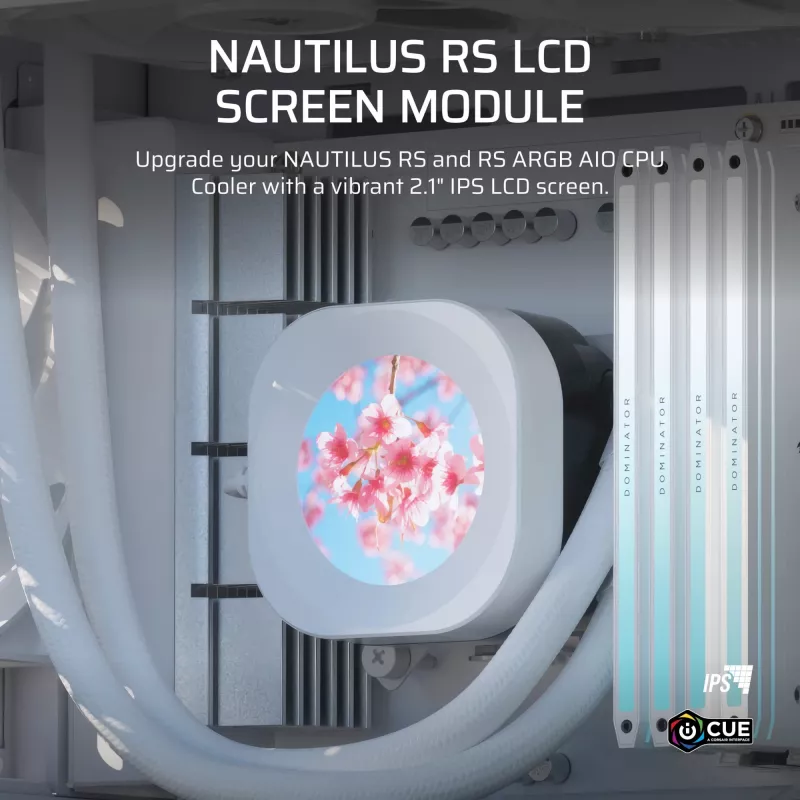

The Corsair Nautilus RS Display is a 78mm white LCD module designed for integration with liquid cooling systems. It provides a 480 x 480 IPS screen capable of showing CPU temperature, animated GIFs, logos and other visuals at 30 FPS with a 600 cd/m² backlight and over 16.7 million colors. Integration with iCUE software includes GIPHY access for easy display of memes and GIFs. The compact white design suits modern PC builds and attaches to the pump cap to provide clear real-time readouts and visual customization.

Advantages

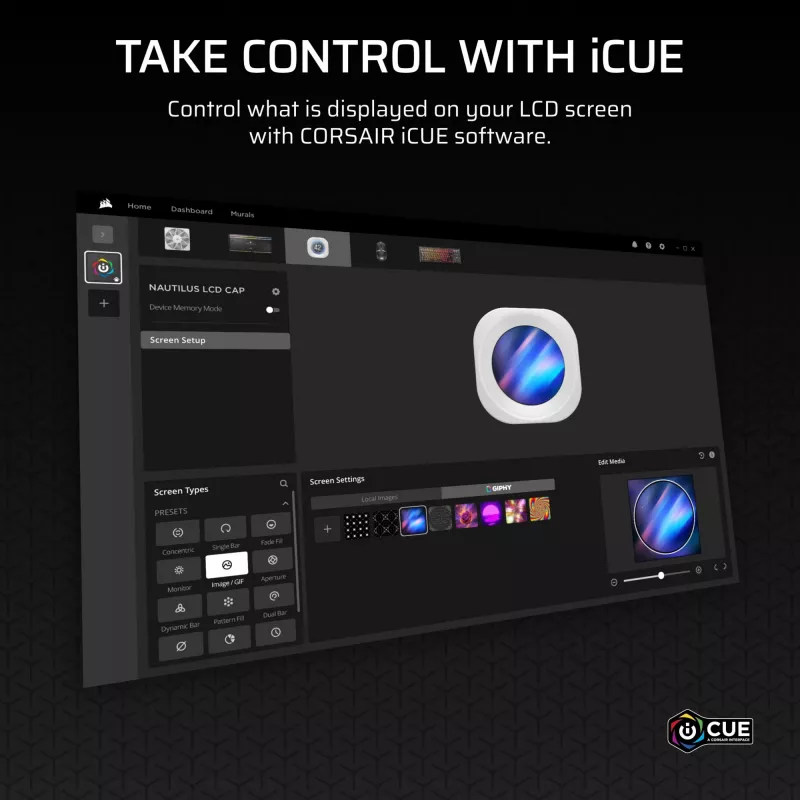

The display offers a bright, high-resolution IPS panel that reproduces detailed images and animations while maintaining a compact 78mm form factor. Tool-free installation lets you snap and latch the LCD Screen Module onto the pump cap and connect via a standard USB 2.0 header. Full iCUE integration, including GIPHY support, simplifies content management and customization.

Suitable for

• Monitoring coolant and CPU temperature in liquid cooling systems
• Displaying animated GIFs, team logos, or system information
• Custom visual elements in compact PC builds

Key specifications

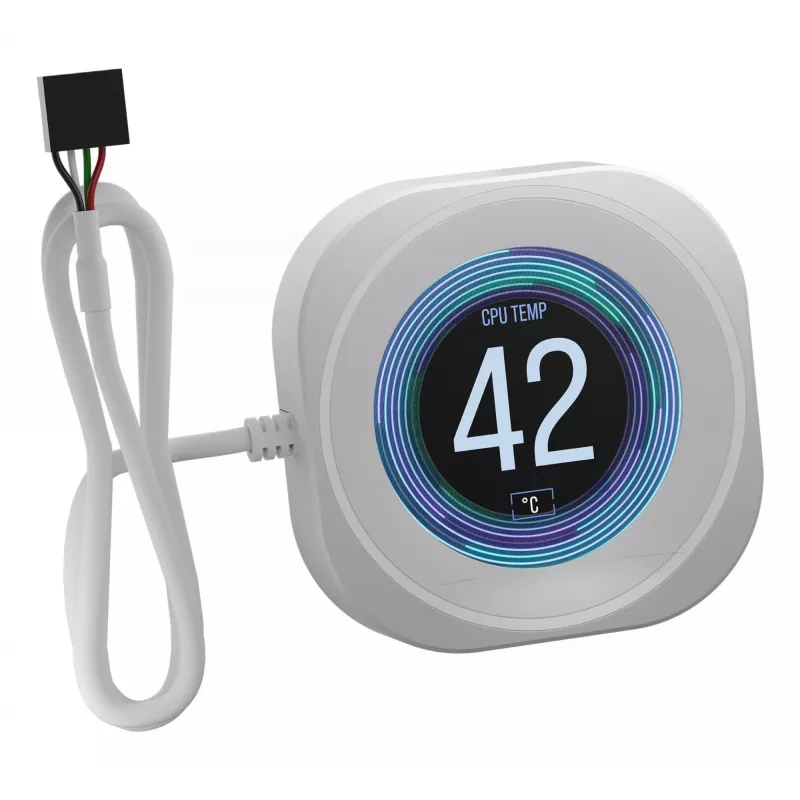

• Model: Corsair Nautilus RS Display (78mm)
• Display type: 480 x 480 IPS LCD, 30 FPS
• Brightness: 600 cd/m²
• Color depth: >16.7 million colors
• Interface: USB 2.0 header
• Colour: White
• Weight: 0.85 kg
• Manufacturer part number (MPN): CW-9061030-WW
• EAN: 0840440499671

How to use

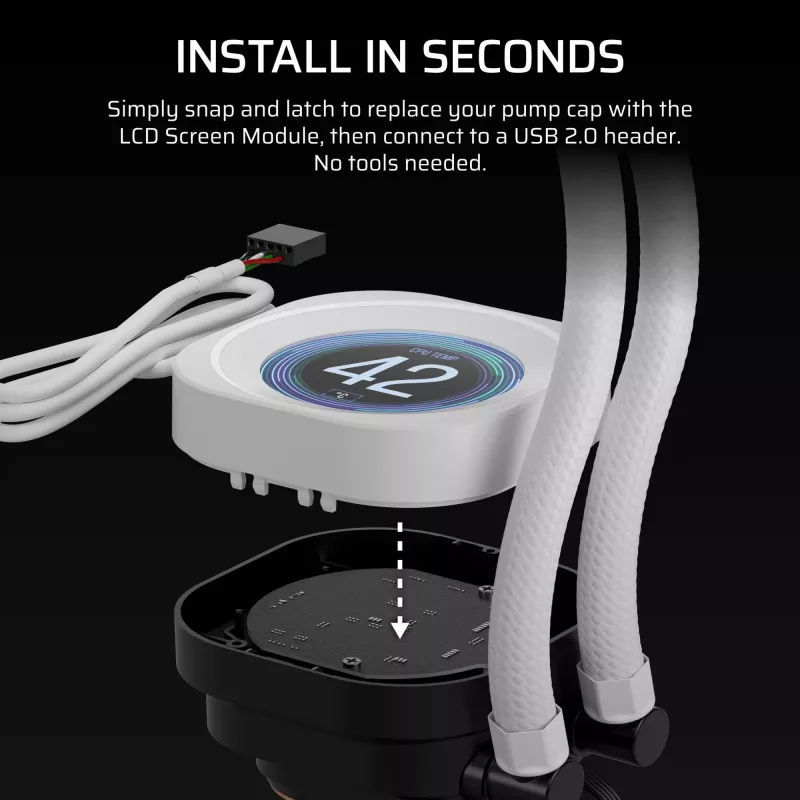

Remove the existing pump cap if present, align the Nautilus RS Display module with the pump cap mount, then snap and latch it into place. Connect the display to an available USB 2.0 header on the motherboard for power and data. Install Corsair iCUE software on the system to configure displayed content, access GIPHY integration, and monitor CPU or coolant temperatures through the app.

Recommendations

Use the iCUE software to set clear, high-contrast images for best readability; avoid prolonged display of static high-contrast content at maximum brightness to reduce potential image retention. Ensure the USB connection is secured and compatible with a USB 2.0 header on the motherboard.
