DJI Ronin RavenEye Sistema de transmissão de imagem

The DJI Ronin RavenEye Image Transmission System enables live camera preview and allows the use of ActiveTrack 3.0 with the DJI RS 2. The image is transmitted to the gimbal's display and to the Ronin app. When used with the DJI RSC 2, RavenEye allows remote control of the gimbal, image monitoring, and use of ActiveTrack 3.0, but the built-in gimbal display does not allow live image preview.

Key features

• Live camera preview and ActiveTrack 3.0 with DJI RS 2
• Image transmission to gimbal display and Ronin app
• Remote gimbal control, image monitoring, and ActiveTrack 3.0 with DJI RSC 2 (no live preview on built-in gimbal display)
• Mounts on the gimbal and connects to the camera via HDMI
• Connects to smartphone via WiFi
• Note: Ronin S and SC do not support remote control or ActiveTrack 3.0 via RavenEye

Specifications

• Brand: DJI
• MPN: CP.RN.00000100.01
• Compatibility: DJI RS 2 (Ronin-S2), DJI RSC 2 (Ronin-SC2), DJI Ronin-S, DJI Ronin-SC
• Frequency: 2.400-2.4835 GHz, 5.725-5.850 GHz
• Weight: 126 g
• Dimensions: 82 mm x 63 mm x 24 mm
• Transmission power (EIRP): 2.400-2.4835 GHz: <25dBm (FCC), <20dBm (CE/SRRC/MIC); 5.725-5.850 GHz: <25dBm (FCC/SRRC), <14dBm (CE)

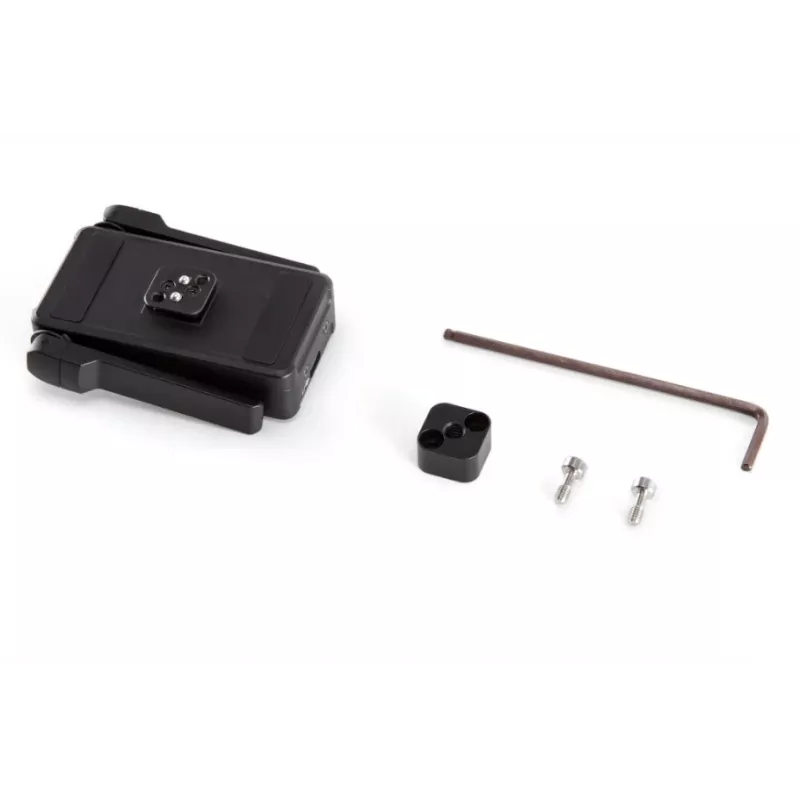

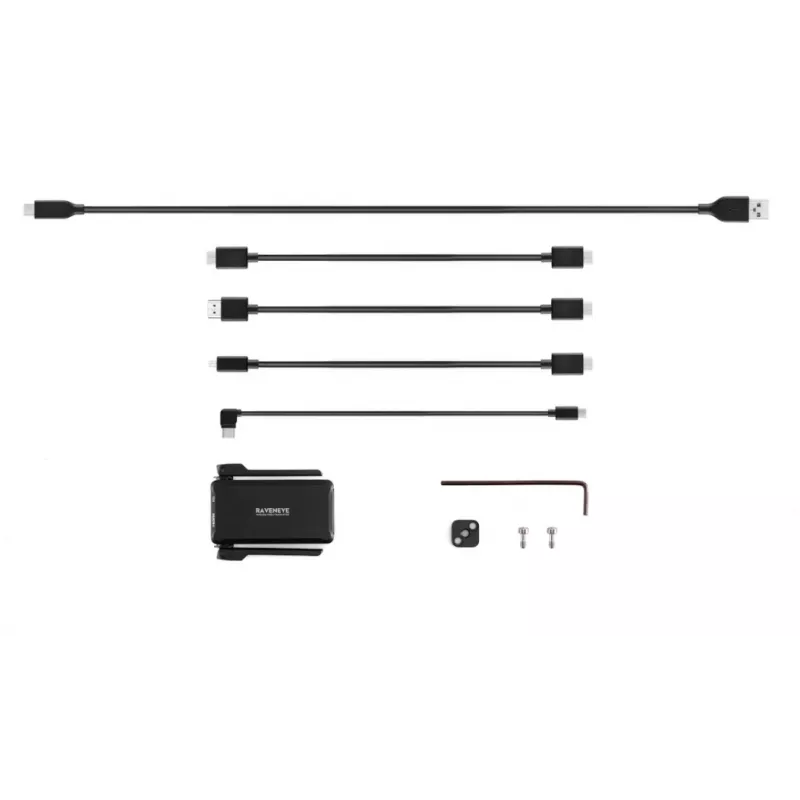

• In the box: Image transmitter × 1, Cold Shoe to 1/4''-20 adapter × 1, USB-C charging cable (40 cm) × 1, USB-C power cable (20 cm) × 1, Mini-HDMI to HDMI cable (20 cm) × 1, Mini-HDMI to Mini-HDMI cable (20 cm) × 1, Mini-HDMI to Micro-HDMI cable (20 cm) × 1, M4 screw × 2, Allen key (3 mm) × 1
