Sistema de videoconferência Jabra PanaCast Room Kit para salas grandes (9000-231)

The Jabra PanaCast Room Kit (9000-231) is an all-in-one video conferencing system built for large meeting spaces, providing complete coverage for rooms with up to 16 participants. This EMEA configuration combines the Jabra PanaCast 55 VBS video bar, the Jabra PanaCast SpeakerMic and a Jabra Cam L1 camera to deliver panoramic 4K-class video and room-filling audio in a single, plug-and-play package. It is purpose-built for Microsoft Teams Rooms (Android) and Zoom Rooms, and runs on the Microsoft Device Ecosystem Platform (MDEP) for enterprise-grade security.

Advantages

A three-camera array captures a 180° panoramic field of view at up to 3840 x 1080 resolution, while AI-powered Intelligent Zoom and a virtual director automatically frame and track whoever is speaking. Picture-in-Picture keeps both the active speaker and the full room in view at once. Audio is handled by an 8-microphone beamforming array with noise cancellation and echo cancellation, plus four built-in speakers; the included PanaCast SpeakerMic plugs into the video bar to extend pickup and playback into every corner of the room. Integrated people-counting feeds occupancy data back to IT for smarter space management, and the expandable, certified design simplifies both installation and ongoing administration.

Suitable for

• Large conference and boardrooms seating up to 16 people
• Microsoft Teams Rooms and Zoom Rooms deployments
• Hybrid meetings that need panoramic coverage and clear far-end audio
• Organisations standardising on a consistent, manageable room platform

Key specifications

• Brand: Jabra
• Model: PanaCast Room Kit
• MPN: 9000-231 (EMEA)
• EAN: 5706991036596

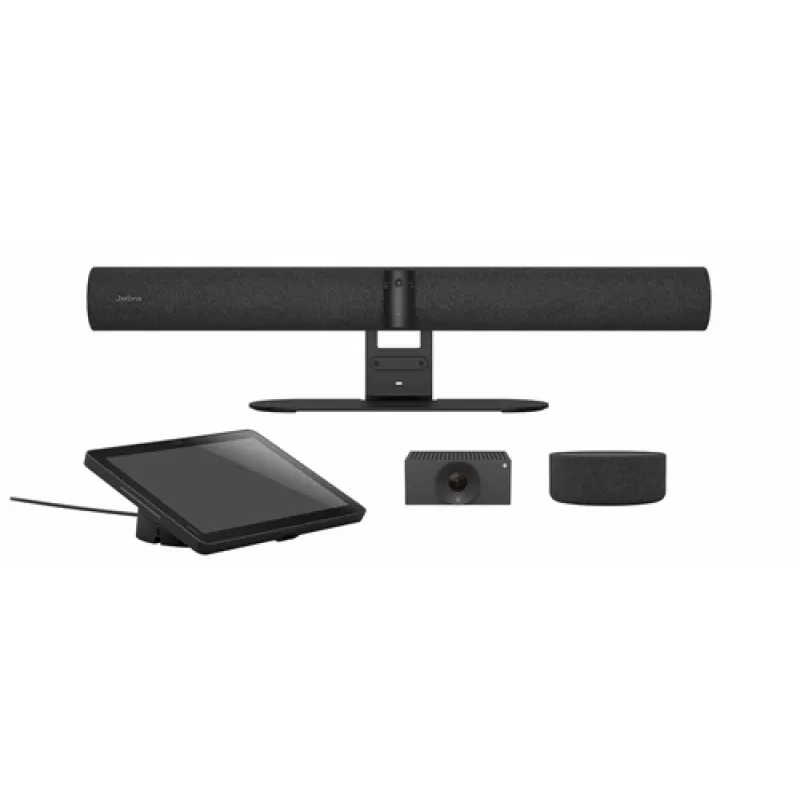

• Components: PanaCast 55 VBS video bar, PanaCast SpeakerMic, Jabra Cam L1
• Video resolution: 4K Ultra HD (up to 3840 x 1080)
• Field of view: 180° horizontal panoramic
• Cameras: 3-camera array with Intelligent Zoom up to 6x
• Microphones: 8-element beamforming array with noise and echo cancellation
• Speakers: 4 integrated speakers plus PanaCast SpeakerMic
• Room capacity: up to 16 participants
• Platforms: Microsoft Teams Rooms (Android), Zoom Rooms
• Security: Microsoft Device Ecosystem Platform (MDEP)
• Connectivity: USB-A, USB-C, 2x HDMI out, Gigabit Ethernet (PoE), Wi-Fi 5, Bluetooth
• Colour: Graphite

How to use

Mount the PanaCast 55 video bar above or below the room display and connect the included Jabra Cam L1 and PanaCast SpeakerMic. Connect the bar to the room network over Gigabit Ethernet (PoE supported) or Wi-Fi, attach a display via HDMI, and power on. Pair the Jabra Control IP touch controller, then select your meeting platform (Microsoft Teams Rooms or Zoom Rooms) and follow the on-screen setup to configure video framing and audio. Remote management and firmware updates are handled centrally through Jabra and platform admin tools.

Recommendations

Position the video bar centred on the main display at a height with clear sightlines to seated participants, and place the PanaCast SpeakerMic toward the centre of the table for the widest audio pickup. Use a wired Ethernet connection for the most stable performance during large meetings, and keep the firmware up to date to access the latest AI framing, people-count and platform improvements.
