Sistema de videoconferência Yealink MVC S90-C5-004 8 MP Ethernet LAN sistema de videoconferência de grupo

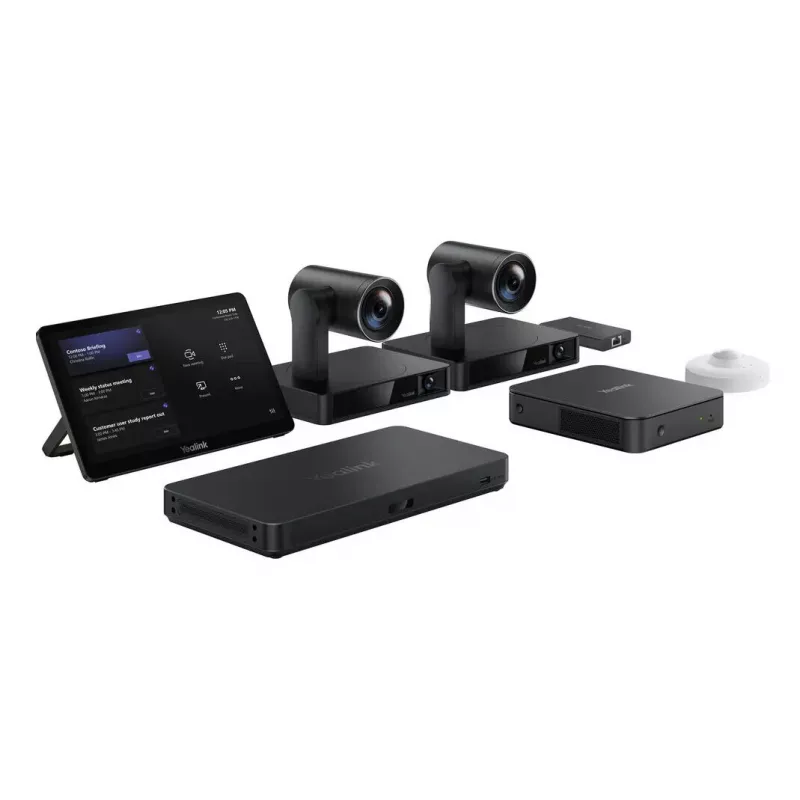

Yealink MVC S90 is a video conferencing system designed for extra-large conference rooms. The set includes the MINI-PC MCore Pro, a touch panel MTouch Plus, an intelligent 4K PTZ camera UVC86 and an AVHub for audio and video processing. AVHub manages screen layout, supports Yealink’s multi-camera solution with up to nine connected cameras and enables multi-speaker tracking with voice-driven switching to meet the needs of very large meeting rooms, classrooms and training spaces.

Advantages

The system provides scalable multi-camera support and automatic speaker tracking to improve meeting clarity and engagement. 4K PTZ video capture combined with built-in audio processing and a compact MINI-PC simplifies installation and reduces the amount of additional equipment required. The solution supports wireless content sharing and flexible connectivity options for integration with existing network infrastructure.

Key specifications

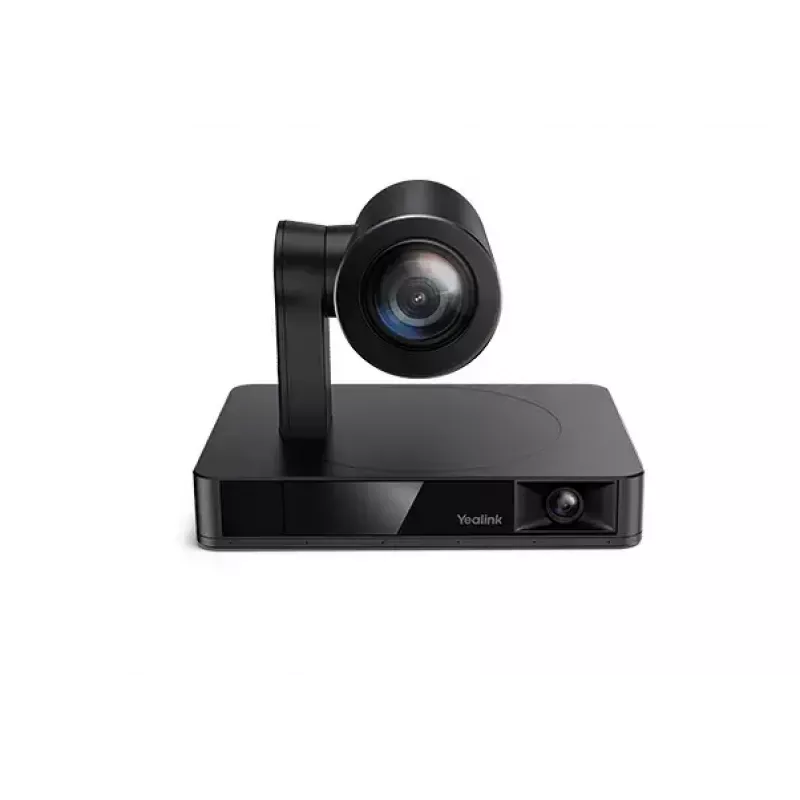

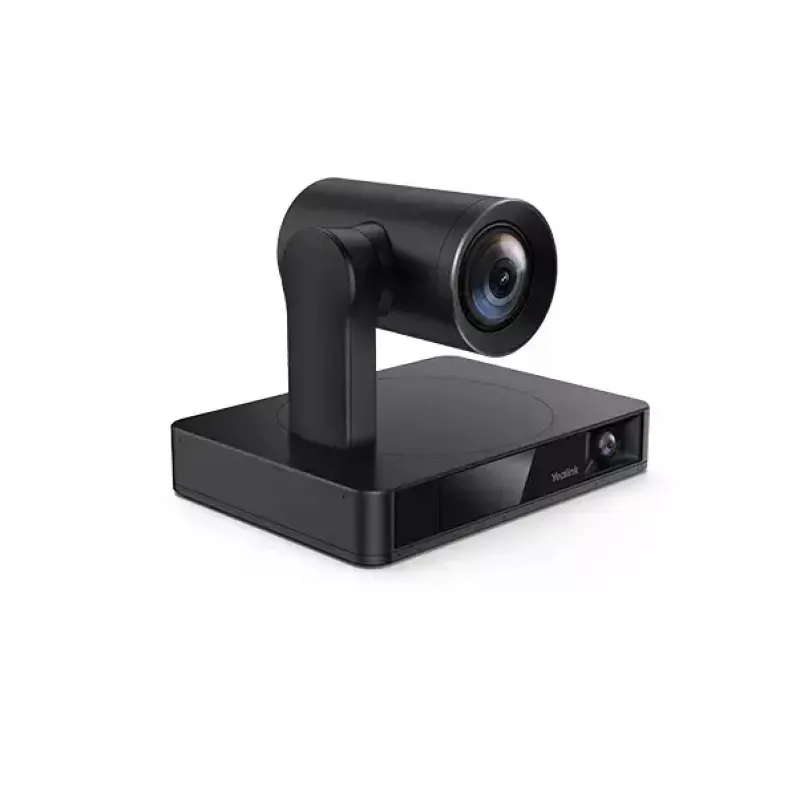

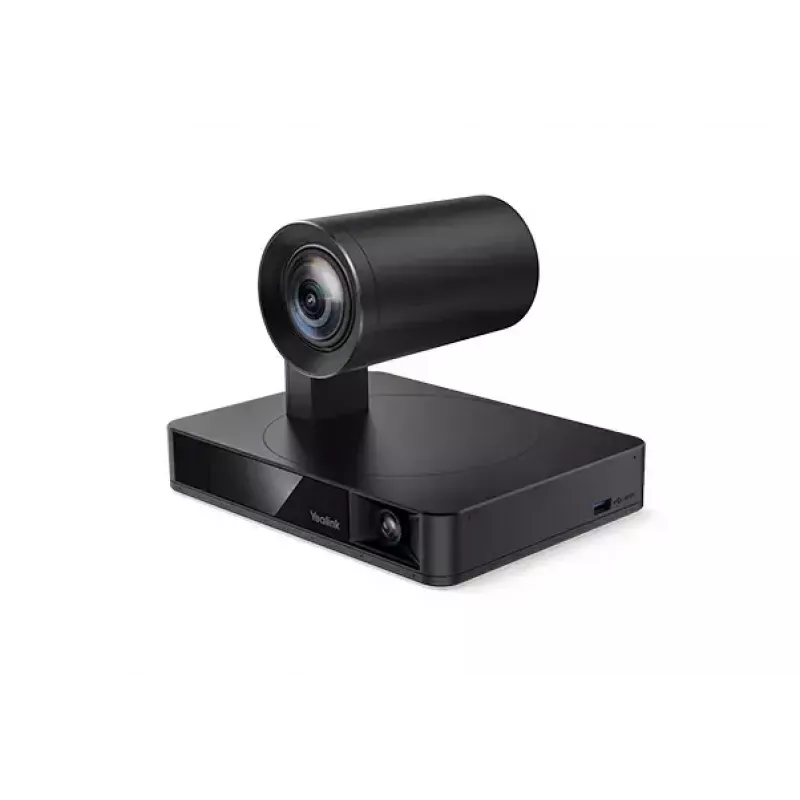

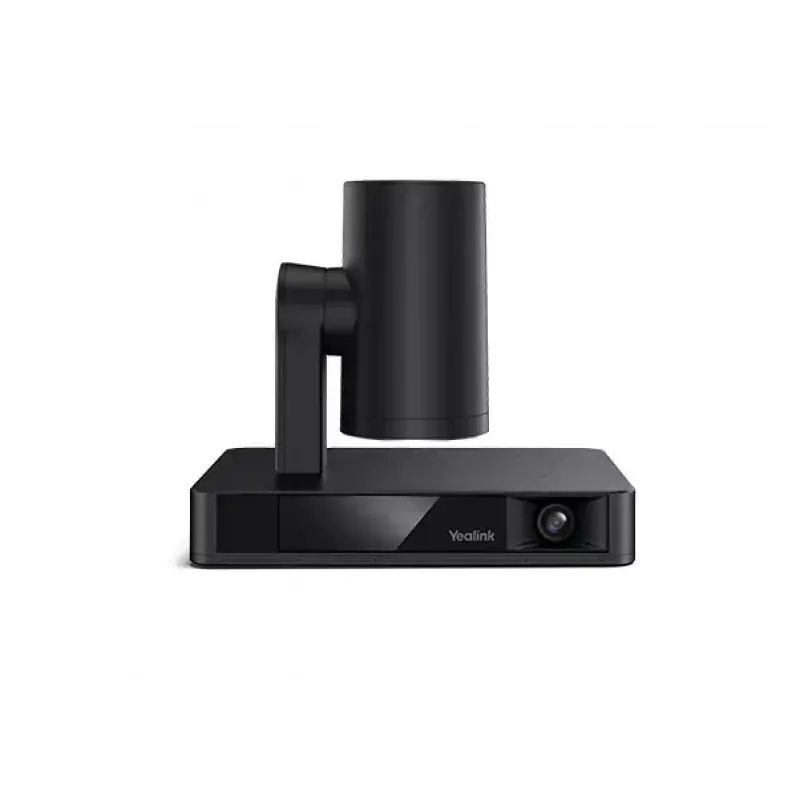

• Camera: UVC86 intelligent PTZ, 4K Ultra HD 3840 x 2160 at 30 fps
• Multi-camera support: up to 9 cameras connected simultaneously
• Speaker tracking: multi-speaker tracking with voice incentive mechanism

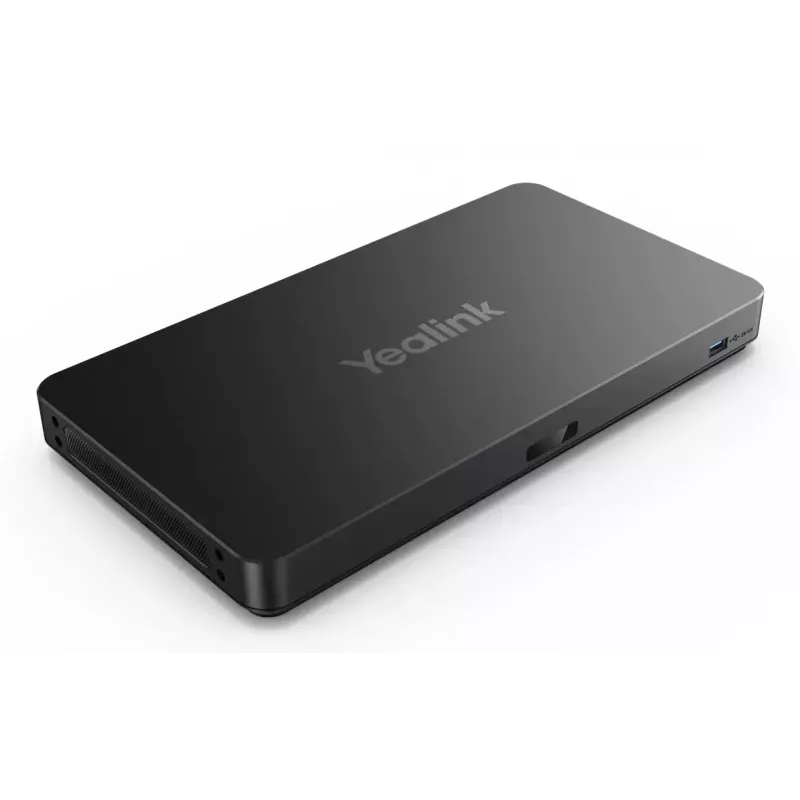

• Processing unit: MINI-PC MCore Pro

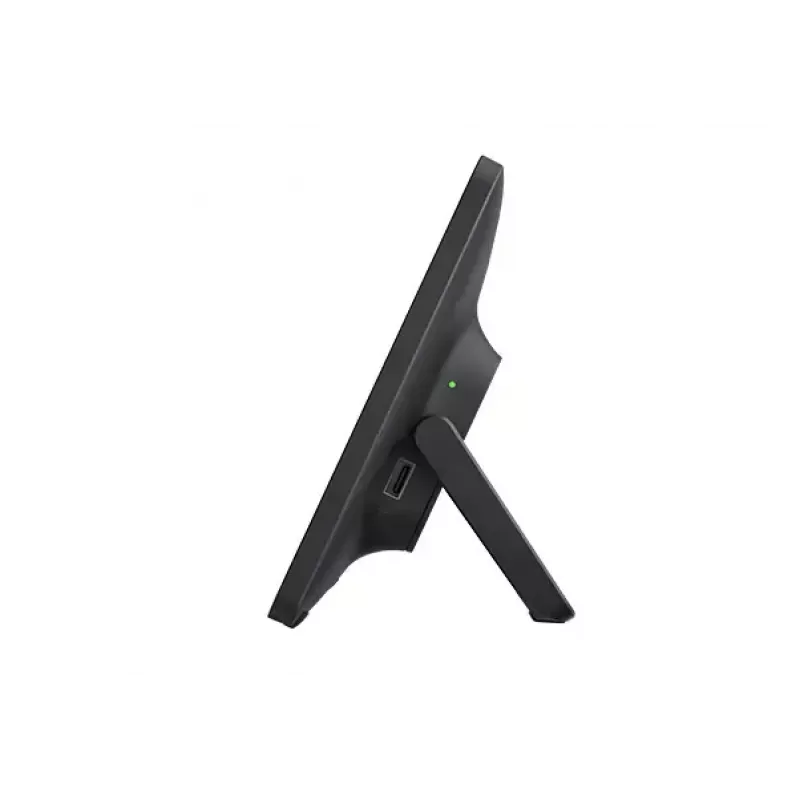

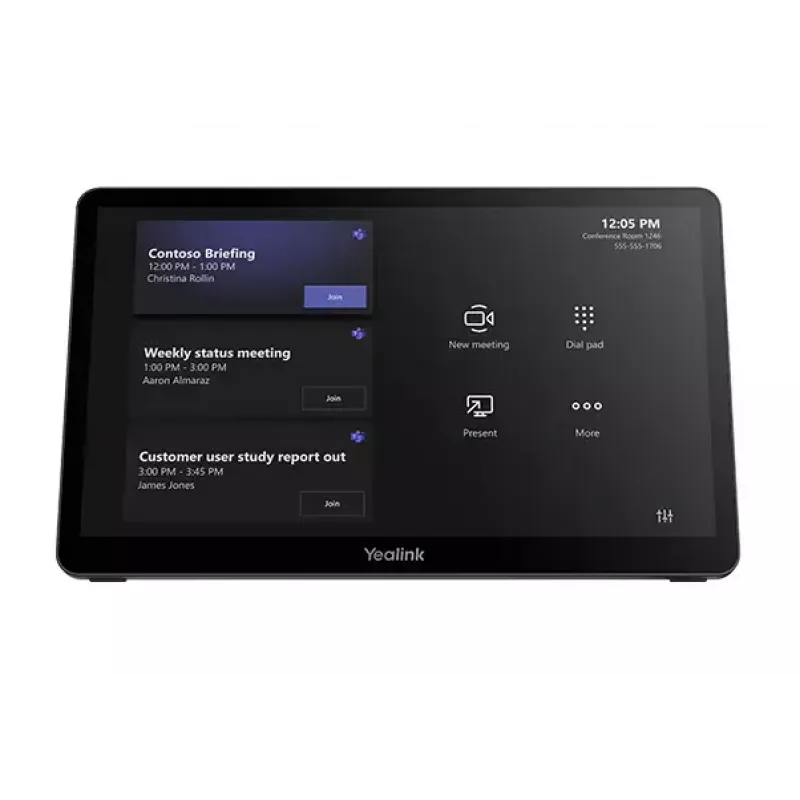

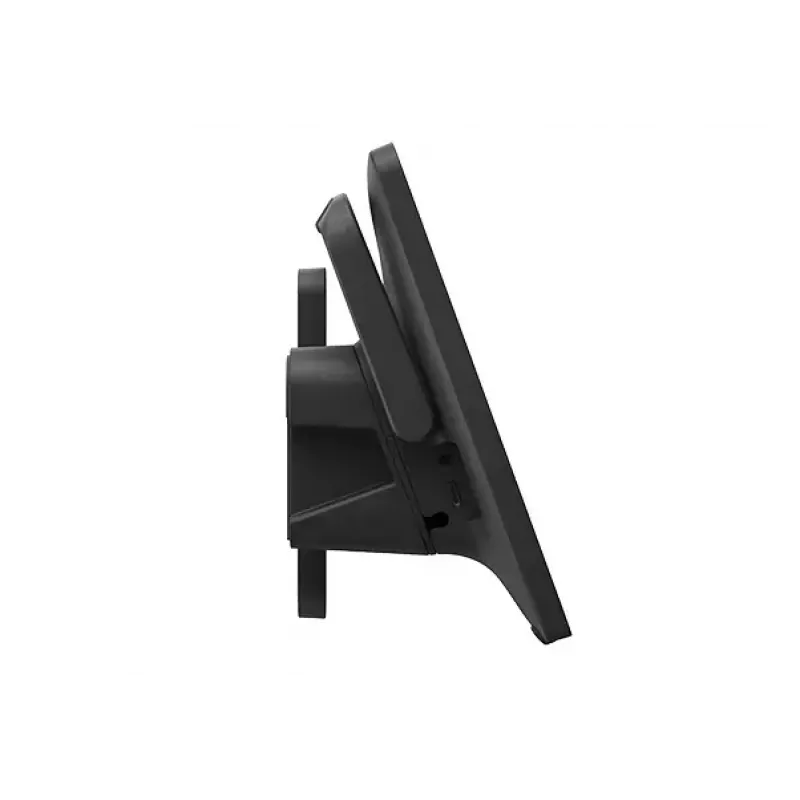

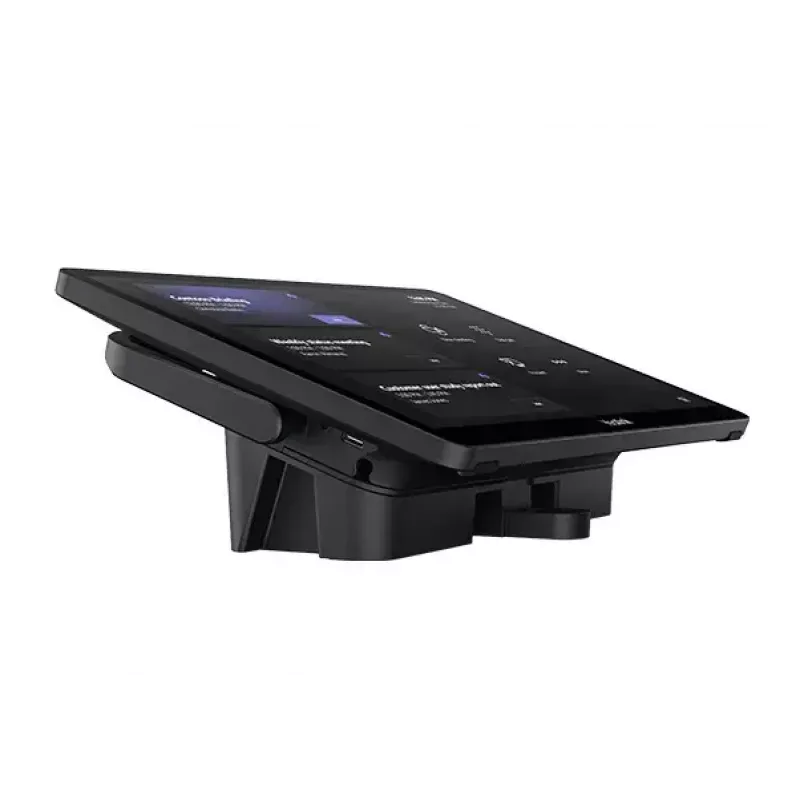

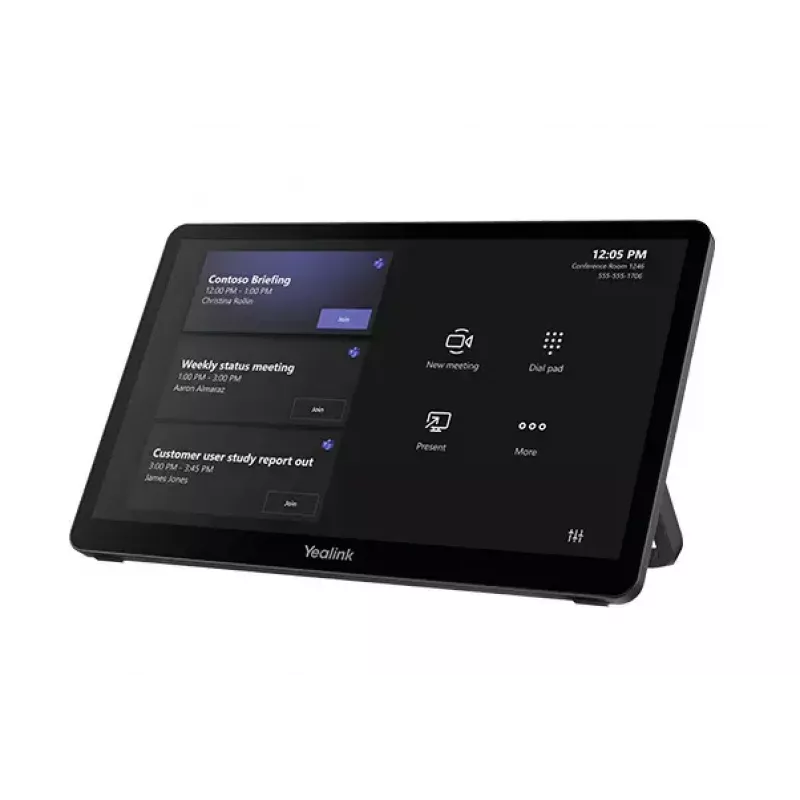

• Touch controller: MTouch Plus

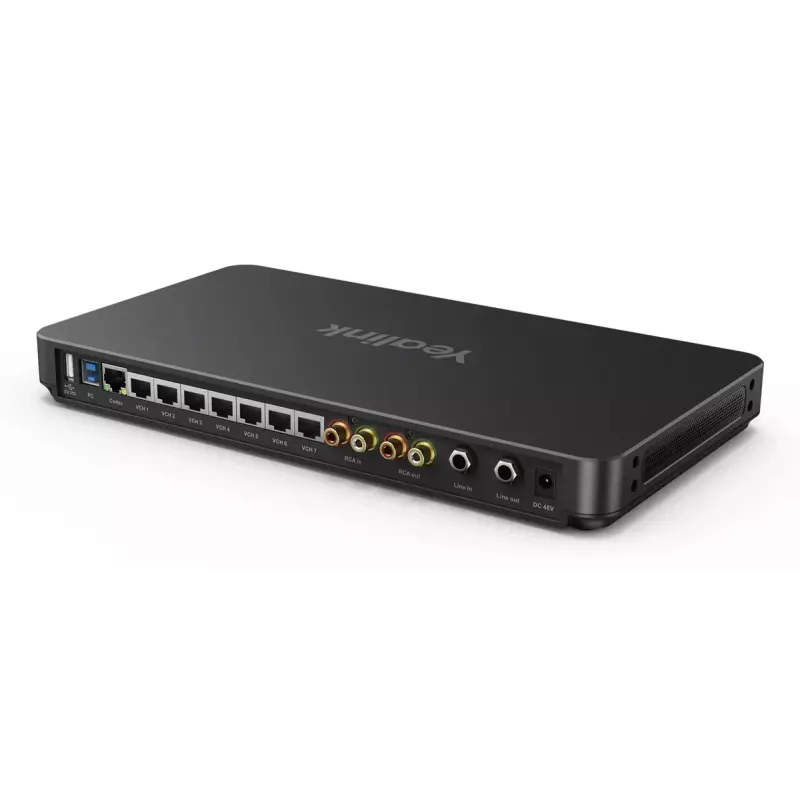

• Audio/video hub: AVHub for layout and AV processing
• Storage: total storage capacity 128 GB; internal memory 8196 MB
• Network: Ethernet LAN 10/100/1000 Mbit/s; Wi‑Fi supported
• Camera sensors: dual camera 8 MP with 1.7x zoom
• Connectivity: wireless content sharing, Bluetooth
• Power: AC power source
• Colors: Black, Grey

How to use

Install the MINI-PC MCore Pro in the meeting room rack or cabinet and connect the AVHub between the cameras, audio devices and displays. Mount the UVC86 PTZ camera(s) in positions that cover the room and connect them to the AVHub; the system can manage up to nine cameras. Use the MTouch Plus panel to control calls, camera presets, layout switching and start wireless content sharing. Configure network settings (Ethernet or Wi‑Fi) and power the components from an AC source. During meetings, enable the multi-speaker tracking feature to allow the system to switch focus automatically according to the active speaker.

Recommendations

For best performance in extra-large rooms, position cameras to minimise blind spots, use wired Ethernet where possible for stable bandwidth, and ensure the AVHub firmware and controller software are kept up to date. Consider professional installation to optimise camera placement and audio pickup for multi-speaker tracking.
