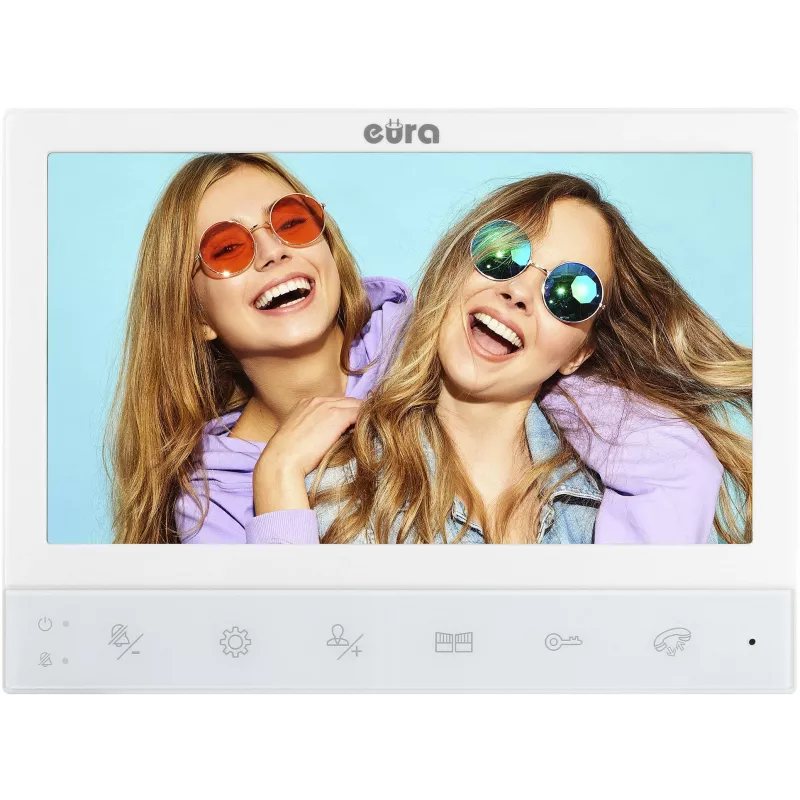

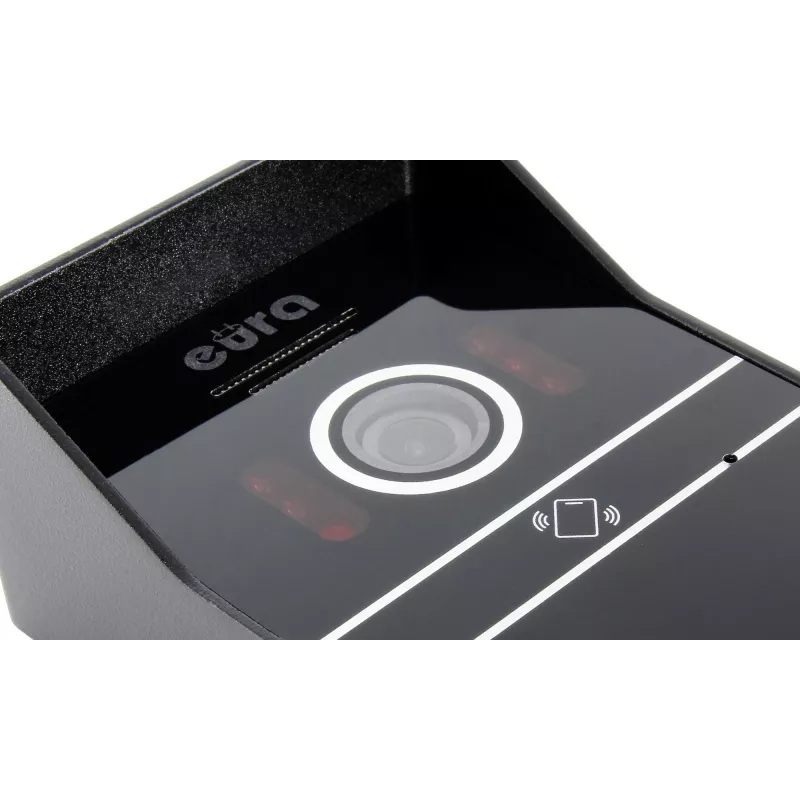

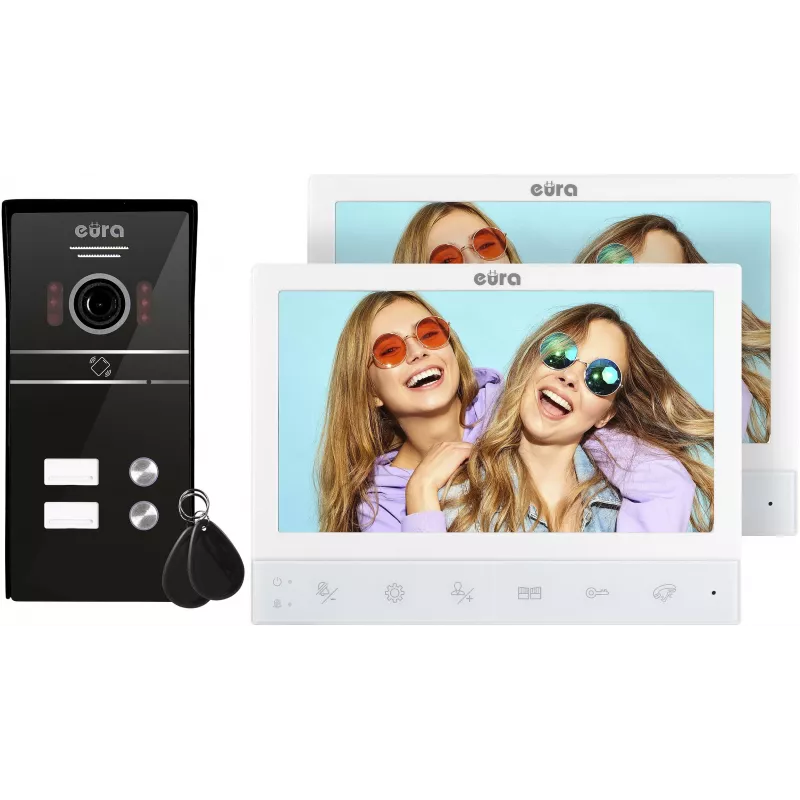

EURA VDP-80C5 videoporteiro para duas famílias, branco, 2x LCD de 7 polegadas, FHD, câmara 1080p, leitor RFID, montagem saliente

The EURA VDP-80C5 is a dual-family video intercom system in white, featuring two 7-inch TFT-LCD monitors and a surface-mounted outdoor panel. It supports access control and visitor identification with a 1080p camera and RFID reader.

Key features

• Dual-family system (2 units)
• 7-inch TFT-LCD monitors
• 1080p camera resolution
• RFID reader (13.56 kHz MIFARE)
• Motion sensor for video recording
• Voice message recording
• Night lighting: 5 IR LEDs with twilight sensor
• Hands-free communication
• 12 ringtones
• SD/micro SD card slot (up to 128 GB, Class 10)
• Menu languages: Polish, English, Italian, French, Russian

Specifications

• Brand: Eura
• Model: VDP-80C5
• Product colour: White
• Display resolution: 1920 x 1080 pixels
• Outdoor unit power supply: 12-15V DC
• Number of connecting wires: 4 (for each unit)
• Number of supported units: 2
• Outdoor unit power consumption (standby/operation): 1.5 W / 3.6 W
• Camera image resolution: 1080p
• Camera sensor type: 1/3'' CMOS
• Camera viewing angle horizontal/vertical: approx. 110° / approx. 60°
• Proximity reader: Yes
• Proximity reader operating frequency: 13.56 kHz (MIFARE)
• Max. reader radiation power: <10mW
• Protective hood: Yes
• Housing material: Aluminium alloy
• Number of supported outputs: 1
• Output types: 12V DC 350mA
• Lock activation time: 1-10 seconds (depending on monitor)
• Proximity key fob reader: Yes
• Outdoor unit operating temperature range: -18°C ~ +40°C
• Outdoor unit dimensions (W x H x D): 145 x 70 x 42 mm
• Outdoor unit net weight: 250 g
• Protection rating: IP65
• Monitor power supply: 12-15V DC
• Video signal parameters: CVBS, CVI, TVI, AHD
• Number of connecting wires: 4
• Number of supported outputs: 2
• Lock activation time: 2 s
• Monitor power consumption (standby/operation): 3 W / 7 W
• Monitor screen size: 7''
• Screen type: Colour TFT-LCD
• Screen resolution: 1024 x 600 pixels
• Output types: N.O. contact, max DC 24V/1A
• Card slot (SD/micro SD): Yes (128 GB, Class 10)
• Number of ringtones: 12
• Hands-free: Yes
• Menu languages: Polish, English, Italian, French, Russian
• Protection rating: IP20
• Monitor operating temperature range: 0°C ~ +40°C
• Monitor dimensions (W x H x D): 130 x 175 x 18 mm
• Monitor net weight: 300 g
