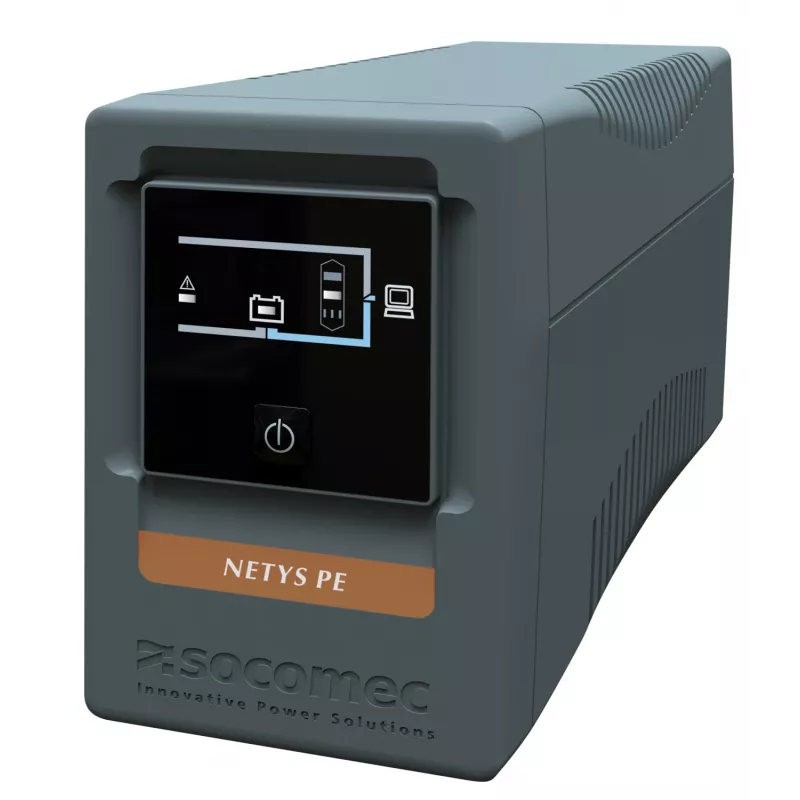

Socomec NETYS PE NPE-0850 fonte de alimentação ininterrupta (UPS) Line-Interactive 0,85 kVA 480 W 4 saídas AC

The Socomec NETYS PE NPE-0850 is a line-interactive uninterruptible power supply (UPS) designed to protect small office/home office (SOHO) and point-of-sale (POS) equipment. With 0.85 kVA / 480 W output capacity, a compact Mini Tower form factor and four IEC C13 outlets, it uses sealed lead-acid (VRLA) batteries to provide short-term backup power and safeguard connected devices from outages and voltage disturbances.

Advantages

The UPS offers automatic voltage regulation (AVR) to stabilize output voltage and reduce unnecessary transfers to battery mode, extending battery life for critical outages. A graphical control panel with LCD/LED icons provides clear operating status. Multiple IEC 320 (C13) sockets simplify connection to computers and IT peripherals, and integrated NTP protection secures LAN/ADSL data lines against overvoltage. The unit is certified to EMC IEC/EN 62040-2, AS 62040.2 CE and RCM standards.

Suitable for

• Home offices and small business desktops
• Point-of-sale (POS) terminals and retail workstations
• Network equipment with LAN/ADSL connections requiring surge protection
• Peripherals and devices needing short-term backup during power interruptions

Key specifications

• Model: Socomec NETYS PE NPE-0850
• Output power capacity: 0.85 kVA
• Output power: 480 W
• AC outlets: 4 × IEC C13 (IEC 320)
• Battery type: Sealed Lead Acid (VRLA)
• Typical backup time: ~3 minutes at full load
• Form factor: Mini Tower
• Product colour: Black
• Weight: 6 kg
• Certifications: EMC IEC/EN 62040-2, AS 62040.2 CE, RCM

How to use

Place the UPS on a stable, ventilated surface and connect critical equipment to the IEC C13 outlets. Ensure the UPS is connected to a properly grounded mains supply and switch it on using the front-panel controls. Monitor the graphical LCD/LED icons to check operating mode, load and battery status. The AVR function operates automatically to correct minor voltage fluctuations; if a sustained power failure occurs the UPS will supply battery power to connected devices until mains power is restored or the battery is depleted.

Recommendations

For optimal performance, avoid loading the UPS beyond its 480 W rating, perform periodic battery tests and replace the VRLA battery according to the manufacturer’s maintenance schedule. Use the integrated LAN/ADSL protection for critical network lines and keep the ventilation area free from dust and obstructions.
