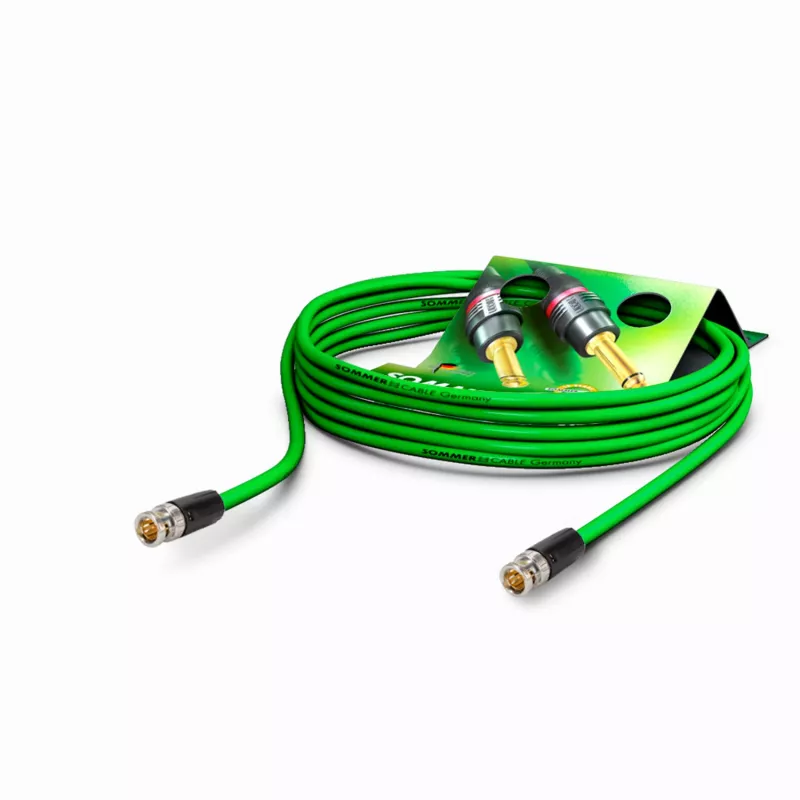

Sommer Cable SC-Vector 0.8/3.7 Cabo de ligação de vídeo HD-SDI, ficha BNC macho para ficha BNC macho, NEUTRIK, verde, 5 m (VTGR-0500-GN-SW)

This professional coaxial video cable delivers pristine HD-SDI and 3G-SDI signal transmission up to 3 Gbps over a 1-meter run, terminated with BNC male connectors on both ends. Engineered for broadcast and AV installations, it ensures reliable, low-loss performance for high-definition video.

Advantages

The SC-Vector 0.8/3.7 features a solid bare copper conductor (0.8 mm, AWG 20) and gas-foamed PE dielectric for minimal attenuation. Double shielding—tinned copper braid with 95% coverage plus AL/PT foil with 100% coverage—provides superior immunity to electromagnetic interference, preserving signal integrity in demanding environments.

Suitable for

• HD-SDI, 3G-SDI, and SD-SDI video transmission
• Broadcast studios, OB vans, and post-production facilities
• Professional AV installations, digital signage, and medical imaging
• Connecting cameras, monitors, routers, and video patch panels

Key specifications

• Cable type: Coaxial video cable, 75 Ohm impedance
• Connectors: BNC male to BNC male
• Length: 1.0 m
• Conductor: Solid bare copper, 0.8 mm diameter (AWG 20)
• Dielectric: Gas-foamed PE, 3.7 mm diameter
• Shielding: Double shielded (tinned copper braid 95% + AL/PT foil 100%)
• Outer jacket: PVC, 6.0 mm diameter, black
• Supported standards: HD-SDI, 3G-SDI, SD-SDI, HDTV
• Max data rate: 3 Gbps

Recommendations

For reliable HD-SDI connectivity in fixed installations, pair this cable with high-quality BNC patch panels and ensure proper strain relief to maintain long-term performance.
