Sophos 802.11ac Wave 2 módulo WiFi para SG-XG 135w Rev.3

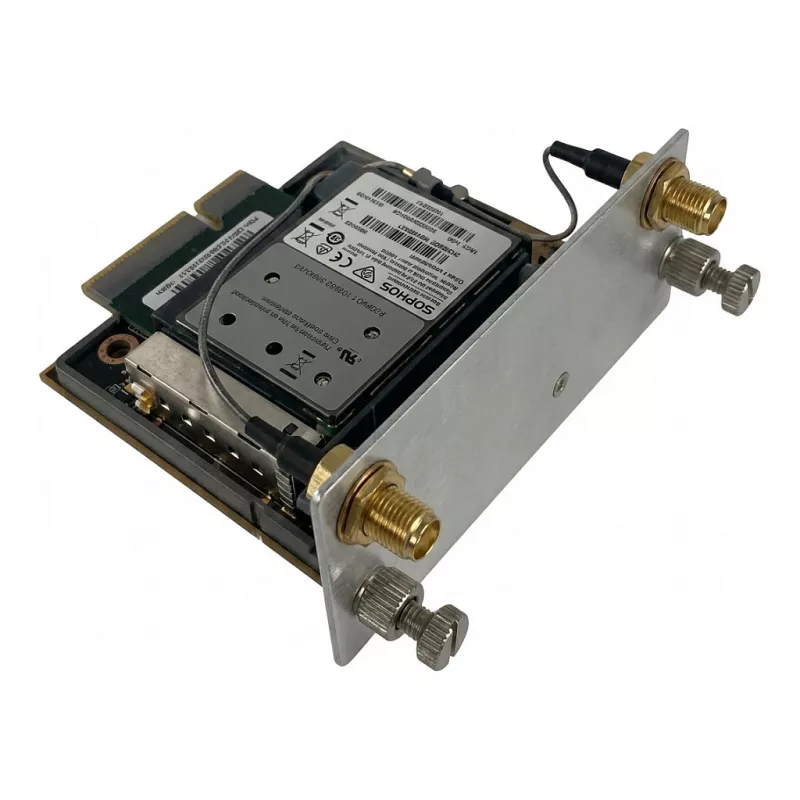

The Sophos 802.11ac Wave 2 WiFi Module is a high-performance wireless adapter designed specifically for the Sophos SG-XG 135w Rev.3 network security appliance. This PCIe Mini Card delivers dual-band connectivity with MIMO 2x2:2 technology, providing reliable and fast wireless access for up to 50 concurrent clients. Ideal for small to medium businesses, it integrates seamlessly with Sophos Central, Sophos Firewall (SFOS), and Sophos UTM management platforms, ensuring robust security and easy deployment.

Advantages

This WiFi module offers exceptional value by adding enterprise-grade wireless capabilities to your existing Sophos firewall. With support for the latest 802.11ac Wave 2 standard, it delivers combined data rates of up to 1167 Mbps (867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz). The internal omnidirectional antennas provide wide coverage, while Power over Ethernet (PoE) simplifies installation by eliminating the need for separate power cables. Advanced security protocols including WPA2-Enterprise and WPA3 ensure your network remains protected.

Suitable for

• Small and medium businesses requiring secure, high-speed WiFi
• Sophos SG-XG 135w Rev.3 users wanting to add or upgrade wireless functionality
• Deployments needing centralized management via Sophos Central or UTM
• Environments demanding client isolation, captive portal, and rogue AP detection

Key specifications

• Wireless Standard: IEEE 802.11ac Wave 2
• Frequency Bands: Dual-band (2.4 GHz, 5 GHz)
• MIMO Configuration: 2x2:2
• Max Data Rate (5 GHz): 867 Mbps
• Max Data Rate (2.4 GHz): 300 Mbps
• Ethernet Ports: 1 x Gigabit Ethernet (RJ-45)
• Power Method: Power over Ethernet (PoE) 802.3af
• Antenna Type: Internal Omni-directional
• Antenna Gain: 3 dBi (2.4 GHz), 4 dBi (5 GHz)
• Management: Sophos Central, Sophos Firewall (SFOS), Sophos UTM
• Security Protocols: WPA2-Enterprise, WPA3
• Mounting: Wall, Ceiling
• Operating Temperature: 0°C to 40°C
• Power Consumption: 10.5 W (Max)
• Recommended Concurrent Clients: Up to 50
• Features: Captive Portal, Client Isolation, Rogue AP Detection
• LED Indicators: System, Wireless (2.4 GHz, 5 GHz), Ethernet

Recommendations

For optimal performance, ensure your Sophos SG-XG 135w Rev.3 is running the latest firmware. This module is designed exclusively for this model and is not compatible with other devices. Use a PoE switch or injector to power the module via the Ethernet port.
