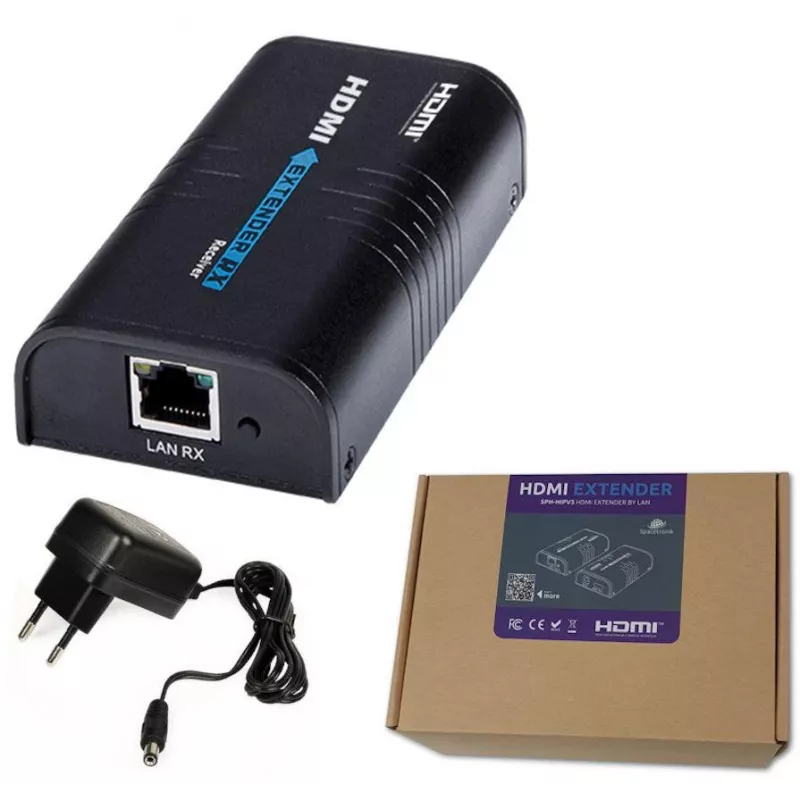

SPACETRONIK SPH-HIPv4 receptor HDMI-over-IP Multicast RX

The SPACETRONIK SPH-HIPv4 is an HDMI over IP receiver that converts an HDMI signal to IP for transmission over Cat 5e or Cat 6 twisted pair cable. It supports UDP/IP multicast and point-to-multipoint connections, with a maximum cable length of 120m.

Key features

• HDMI to IP converter (receiver)
• Transmission via a single Cat 5e/6 cable
• UDP/IP (multicast) transmission
• Point-to-multipoint connections
• 1080p image mode
• Maximum cable length: 120m

Specifications

• Brand: Spacetronik
• Model: SPH-HIPv4
• Version: v4.0
• Supported video formats: DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p
• Maximum Cat 5e/6 cable length: 100/120m
• Operating temperature: -10...60°C
• Humidity: 20%-90% (non-condensing)
• Dimensions: 110x58x26mm
• Power supply: 230V AC / 5 V DC
