SPELSBERG Abox Pro SL-16² Caixa de derivação, IP66/IP67/IP69, 16 mm², 5 polos, cinzento 41644001

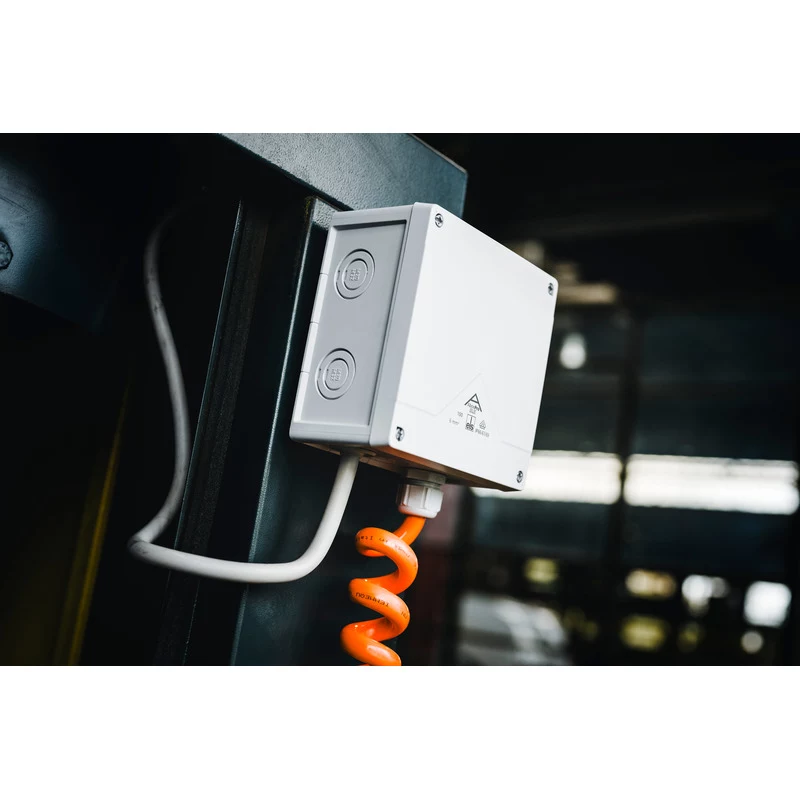

With an IP69 rating, the SPELSBERG Abox Pro SL-16² withstands high-pressure, high-temperature washdowns, making it ideal for demanding industrial and outdoor environments. This 16 mm² junction box is built for reliable power distribution.

Overview

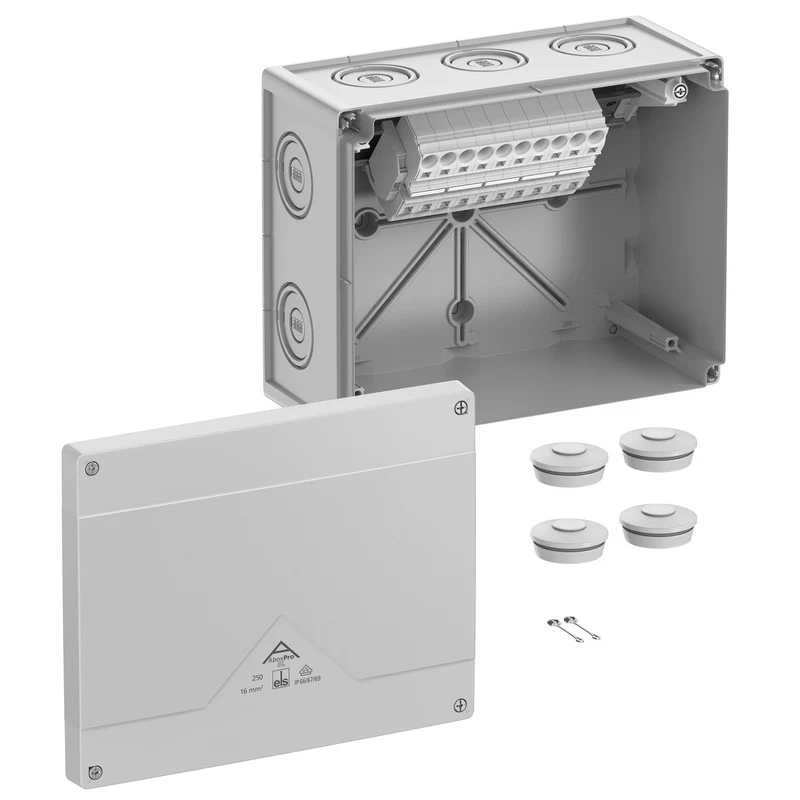

The Abox Pro SL-16² is a robust polycarbonate enclosure designed for electrical connections up to 16 mm². It features a 5-pole screw terminal block (L1, L2, L3, N, PE) and eight elastic membrane cable entries (M25), providing secure and flexible wiring. The grey (RAL 7035) housing is halogen-free and UV-resistant, ensuring long-term durability.

What stands out

• Triple protection: IP66, IP67, and IP69 for dust, immersion, and high-pressure cleaning.
• High current capacity: rated at 76 A with 690 V insulation voltage.
• Wide temperature range: operates from -35 °C to +80 °C.
• Impact resistant: IK08 rating protects against mechanical stress.
• Quick-release lid fasteners for easy access during maintenance.

Technical details

• Material: Polycarbonate (PC), grey (RAL 7035)
• Nominal cross-section: 16 mm²
• Rated insulation voltage: 690 V
• Rated current: 76 A
• Number of poles: 5 (L1, L2, L3, N, PE)
• Terminal type: Screw terminals
• Cable entries: 8 x M25 elastic membranes
• Operating temperature: -35 °C to +80 °C
• Glow wire test: 750 °C
• Impact resistance: IK08
• Halogen-free: Yes
• UV resistant: Yes
• Mounting: Internal/External
• Standards: EN 60670-22, VDE

Our verdict

A heavy-duty junction box that excels in harsh conditions, offering exceptional protection and reliable performance for professional electrical installations.
