Splitter de vídeo Gembird DSP-8PH4-001

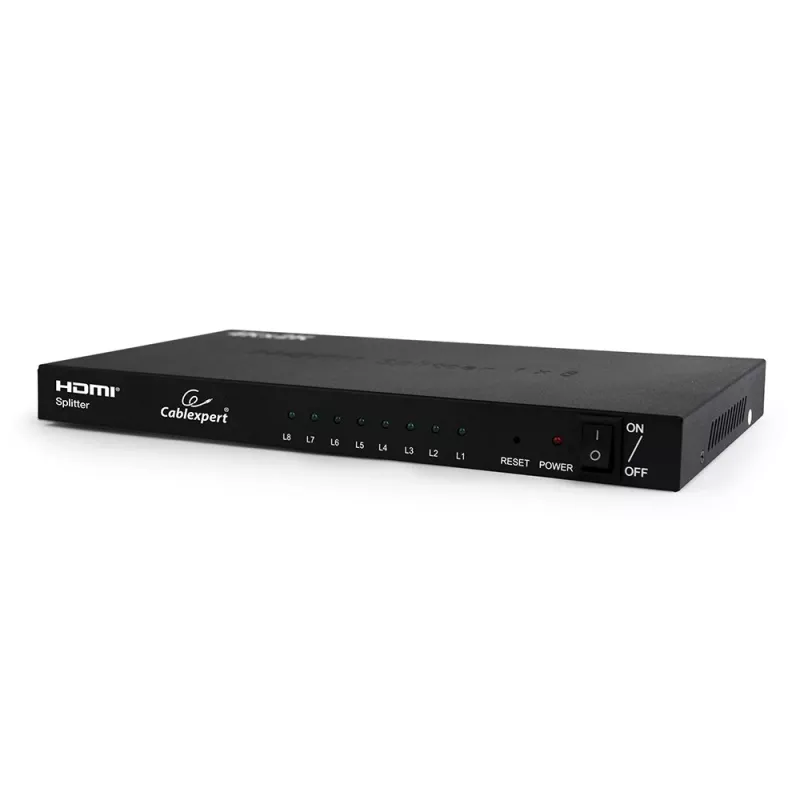

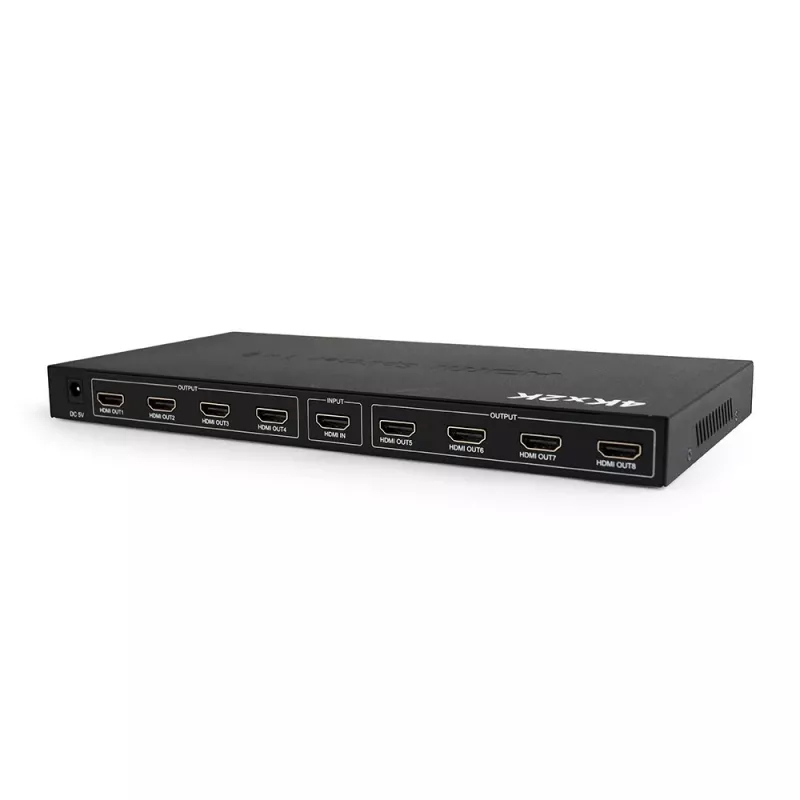

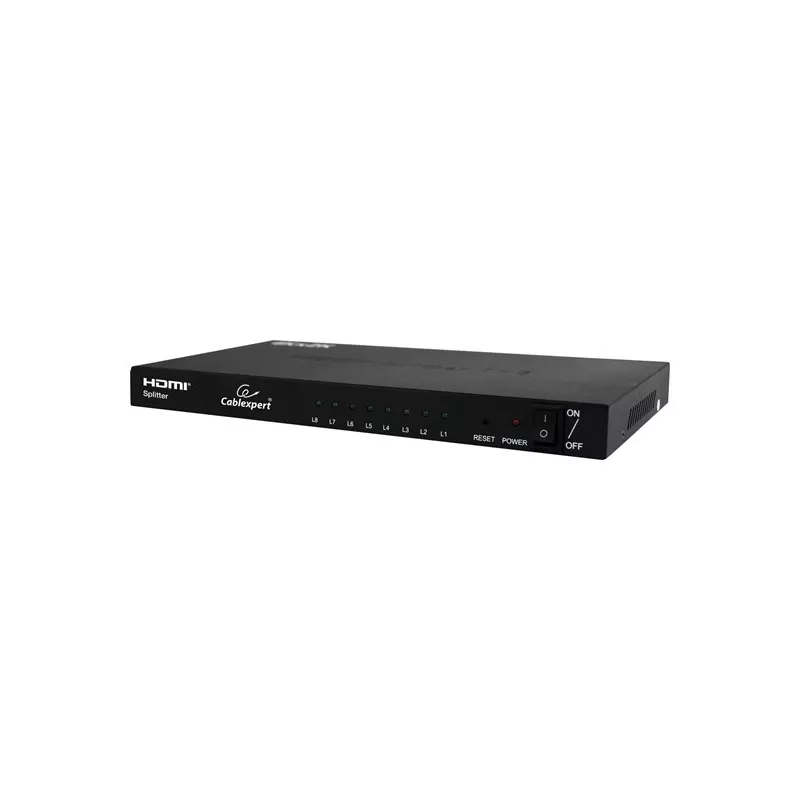

The Gembird DSP-8PH4-001 is an HDMI video splitter that duplicates one HDMI input to eight HDMI outputs. It supports up to 1920 x 1080 resolution and is built in a durable steel casing with a compact footprint (258 x 120 x 30 mm). The unit operates from a 5V power supply and is suitable for fixed installations where a single source needs to be displayed on multiple screens.

Advantages

The device sends a single HDMI signal to eight displays simultaneously while an integrated signal amplifier helps maintain video quality across multiple outputs. Its metal housing provides durability and the compact size and lightweight design simplify installation in home theatre, classroom or conference room environments. The splitter uses standard HDMI connections and is compatible with most HDMI-equipped sources and displays.

Suitable for

• Home theatre systems
• Classrooms and lecture halls
• Conference and meeting rooms
• Digital signage with multiple screens

Key specifications

• Model: Gembird DSP-8PH4-001
• Video port type: HDMI
• Number of outputs: 8
• Maximum resolution: 1920 x 1080 (Full HD)
• Power input: 5 V
• Housing: steel, black
• Dimensions: 258 x 120 x 30 mm
• Weight: 0.7 kg

How to use

Connect the HDMI source (for example a Blu-ray player, PC or media player) to the splitter's input port, then connect up to eight HDMI displays to the output ports. Apply the supplied 5V power adapter to the unit and power it on. Confirm that each connected display is set to the correct HDMI input. The splitter will replicate the source signal to all connected screens at the supported resolution.

Recommendations

To preserve signal quality at Full HD, use high-quality HDMI cables and avoid cable runs that exceed recommended lengths for HDMI. If some displays do not show the signal, verify power connection and cable integrity; ensure source resolution is supported by all connected displays.
