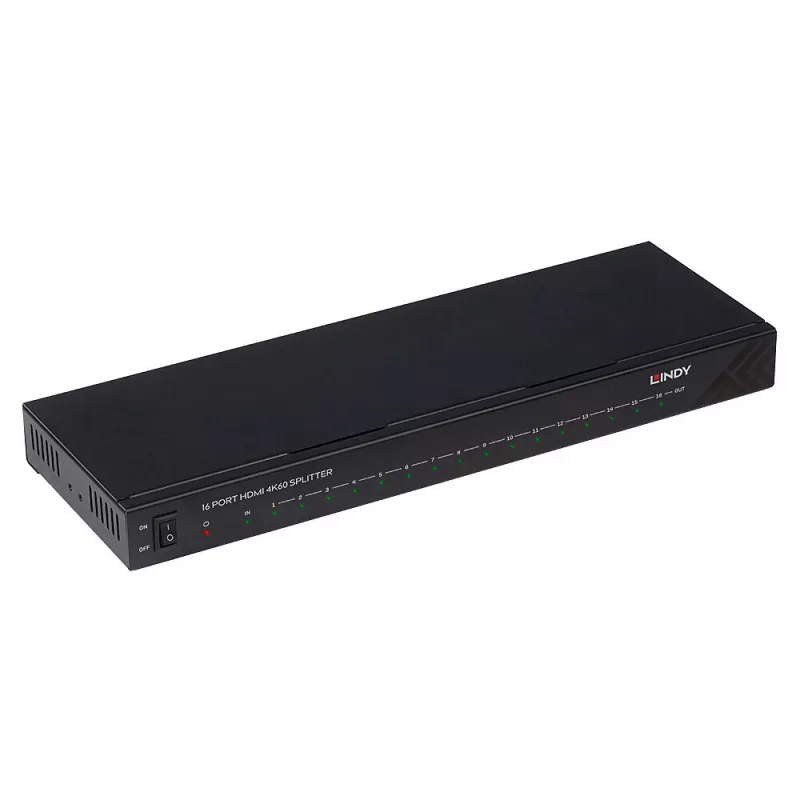

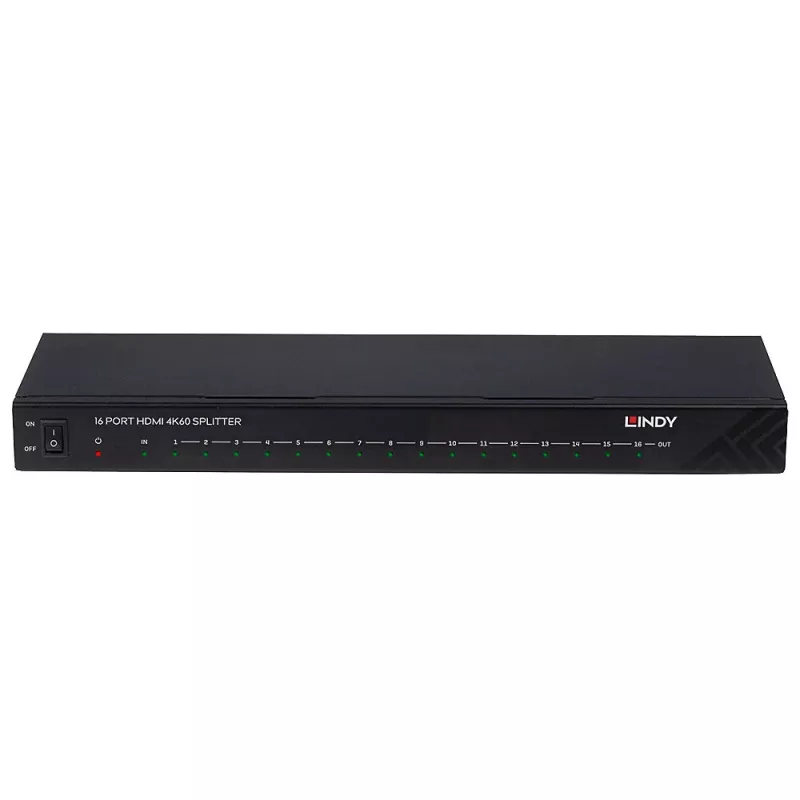

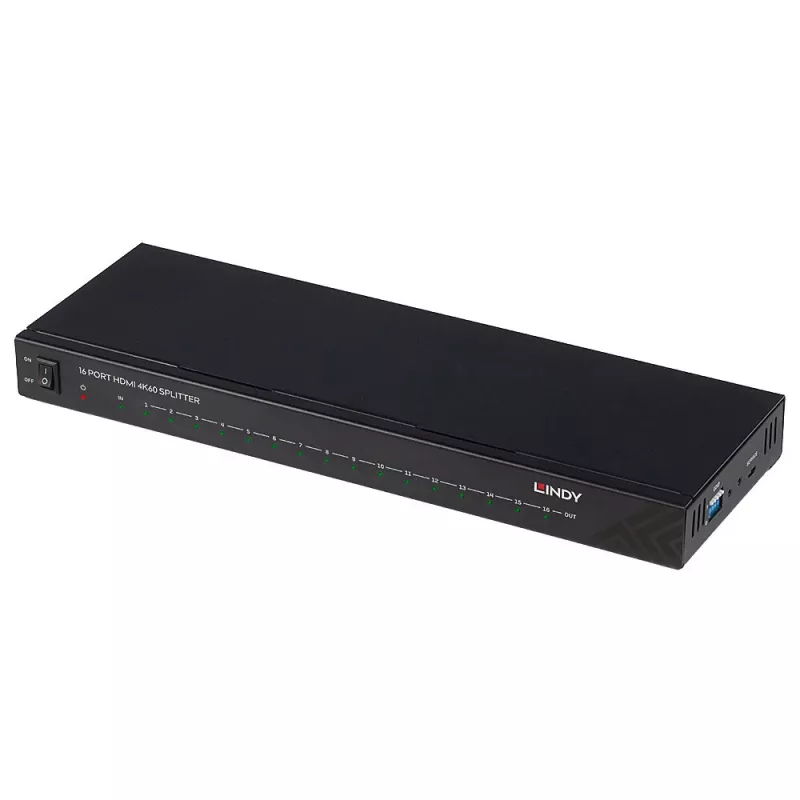

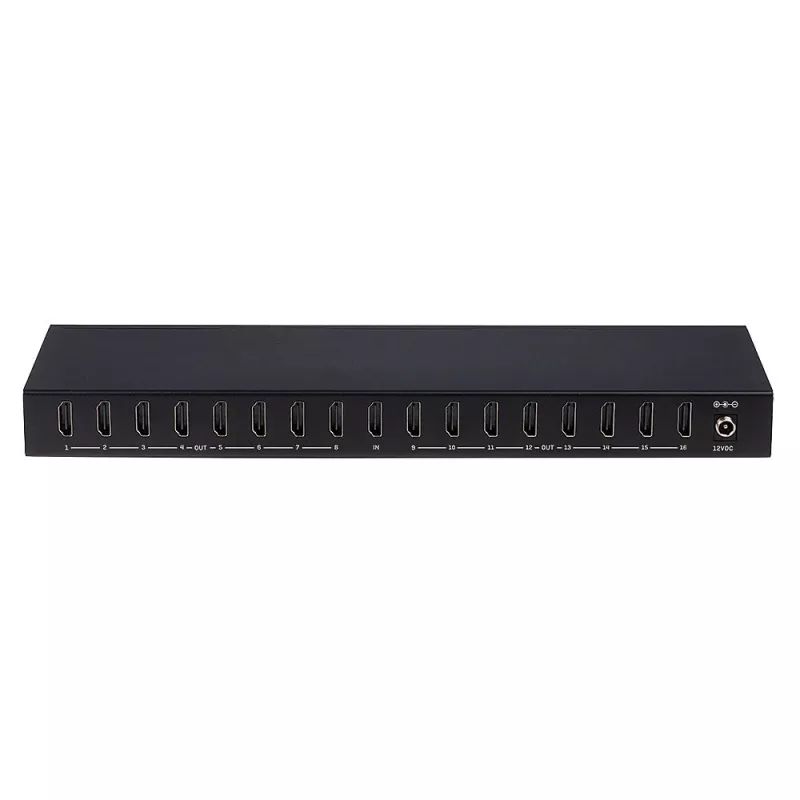

Splitter HDMI 4K60 Lindy 16 portas 16x HDMI 3840x2160 preto

The Lindy 16 Port HDMI 4K60 Splitter distributes identical HDMI content from a single source to up to 16 displays. Designed for professional video distribution, the unit supports resolutions up to 3840 x 2160 (4K) at 60 Hz and HDR, and is compatible with media players, PCs and set-top boxes. The compact black chassis and rack-friendly form factor make it suitable for retail, hospitality, conference rooms, transport hubs and residential AV installations.

Advantages

The splitter delivers full 4K@60Hz and HDR pass-through for improved colour and contrast, while HDCP 2.2 support ensures playback of protected 4K and Full HD content. A built-in EDID dip switch allows selection of optimal output resolutions for connected displays. The 16-output design provides a single-source distribution solution without the need for multiple sources or complex configuration.

Suitable for

• Digital signage in retail and shopping centres
• Hospitality displays in hotels, bars and restaurants
• Conference rooms and meeting spaces
• Transport hubs such as airports and stations
• Residential AV systems requiring multi-room mirroring

Key specifications

• Model: Lindy 16 Port HDMI 4K60 Splitter (MPN 38239)
• Maximum resolution: 3840 x 2160 (4K) @ 60 Hz
• HDR support
• HDCP 2.2 support
• Outputs: 16 HDMI outputs
• Input: 1 HDMI input
• Colour: Black
• EAN: 4002888382397

How to use

Connect a single HDMI source (for example a media player, PC or set-top box) to the splitter's HDMI input. Use HDMI cables to connect up to 16 displays to the splitter's HDMI outputs. Power the unit and turn on the source and displays. Configure the EDID dip switch to match the capabilities of the connected displays to ensure the optimal resolution is negotiated automatically.

Recommendations

For best results use high-quality HDMI cables rated for 4K@60Hz and HDR, verify that connected displays support the chosen resolution and HDR mode, and position the unit in a ventilated area to prevent overheating. When distributing protected content, ensure source and displays support HDCP 2.2.
