Splitter HDMI DeLOCK 1 x entrada HDMI para 4 x saída HDMI 4K 60 Hz

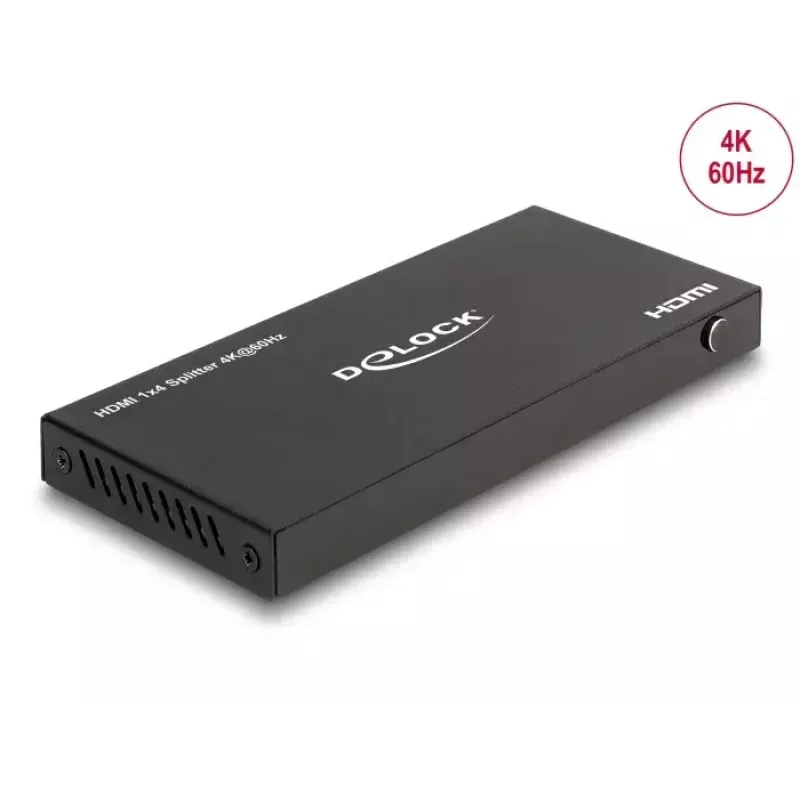

The DeLOCK HDMI Splitter receives a single HDMI signal from a PC or laptop and distributes it to four HDMI displays, allowing one HDMI connection to drive four monitors. The device supports resolutions up to 3840 x 2160 at 60 Hz and features a metal housing. A USB cable for power is included; if a free USB-A port is not available on the source, an optional external power supply is required.

Advantages

The splitter supports 4K at 60 Hz and can downscale to 1080p when a connected display does not support higher resolutions. Its metal housing adds durability and a USB power option simplifies installation. One input and four outputs make it easy to duplicate the same image across multiple screens.

Suitable for

• Presentations in meeting rooms
• Digital signage with duplicated content
• Home theater setups requiring one source to multiple displays
• Multiscreen demonstrations and trade show booths

Key specifications

• Brand: DELOCK
• Model/MPN: 18652
• EAN: 4043619186525

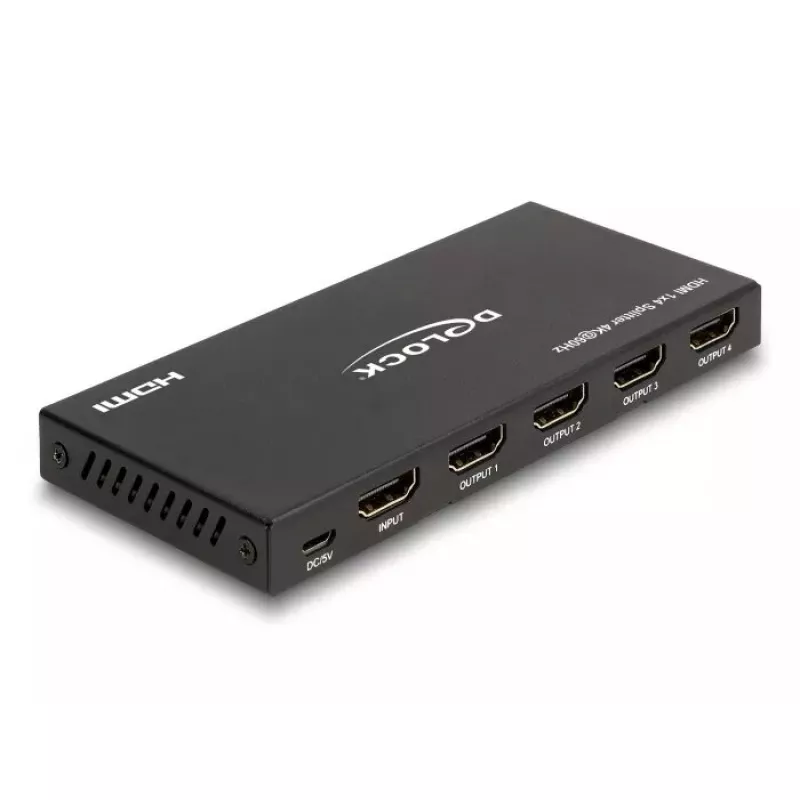

• Input: 1 x HDMI
• Outputs: 4 x HDMI
• Maximum resolution: 3840 x 2160 @ 60 Hz
• Downscaler: 4K to 1080p

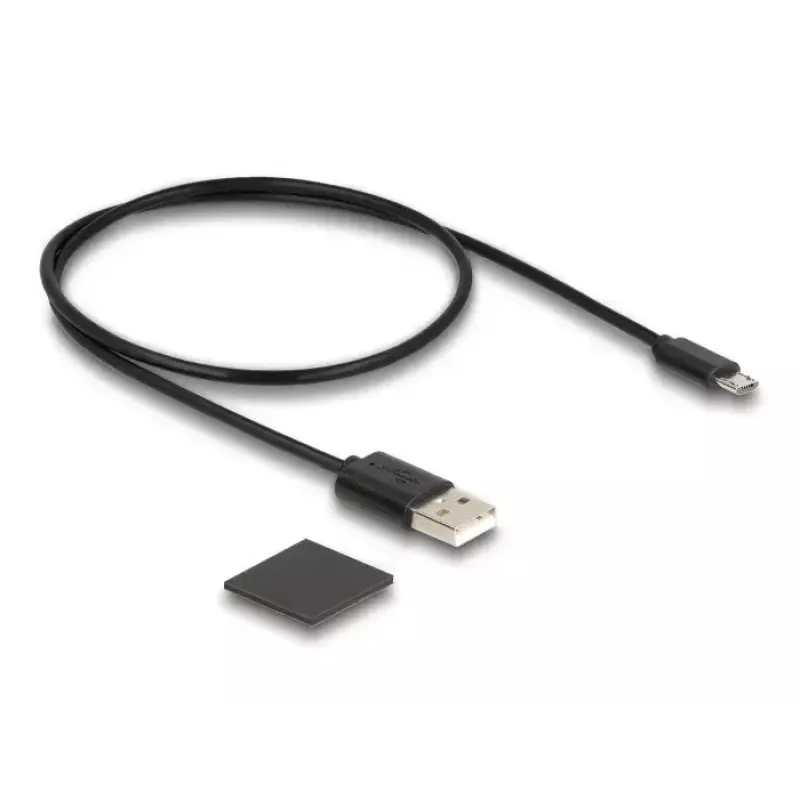

• Power: USB powered (USB cable included); external power supply optional
• Colour: Black
• Housing: Metal

How to use

Connect an HDMI source (PC or laptop) to the splitter's HDMI input. Use HDMI cables to connect each of the four HDMI outputs to the displays. Plug the included USB cable into a USB-A port on the source or another USB power source to power the splitter. If no USB-A port is available, connect an appropriate external USB power adapter. If a connected monitor cannot handle 4K, the unit will downscale the image to 1080p automatically.

Recommendations

For stable operation use high-quality HDMI cables and ensure the USB power source provides sufficient current. When using displays with different resolutions, expect all outputs to mirror the same image and resolution; use the downscaler when necessary to match lower-resolution screens.
