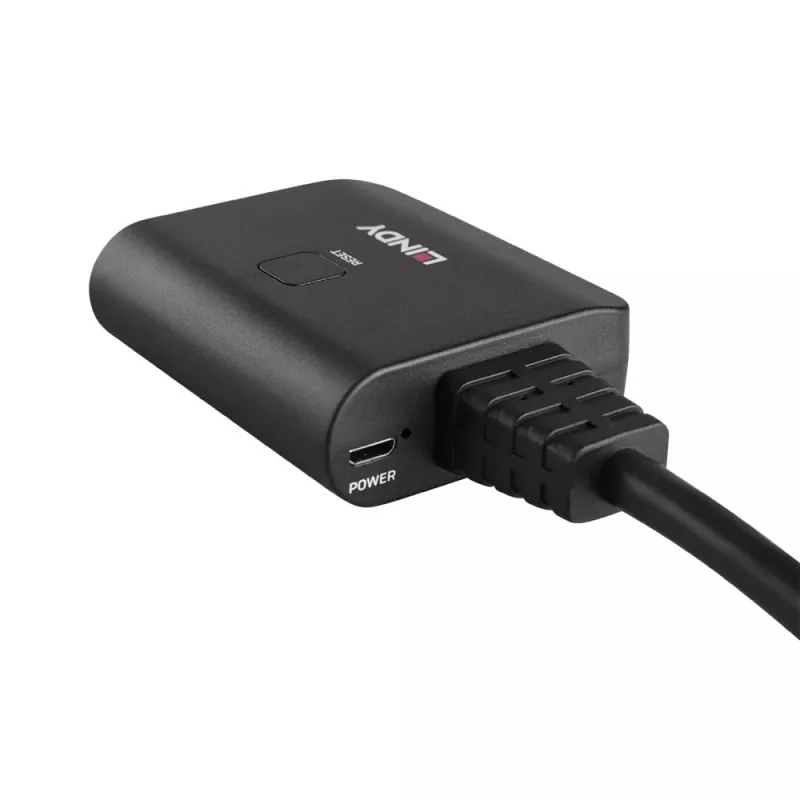

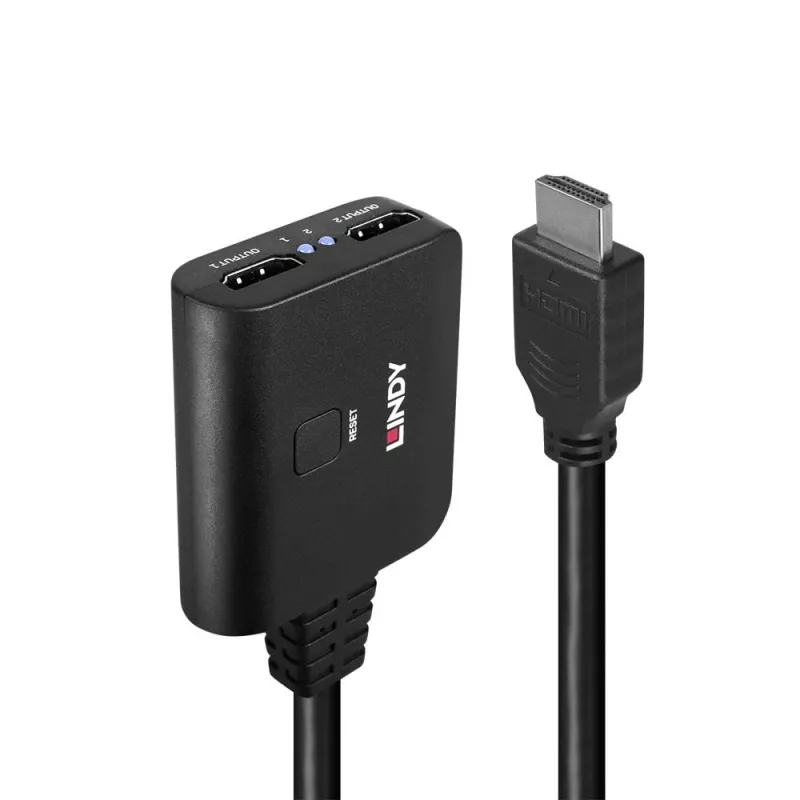

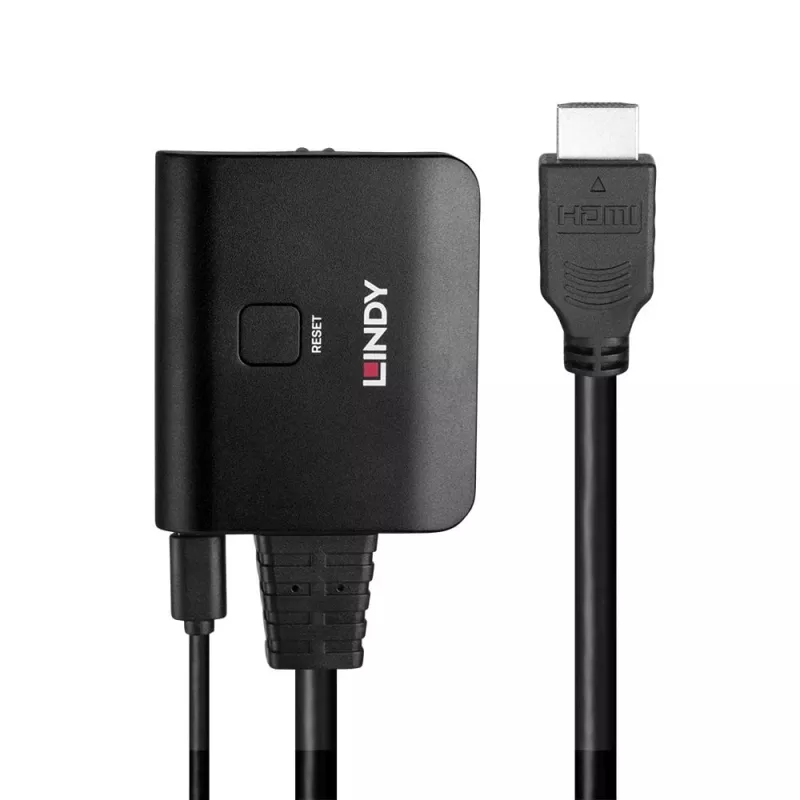

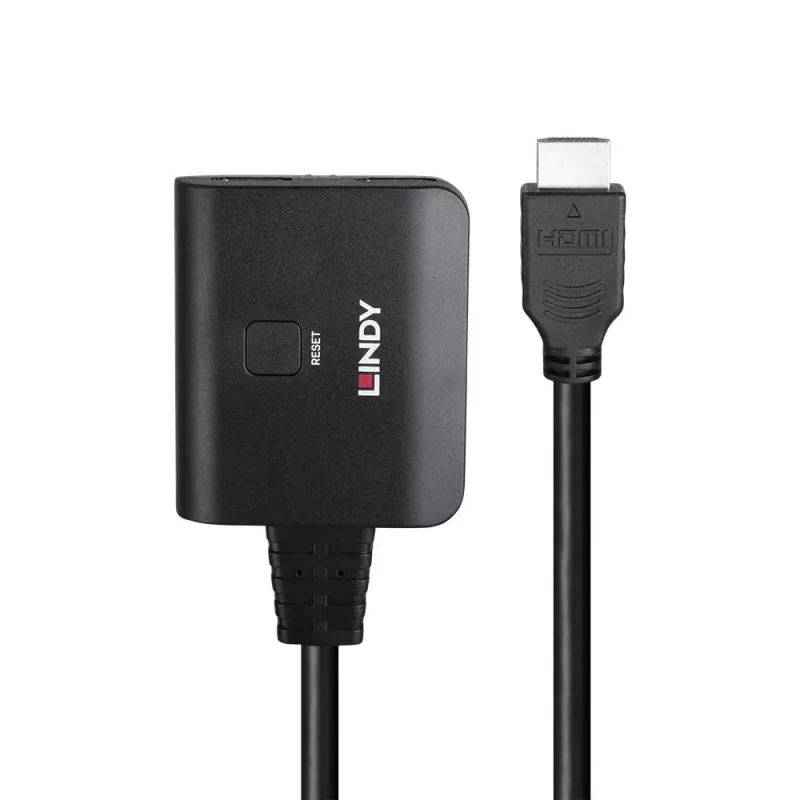

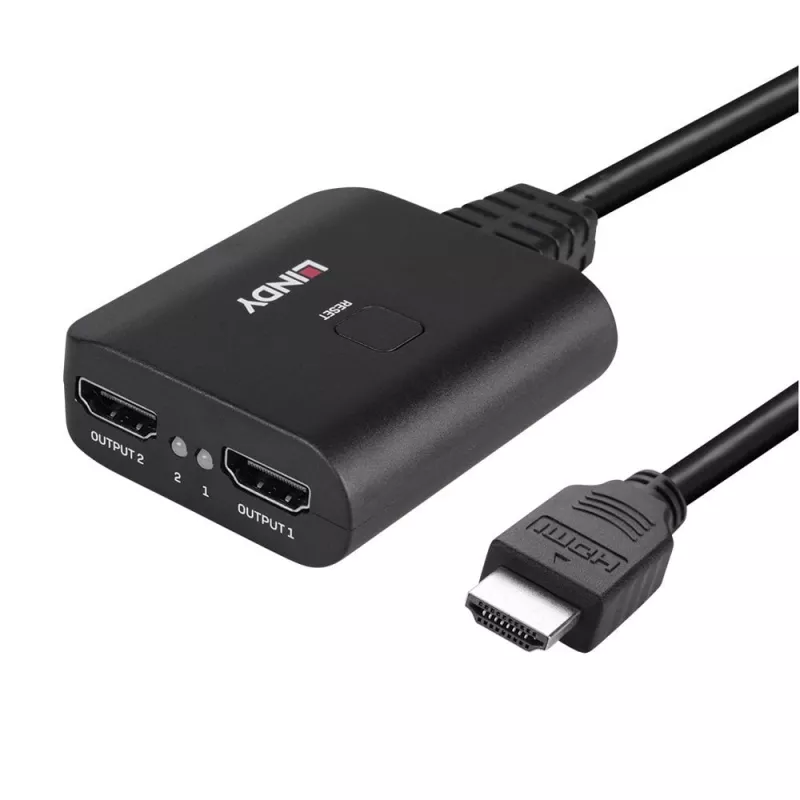

Splitter HDMI Lindy 2 portas 4K60 cabo preto 3840x2160

The Lindy 2 Port HDMI 4K60 Splitter Cable is a compact solution for distributing a single HDMI 2.0 (18G) signal to two displays. It supports resolutions up to 3840 x 2160 at 60 Hz with 4:4:4 chroma and 8‑bit colour, HDR content and HDCP 2.2, and features an integrated EDID management switch. The unit has a durable ABS housing and includes HDMI and USB cables in a small form factor (65 mm × 54.5 mm × 20.5 mm), making it suitable for discreet installation in retail, medical and hospitality environments.

Advantages

This splitter provides simultaneous output to two HDMI displays from one source while preserving 4K60 4:4:4 8‑bit image quality. HDR support enables improved brightness and contrast and a wider colour gamut. HDCP 2.2 compatibility reduces playback issues with protected 4K content from set‑top boxes, Blu‑Ray players and media streamers. The compact, robust ABS construction and built‑in EDID management switch increase installation flexibility and display compatibility.

Suitable for

• Digital signage in retail and public spaces
• Dual‑screen displays in medical and clinical facilities
• Sports bars, conference rooms and hospitality venues showing the same 4K content on two screens
• Home or office setups requiring mirrored 4K60 HDMI output

Key specifications

• Brand: Lindy
• Model / MPN: 38356
• Maximum resolution: 3840 x 2160 @ 60 Hz (4:4:4, 8‑bit)
• Video port type / quantity: HDMI, 2 ports
• HDCP: 2.2
• HDR: supported
• Housing: ABS
• Dimensions (W×D×H): 65 mm × 54.5 mm × 20.5 mm
• Weight: 0.106 kg
• Colour: Black

How to use

Connect the splitter's input cable to the source device's HDMI output, then connect each HDMI output port to the respective displays. Use the included USB cable for power if required by the unit or power it from a compatible USB power source. Configure the EDID management switch to match the displays' capabilities if any compatibility or resolution negotiation issues occur.

Recommendations

For best results, use high‑quality HDMI 2.0 cables and ensure source and display devices support 4K60 and HDCP 2.2. When deploying in public or commercial environments, verify the EDID setting on the splitter to ensure consistent output across both displays.
