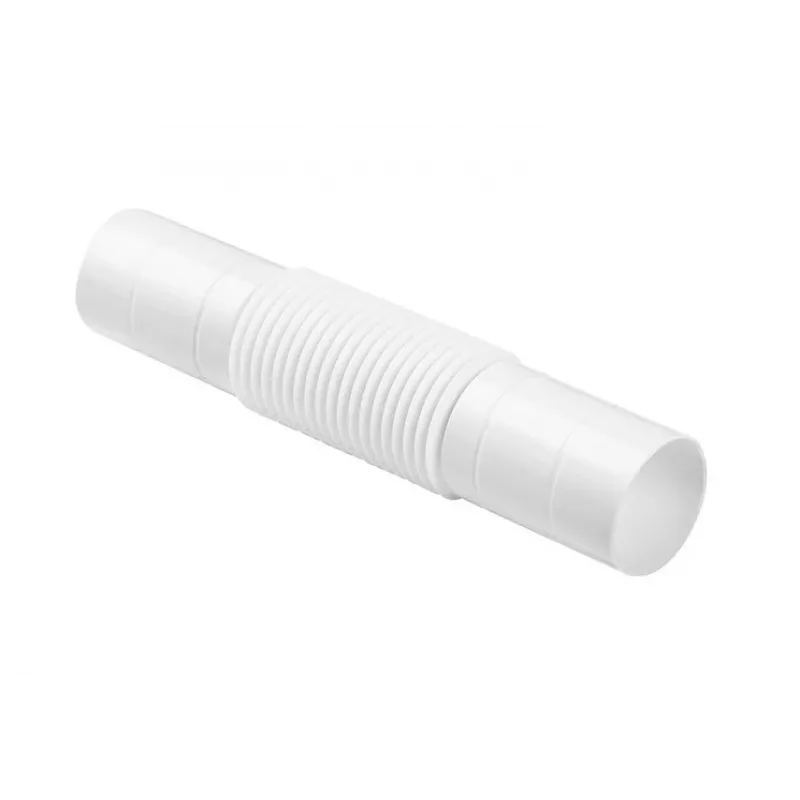

STASIŃSKI SP. Z O.O. Conector flexível reto ou angular para tubo de instalação elétrica, branco, ZCL-22 (pack de 100 unid.)

The STASIŃSKI ZCL-22 is a high-quality flexible electrical conduit connector designed for reliable and secure connections in indoor electrical installations. Made from durable PVC, this connector is self-extinguishing and halogen-free, ensuring safety and compliance with PN-EN 61386-22 standards. The pack includes 100 pieces, making it ideal for large-scale projects.

Advantages

Easy push-fit/snap-on installation saves time and labor. The connector can be used straight or angled, providing flexibility in routing conduits. Its IP40 rating protects against solid objects larger than 1 mm, suitable for indoor environments. The white color blends seamlessly with standard conduit systems.

Suitable for

• Flexible electrical conduits with 22 mm diameter
• Indoor electrical installations in residential, commercial, and industrial buildings
• Connecting conduits to junction boxes, panels, or other fittings

Key specifications

• Type: Straight/Angled connector
• Compatible conduit: Flexible electrical conduits, 22 mm diameter
• Material: PVC (Polyvinyl Chloride)
• Color: White
• Pack quantity: 100 pieces
• IP rating: IP40
• Operating temperature: -5°C to +60°C
• Flammability: Self-extinguishing
• Halogen-free: Yes
• UV resistance: No (indoor use only)
• Installation: Push-fit / Snap-on
• Standard: PN-EN 61386-22
• Resistance to compression: Light (Class 2)
• Resistance to impact: Medium (Class 3)

Recommendations

For optimal performance, use with flexible conduits of matching diameter (22 mm). Ensure the connector is fully seated and locked during installation. Suitable for indoor use only; avoid exposure to direct sunlight or extreme weather conditions.
