Striebel & John UK636N3 Quadro de distribuição encastrado 36 PLE IP30 com porta de aço

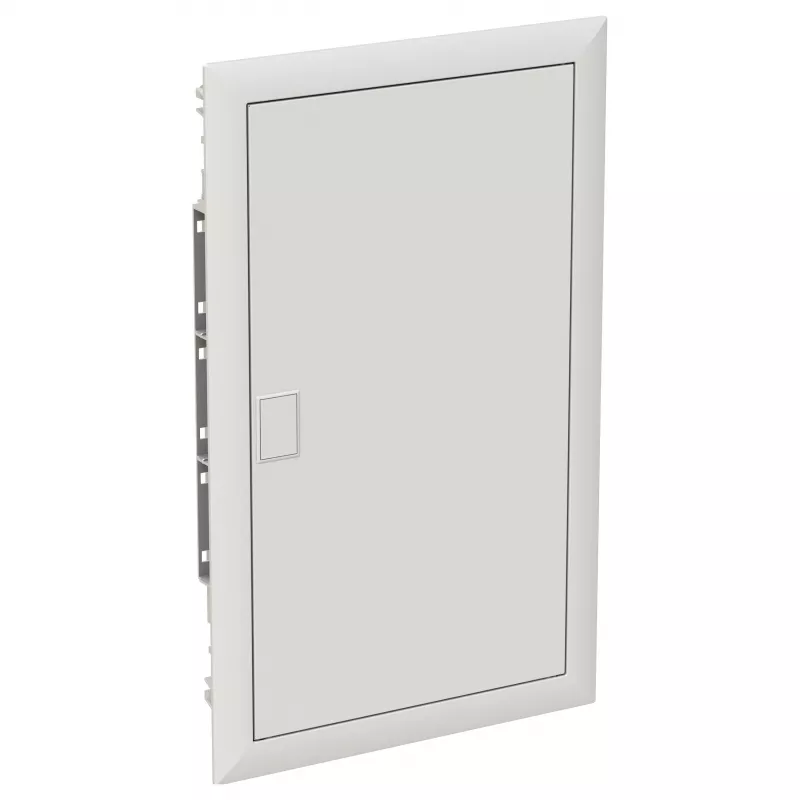

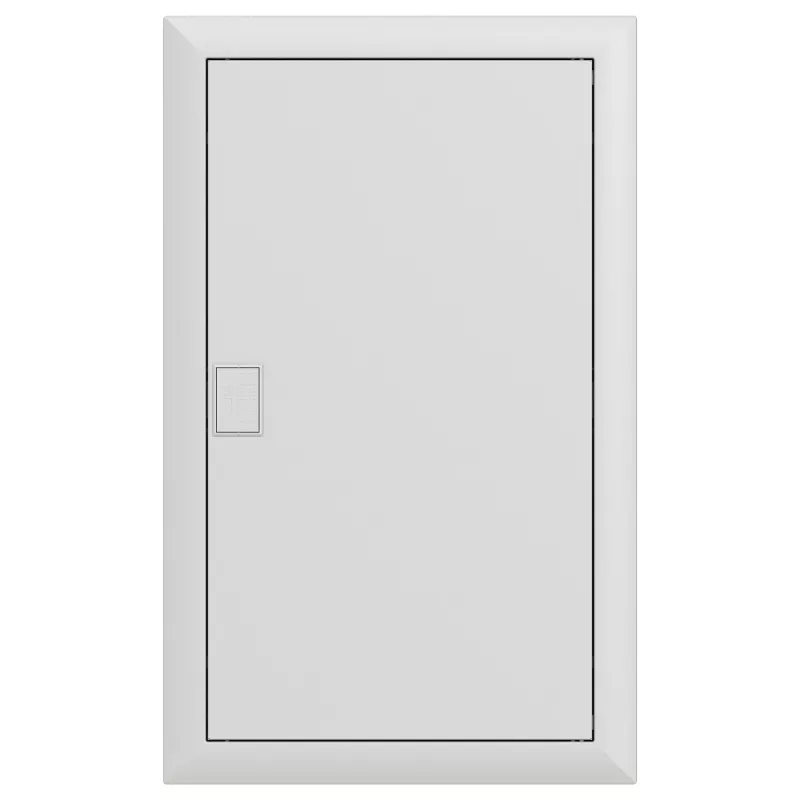

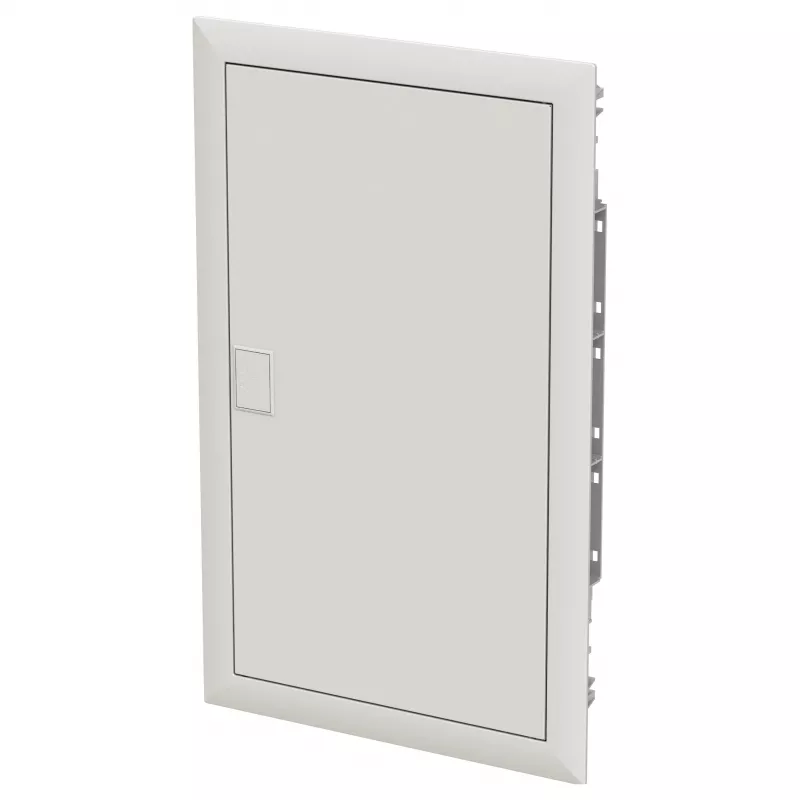

The Striebel & John UK636N3 is a high-quality flush mount (under plaster) distribution board designed for residential, commercial, and light industrial applications. With 36 module units (PLE) across 3 rows, it offers ample space for circuit protection devices. The enclosure is made of durable polystyrene with a sheet steel door, finished in white (RAL 9010). Rated IP30, it provides protection against solid objects. The board includes pre-stamped knockouts for cable entry from top, bottom, and sides, and comes with N and PE terminal blocks. Compliant with DIN VDE 0603-1 and DIN 43870-1 standards.

Advantages

Easy flush mounting for a clean installation; robust steel door with hinged design; generous 36 module capacity; high-quality materials ensure long service life; integrated N and PE terminals simplify wiring.

Suitable for

• Residential electrical distribution
• Commercial building installations
• Light industrial power distribution
• Renovation and new construction projects

Key specifications

• Mounting Type: Flush Mount (Under Plaster)
• Number of Rows: 3
• Total Module Units (PLE): 36 (12 per row)
• Ingress Protection: IP30
• Door Type: Steel Door, hinged
• Enclosure Material: Plastic (Polystyrene)
• Door Material: Sheet Steel
• Colour: White (RAL 9010)
• Rated Current (In): Up to 63 A
• Rated Voltage (Un): 230/400 V AC
• Protection Class: II (Double Insulated)
• Glow Wire Test: 850 °C
• Standards: DIN VDE 0603-1, DIN 43870-1
• Terminal Blocks Included: N and PE
• Cable Entry: Top, Bottom, Side (pre-stamped knockouts)
• Recess Dimensions (H x W x D): 605 x 323 x 90 mm

Recommendations

For optimal performance, use with Striebel & John compatible accessories. Ensure proper flush mounting and sealing to maintain IP30 rating. Suitable for use with up to 63 A main switch or RCD.
