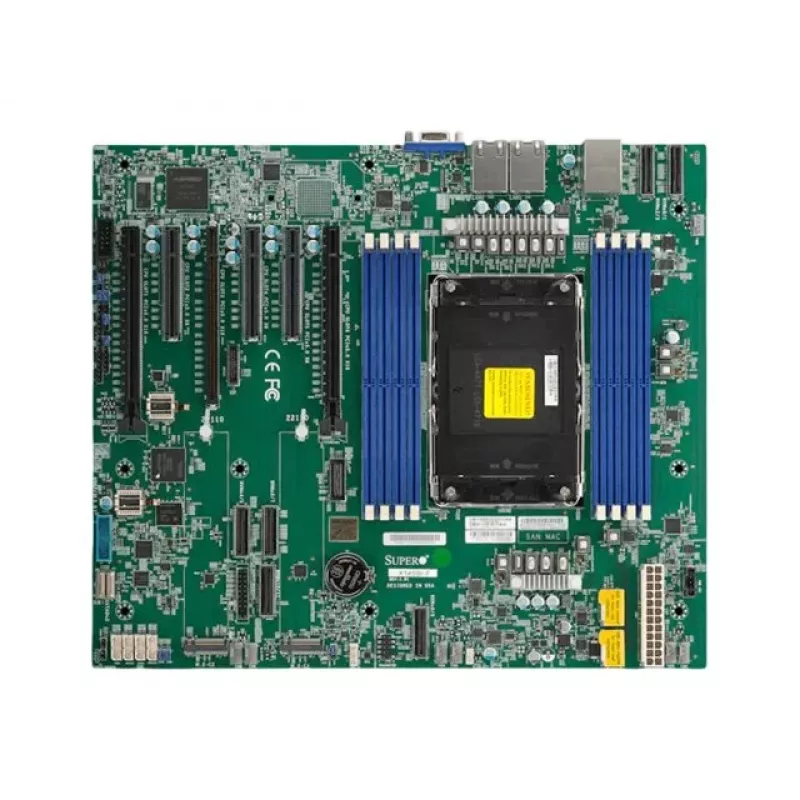

Supermicro Motherboard X14SBI-F - ATX - LGA 4710 - Intel C266 - DDR5 - Dual 1GbE - IPMI

The Supermicro X14SBI-F is a high-performance ATX server motherboard designed for Intel Xeon E-2400 series processors. Featuring the LGA 4710 socket and Intel C266 chipset, it delivers robust reliability and advanced management capabilities for enterprise and data center environments.

Advantages

With support for up to 128 GB of DDR5 ECC memory, dual 1GbE LAN ports, and comprehensive remote management via IPMI 2.0, this motherboard ensures maximum uptime and efficient system administration. The ASPEED AST2600 BMC provides dedicated KVM over IP for seamless remote control.

Suitable for

• Enterprise servers and workstations
• Data center deployments
• Virtualization and cloud computing
• High-performance computing (HPC) clusters

Key specifications

• CPU Socket: LGA 4710
• Supported CPUs: Intel Xeon E-2400 Series
• Chipset: Intel C266
• Form Factor: ATX
• Memory: 4 x DDR5 DIMM slots, up to 128 GB, ECC UDIMM, 4800 MHz
• Expansion: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4 (in x8), 1 x PCIe 4.0 x4
• Storage: 8 x SATA 6Gb/s, 2 x M.2 NVMe (PCIe 4.0 x4)
• LAN: Dual 1GbE (Intel i210)
• Management: ASPEED AST2600, IPMI 2.0 with KVM over IP
• USB: 2 x USB 3.2 Gen1, 2 x USB 2.0 (rear)
• Video: 1 x VGA
• Power: 24-pin ATX, 8-pin EPS
• RAID: Intel RSTe (0, 1, 5, 10)
• Operating Temperature: 0°C to 50°C
• Dimensions: 12" x 9.6" (30.5 cm x 24.4 cm)

Recommendations

Ideal for building a reliable server platform with remote management capabilities. Pair with Intel Xeon E-2400 processors and DDR5 ECC memory for optimal performance.
