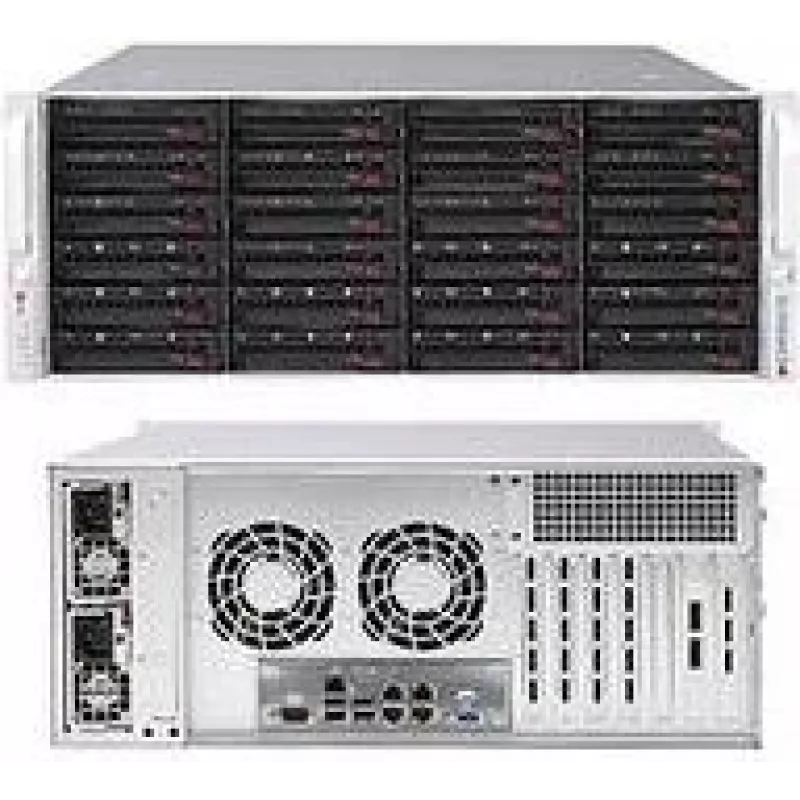

Supermicro SuperChassis 846BE1C-R1K23B Chassis de servidor rackmount 4U - 24x 3,5" Hot-Swap SAS3/SATA3 - 1200W Redundante Platinum

The Supermicro SuperChassis 846BE1C-R1K23B is a high-performance 4U rackmount server chassis designed for demanding enterprise environments. It supports E-ATX, ATX, and Micro ATX motherboards and features 24 hot-swap 3.5-inch drive bays with a SAS3 single expander backplane for exceptional storage scalability and data transfer speeds up to 12Gbps. The chassis is equipped with a 1200W (1+1) redundant platinum-level power supply, ensuring reliable and efficient operation. With three front hot-swap 80mm fans and two rear hot-swap exhaust fans, the system maintains optimal cooling even under heavy loads. The robust heavy-duty steel construction and sleek black finish make it ideal for data centers and server rooms.

Advantages

This chassis offers unparalleled storage density with 24 hot-swap bays, redundant power for maximum uptime, and efficient cooling to protect your components. Its support for multiple motherboard form factors provides flexibility for various server builds.

Suitable for

• Enterprise data centers requiring high-density storage
• Virtualization and cloud computing environments
• High-performance computing (HPC) clusters
• File and backup servers

Key specifications

• Form Factor: 4U Rackmount
• Motherboard Support: E-ATX, ATX, Micro ATX (up to 13.68" x 13")
• Drive Bays: 24x 3.5" Hot-swap SAS3/SATA3
• Backplane: BPN-SAS3-846EL1C (Single Expander, 12Gbps)
• Power Supply: 1200W (1+1) Redundant Platinum (PWS-1K23B-1R)
• Cooling: 3x 80mm Front Hot-swap, 2x 80mm Rear Hot-swap Exhaust
• Expansion Slots: 7x Full-height, Full-length
• Front I/O: 2x USB 2.0
• LED Indicators: Power, HDD Activity, Network Activity, Fan Fail, Overheat, Power Fail
• Material: Heavy-duty Steel
• Color: Black
• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Operating Humidity: 8% to 90% (non-condensing)

Recommendations

For optimal performance, pair this chassis with a Supermicro server board and compatible SAS3/SATA3 drives. Ensure adequate ventilation in your rack for best cooling results.
