Supermicro SYS-620U-TNR Plataforma de servidor rack 2U, Dual Socket LGA4189, 24x 2,5 polegadas Hot-Swap NVMe/SATA/SAS, 2x 10GbE, 2000W Redundante Titanium

The Supermicro SYS-620U-TNR is a high-performance 2U rackmount server platform designed for demanding data center and enterprise workloads. Built on the Supermicro X12DPU motherboard, it supports dual 3rd Gen Intel Xeon Scalable processors (Ice Lake) via LGA4189 sockets, providing exceptional compute power for virtualization, AI, and high-performance computing.

Advantages

This server platform offers outstanding scalability and reliability. With 32 DDR4 DIMM slots supporting up to 8TB of memory and Intel Optane Persistent Memory 200 series, it handles memory-intensive applications with ease. The 24 hot-swap 2.5" drive bays with hybrid backplane support NVMe, SATA, and SAS drives, enabling flexible storage configurations. Dual 10GbE LAN ports ensure high-speed network connectivity, while the 2000W redundant Titanium-level power supplies guarantee efficiency and uptime.

Suitable for

• Enterprise data centers requiring high-density compute and storage
• Virtualized environments (VMware, Hyper-V)
• AI and machine learning workloads with GPU support (up to 8 double-width GPUs)
• High-performance computing clusters
• Cloud and edge computing deployments

Key specifications

• Form Factor: 2U Rackmount
• Processor: Dual Socket LGA4189, 3rd Gen Intel Xeon Scalable (Ice Lake)
• Chipset: Intel C621A
• Memory: 32x DDR4 DIMM slots, up to 8TB DDR4-3200MHz ECC RDIMM/LRDIMM, Intel Optane PMem 200 series
• Drive Bays: 24x 2.5" Hot-swap NVMe/SATA/SAS (hybrid backplane)
• PCIe Expansion: 8x PCI-E 4.0 x16 (double-width GPU support)
• Network: 2x 10GbE LAN (Intel X710-AT2)
• Power Supply: 2000W Redundant Titanium Level
• Management: IPMI 2.0 with KVM over IP, dedicated LAN
• Cooling: 8x Heavy duty hot-swap fans
• Front I/O: 2x USB 3.0
• Rear I/O: 2x USB 3.0, 1x VGA, 1x COM, 2x 10GbE LAN, 1x dedicated IPMI LAN

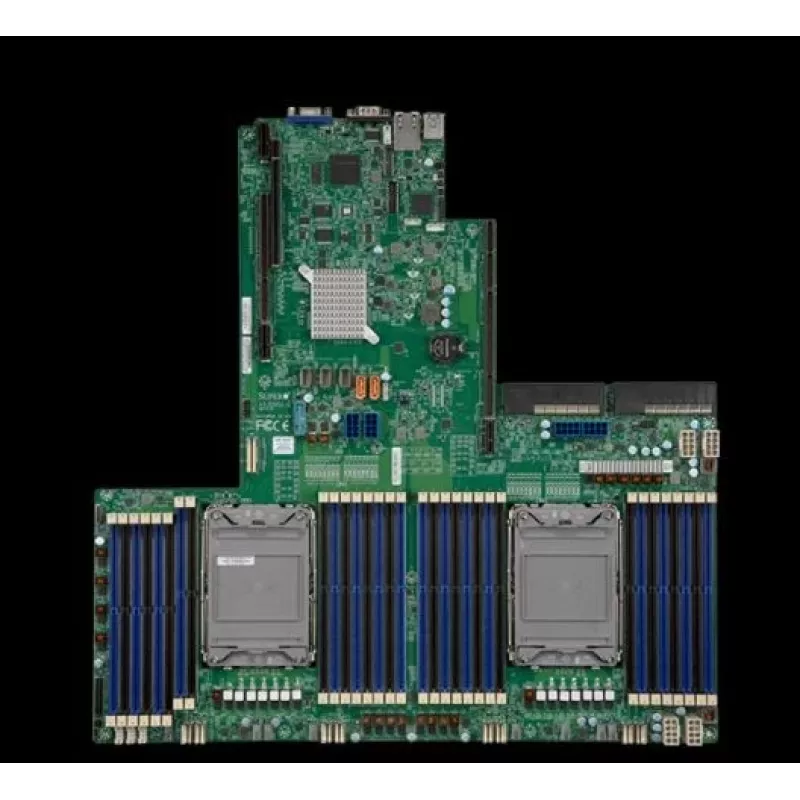

• Motherboard: Supermicro X12DPU
• Chassis: Supermicro CSE-620U-R2K08BP

Recommendations

This server platform is ideal for organizations seeking a robust, scalable foundation for critical applications. Its support for the latest Intel Xeon Scalable processors and high memory capacity makes it future-proof for evolving workloads. For optimal performance, pair with compatible CPUs, memory, and storage drives.
