Suporte angular Extralink suporte de parede L200 Fi 50mm 200mm aço galvanizado

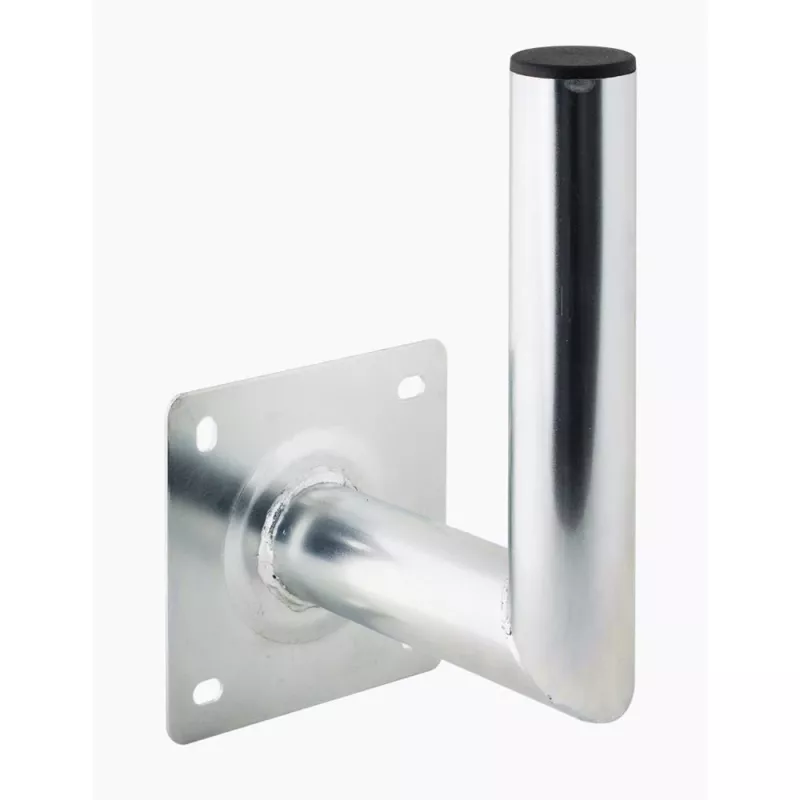

Angle bracket Extralink Wall mount L200 Fi 50mm 200mm is a galvanized steel wall bracket designed to fix satellite and terrestrial antennas to facades, walls and other flat surfaces. The corrosion-resistant steel construction provides stable support for antennas and ensures long-term durability. The bracket is compatible with 50 mm diameter mounts and has an overall arm length of 200 mm.

Advantages

The Extralink L200 Fi bracket is made of galvanized steel for increased resistance to rust and weathering. Its simple L-shaped design facilitates straightforward installation on masonry and other solid surfaces. The bracket supports typical small antenna loads and provides a reliable, low-maintenance mounting solution.

Suitable for

• Mounting satellite or terrestrial antennas on building facades
• Attaching antennas to exterior walls and masonry
• Small installations where a 50 mm pipe/socket fit is required

Key specifications

• Brand: Extralink
• Model / MPN: EX.6747
• EAN: 5902560366747
• Material: Galvanized steel
• Arm length: 200 mm
• Holder height: 250 mm (brickwork holder)
• Tube/fit diameter: 50 mm
• Sheet thickness: 1.5 mm
• Maximum recommended load: 8 kg

How to use

Mark the desired mounting location on the wall or facade ensuring the surface is load-bearing. Fix the brickwork holder portion of the L-shaped bracket to the wall using appropriate anchors or bolts for the substrate. Extend the 200 mm arm and secure the antenna mast into the 50 mm socket, then fasten with suitable clamps or screws. Verify the bracket and antenna are level and tighten all fasteners before completing the installation.

Recommendations

For long-term performance, use corrosion-resistant fasteners and check mounting points periodically. Do not exceed the specified maximum load and ensure correct anchor type for the wall material.
